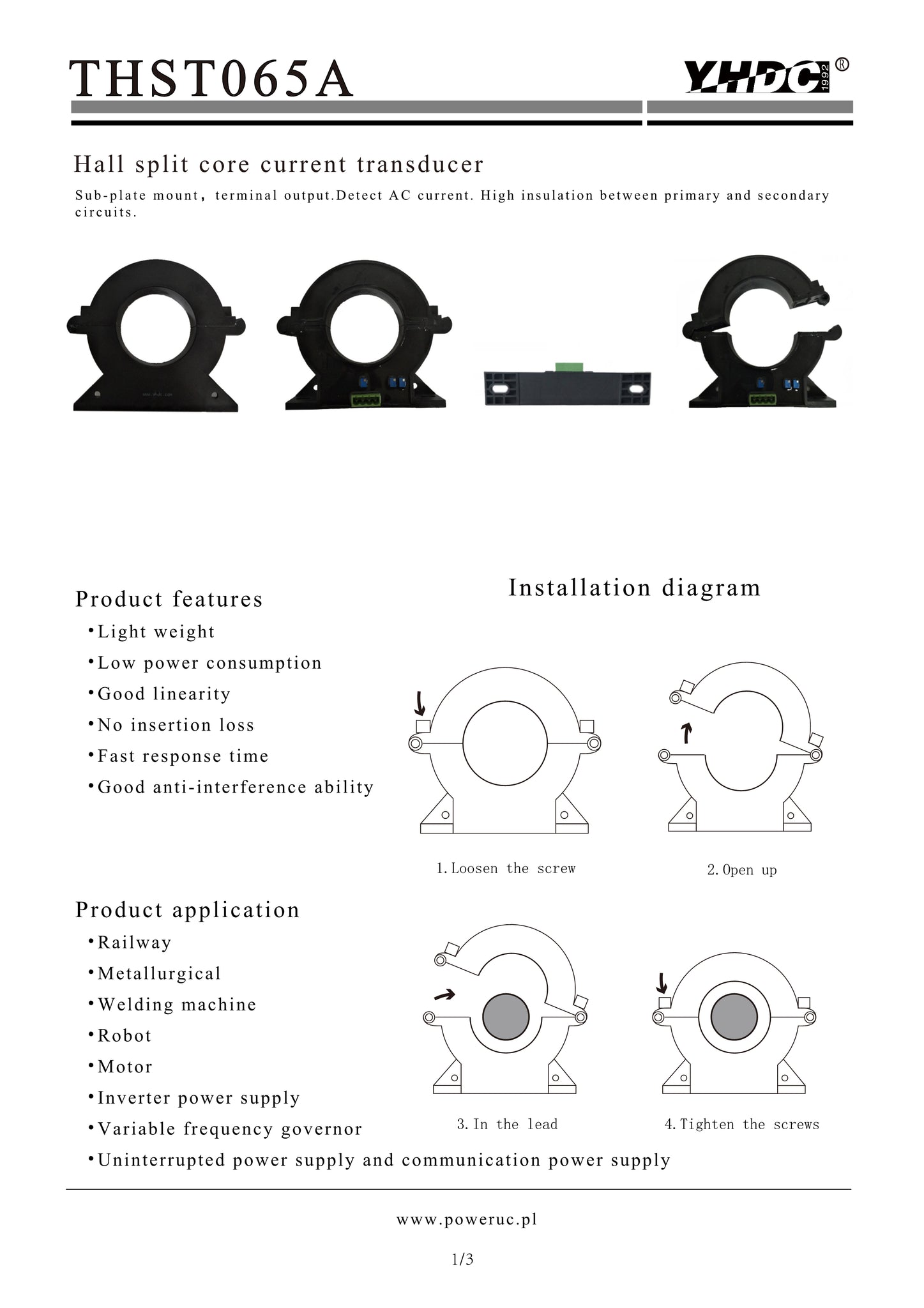

AC current transducer THST065A Rated input 300A 500A 600A 800A 1000A 1200A 1500A Rated output 0-20mA;4-20mA ;0-5V;1-5V;0-10V
Circle plug terminal output, sub-plate mounting type;The faulty wiring can lead to product damage,The output is linear with primary test current,and the output signal can be directly
enter automatic control equipment or PLC port.
Technical index:
Flame resistance: UL94-V0
Operating temperature: -10℃~+70℃
Storage temperature: -25℃~+70℃
Dielectric strength: 3KV 50Hz 1min
Overload capacity:8 times
Waterproof level: IP00(Terminal needs to be sealing treatment of IP44)

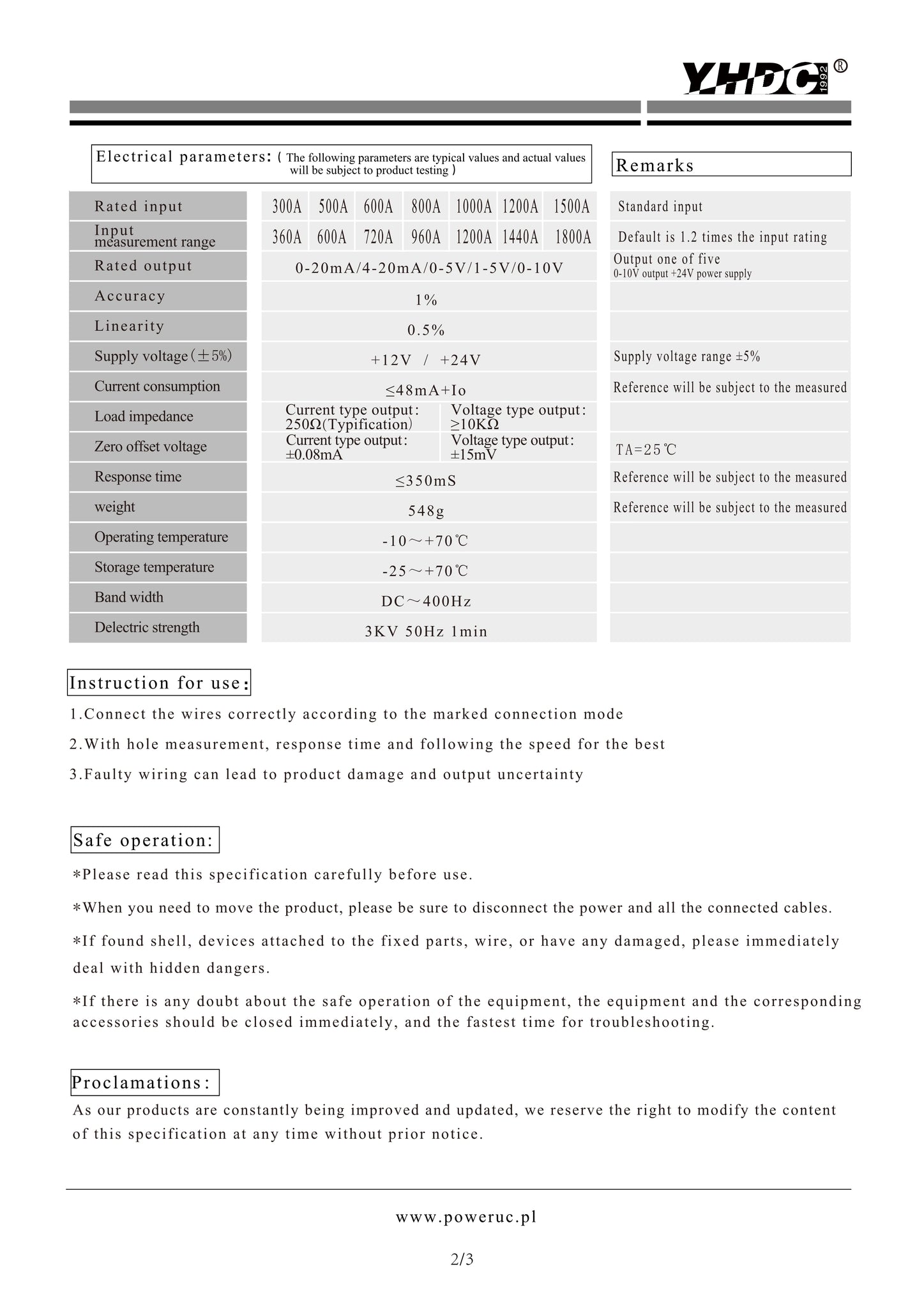

Electric parameters:
DOWNLOAD
