Hall open loop current sensor HKS05D Rated input ±10A ±20A ±30A ±50A ±60A ±80A Rated output 2.5V±0.625V - PowerUC

Hall open loop current sensor HKS05D Rated input ±10A ±20A ±30A ±50A ±60A ±80A Rated output 2.5V±0.625V

PowerUC

Shipping calculated at checkout.
Only 0 left!
Will be in stock after

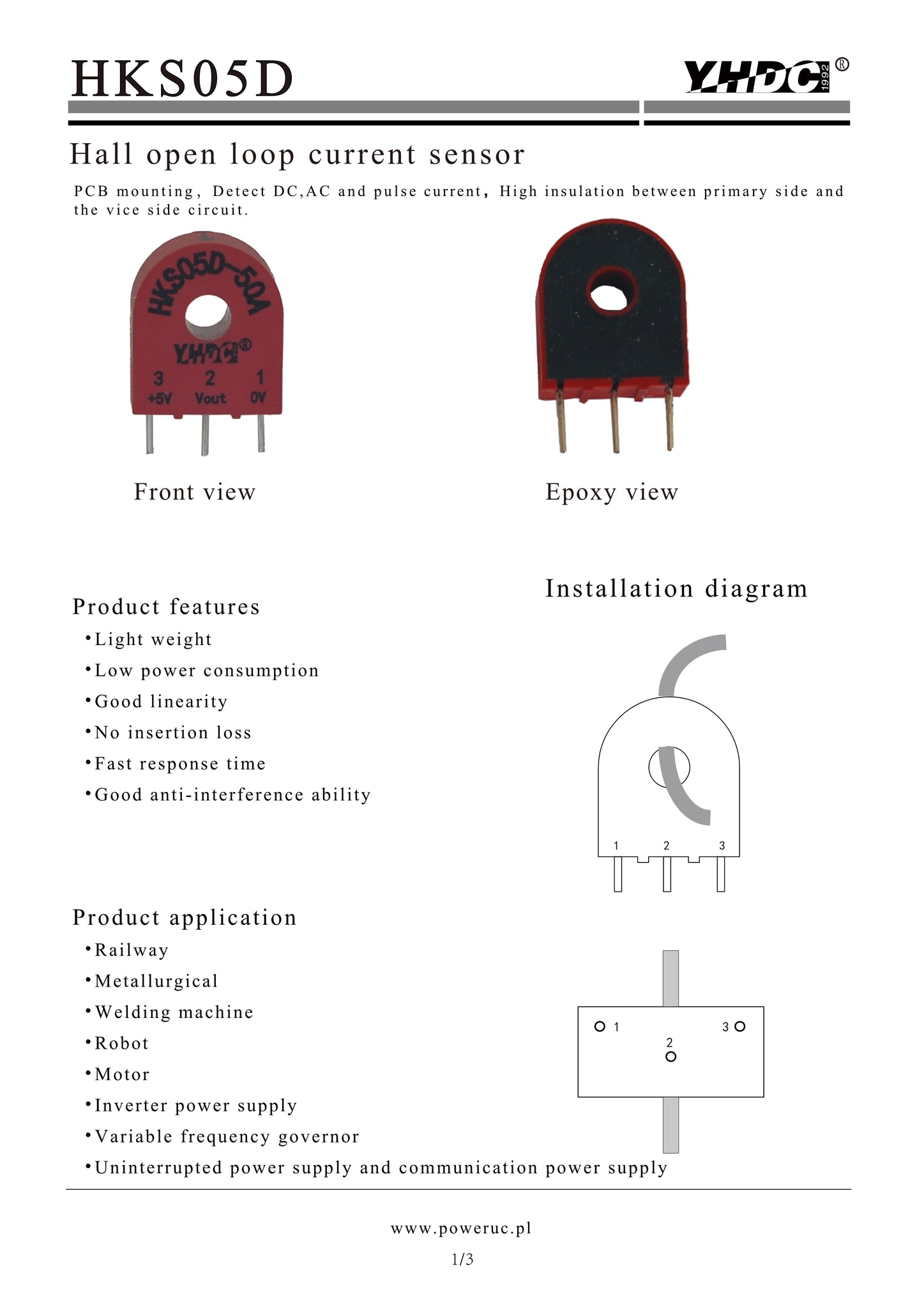

Model:HKS05D

Characteristics:

Open loop hall circuit, sub-plate installation, single or double supply voltage.  Detect DC, AC and pulse current.

Technical Indicators:
Flame resistance: UL94-V0
Working temperature: -10°C ~ +70°C
Storage temperature: +25°C ~ +70°C
Bandwidth: DC ~ 100KHz
Dielectric strength: 2.5KV 50Hz 1min

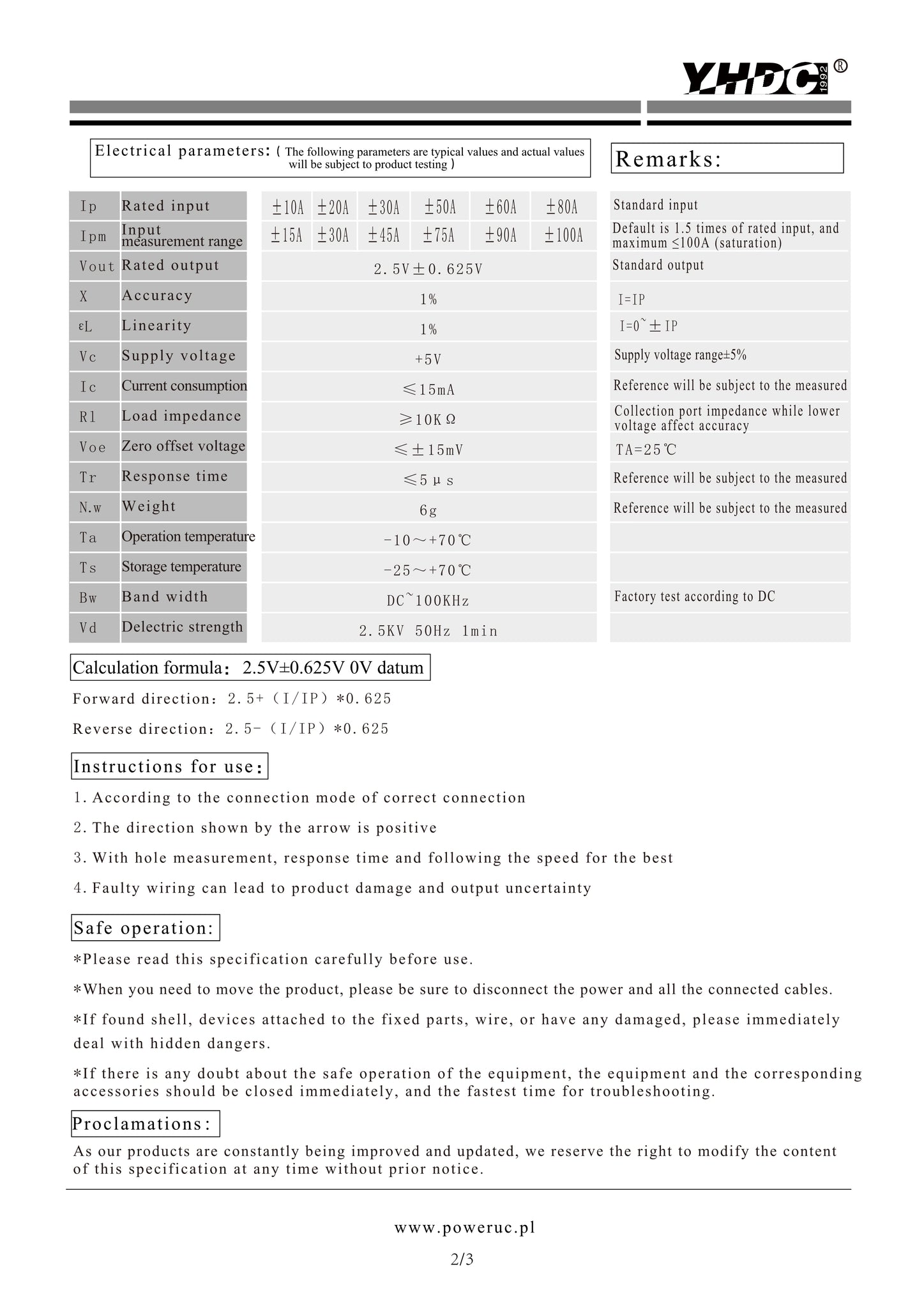

Electrical Parameters:

DOWNLOAD
