Hall closed loop variable range current sensor HTS15(-3) Rated input ±5A/7.5A/15A Rated output 2.5±0.625V/1.65±0.625V - PowerUC

Hall closed loop variable range current sensor HTS15(-3) Rated input ±5A/7.5A/15A Rated output 2.5±0.625V/1.65±0.625V

PowerUC

  • €3,55
    Unit price per
Shipping calculated at checkout.

Only 10 left!

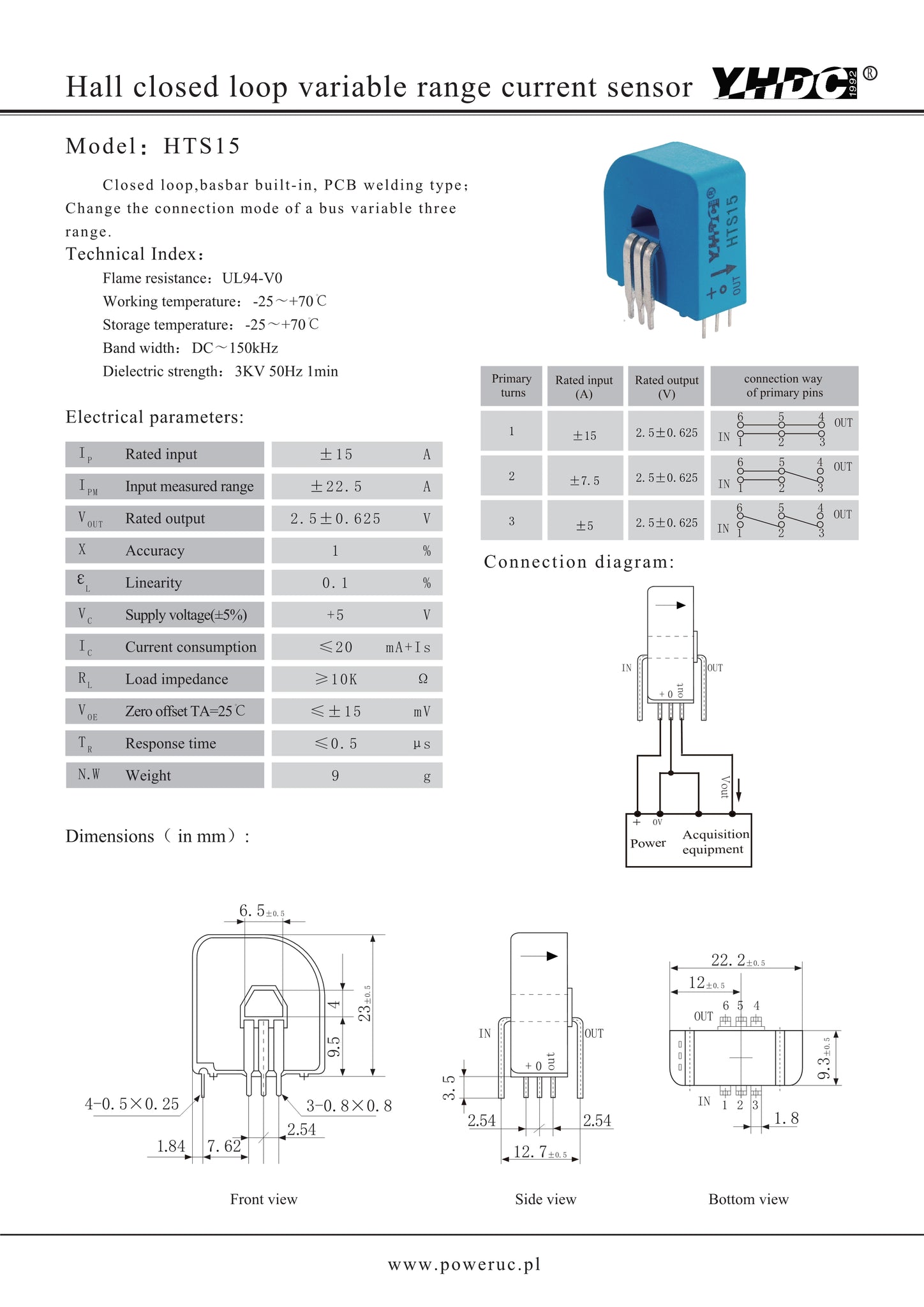

Model:HTS15(-3)

Closed loop,basbar built-in, PCB mounting type; Change the connection way of primary busbar can get three variable range.
Technical index:

Flame resistance:UL94-V0

Operating temperature:-25~+70℃

Storage temperature:-40~+100℃

Bandwidth:DC~150kHz

Dielectric strength:3KV 50Hz 1min
Electric parameters:
