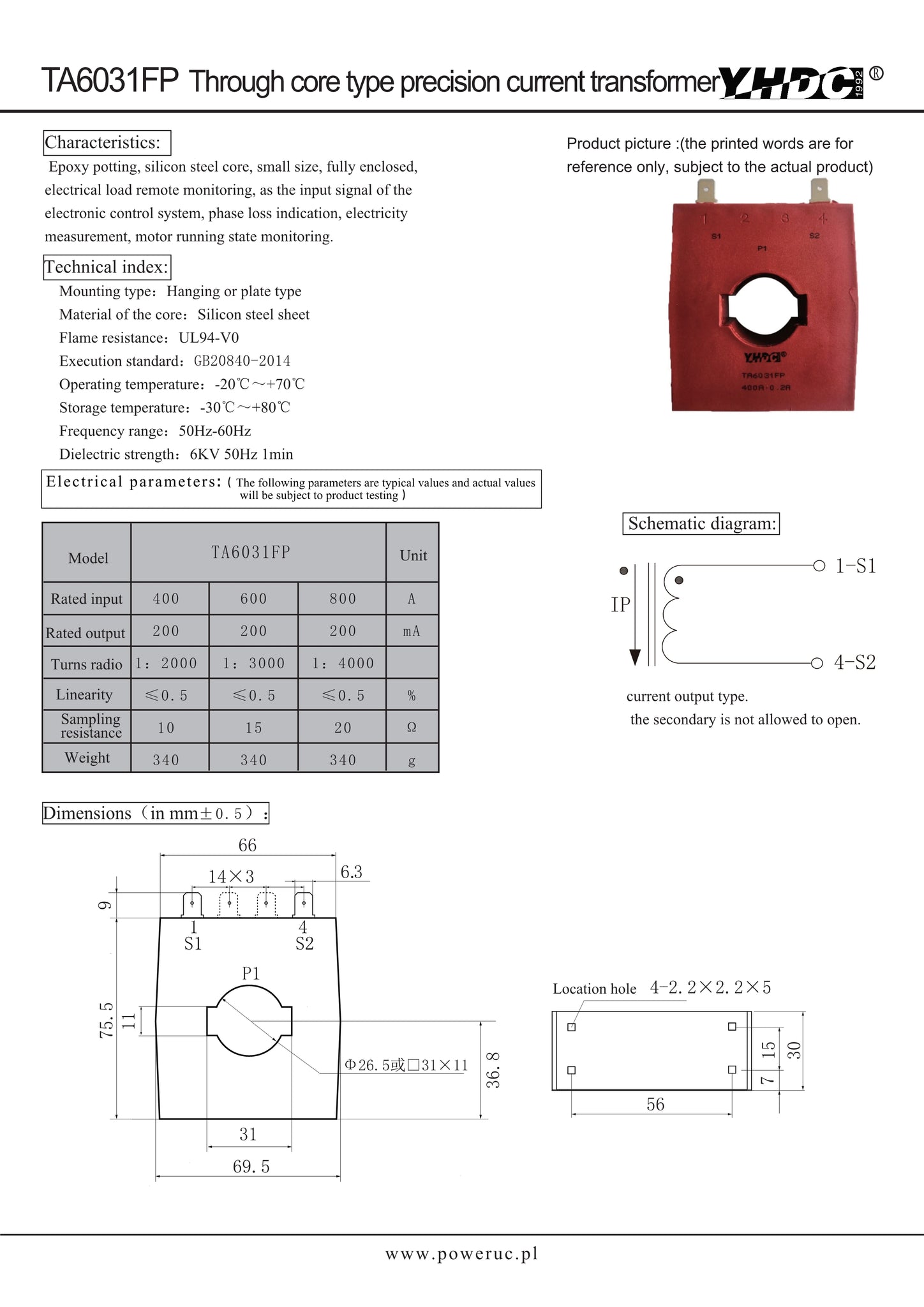

Electronic power general current transformer TA6031FP - 400A/0.2A 600A/0.2A 800A/0.2A
Characteristics:
Epoxy potting, silicon steel core, small size, fully enclosed, electrical load remote monitoring, as the input signal of the electronic control system, phase loss indication, electricity measurement, motor running state monitoring.
Technical Index:
Suspended mounting or sub-plate mounting
Material of the core: Silicon steel sheet
Flame resistance: UL94-V0
Execution standard: GB20840-2014
Operating temperature: -20°C ~ +70°C
Storage temperature: -30°C ~ +80°C
Frequency range: 50Hz - 60Hz
Dielectric strength: 6KV 50Hz 1min
