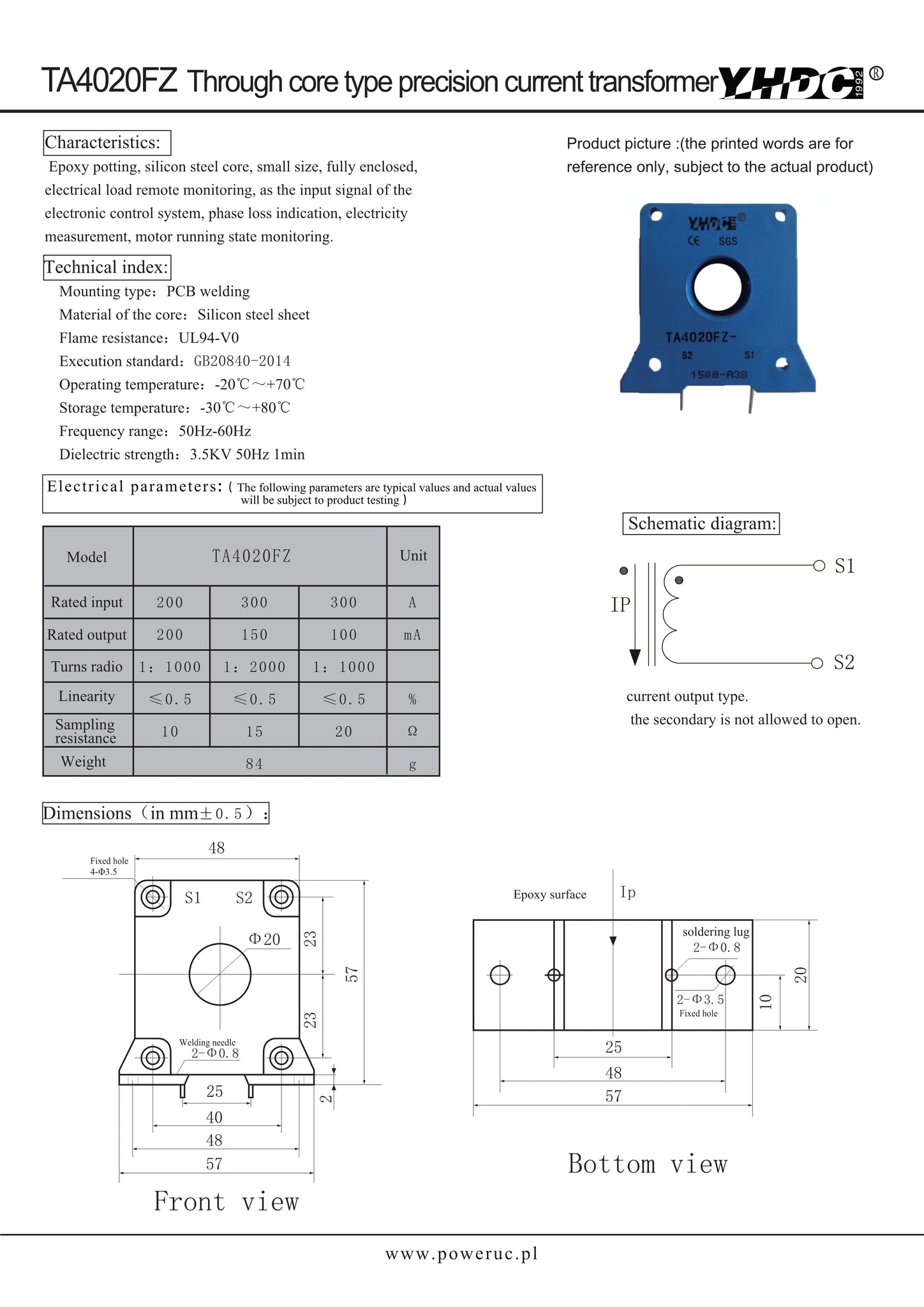

Electronic power general current transformer TA4020FZ - 200A/200mA   300A/150mA   300A/100mA

Electronic power general current transformer TA4020FZ - 200A/200mA 300A/150mA 300A/100mA

PowerUC

  • €3,13
    Unit price per
Shipping calculated at checkout.

Only 0 left!
Will be in stock after

Characteristics:

Epoxy potting, silicon steel core, small size, fully enclosed, electrical load remote monitoring, as the input signal of the electronic control system, phase loss indication, electricity measurement, motor running state monitoring.

Technical Index:
Mounting type:PCB welding
Material of the core: Silicon steel sheet
Flame resistance: UL94-V0
Execution standard: GB20840-2014
Operating temperature: -20°C ~ +70°C
Storage temperature: -30°C ~ +80°C
Frequency range:50Hz - 60Hz
Dielectric strength: 3.5KV 50Hz 1min

Electrical Parameters:

DOWNLOAD
