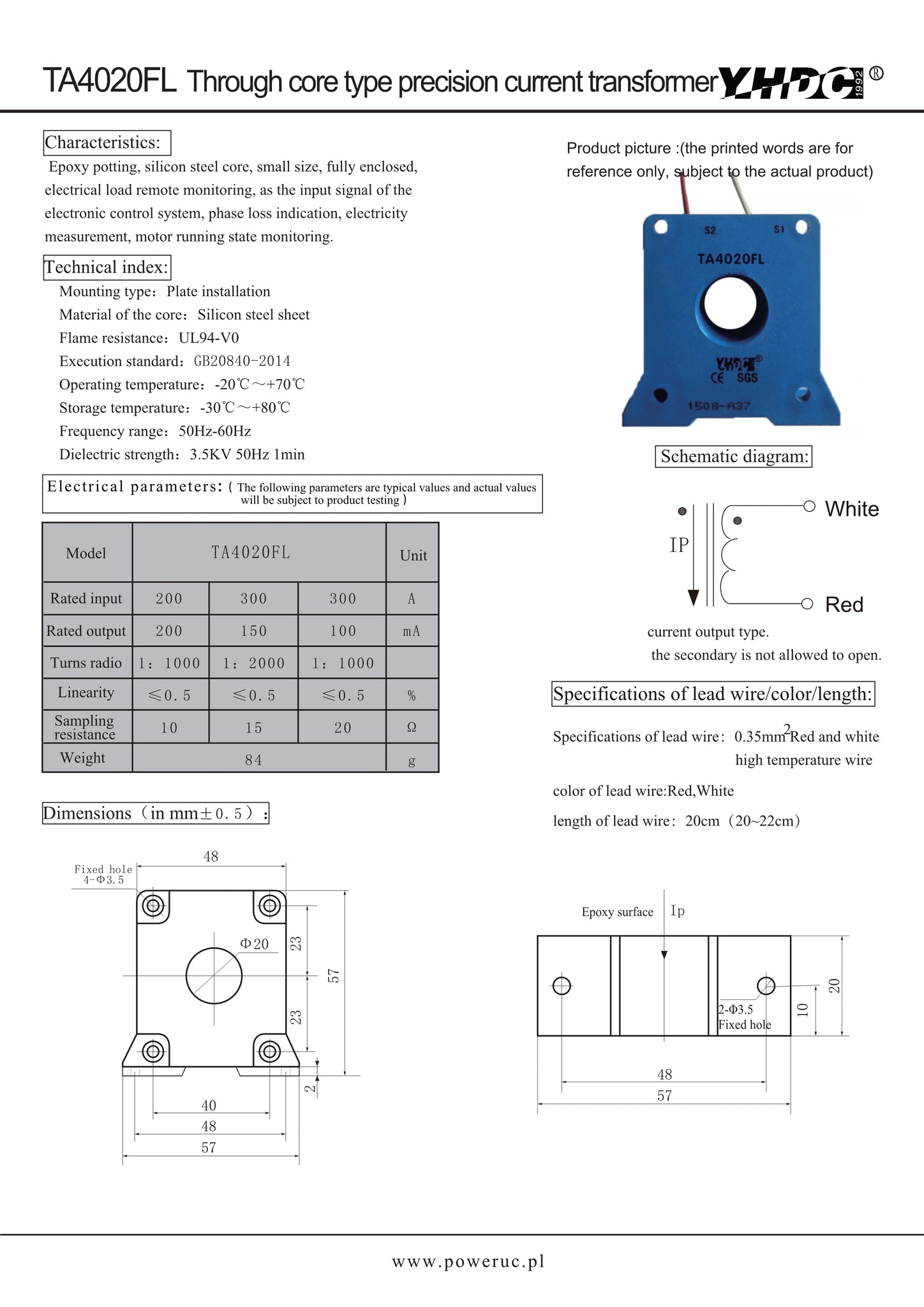

Electronic power general current transformer TA4020FL - 200A/200mA 300A/150mA 300A/100mA
Characteristics:
Vacuum epoxy encapsulated, silicon steel sheet core, small size, fully enclosed, electrical load remote monitoring, as the input signal of the electronic control system, phase loss indication, electricity measurement, motor running state monitoring.
Technical Index:
Mounting type:Sub-plate mounting
Material of the core: Silicon steel sheet
Flame resistance: UL94-V0
Execution standard: GB20840-2014
Operating temperature: -20°C ~ +70°C
Storage temperature: -30°C ~ +80°C
Frequency range:50Hz - 60Hz
Dielectric strength: 3.5KV 50Hz 1min
