Electronic power general current transformer TA3015FL - 150A/150mA 200A/100mA 200A/200mA

Electronic power general current transformer TA3015FL - 150A/150mA 200A/100mA 200A/200mA

PowerUC

Shipping calculated at checkout.
Only 1 left!

Characteristics:

Epoxy potting, silicon steel core, small size, fully enclosed, electrical load remote monitoring, as the input signal of the electronic control system, phase loss indication, electricity measurement, motor running state monitoring

Technical Index:
Mounting type: Plate installation
Material of the core: Silicon steel sheet
Flame resistance: UL94-V0
Execution standard: GB20840-2014
Operating temperature: -20°C ~ +70°C
Storage temperature: -30°C ~ +80°C
Frequency range: 50Hz - 60Hz
Dielectric strength: 3.5KV 50Hz 1min

Electrical Parameters:

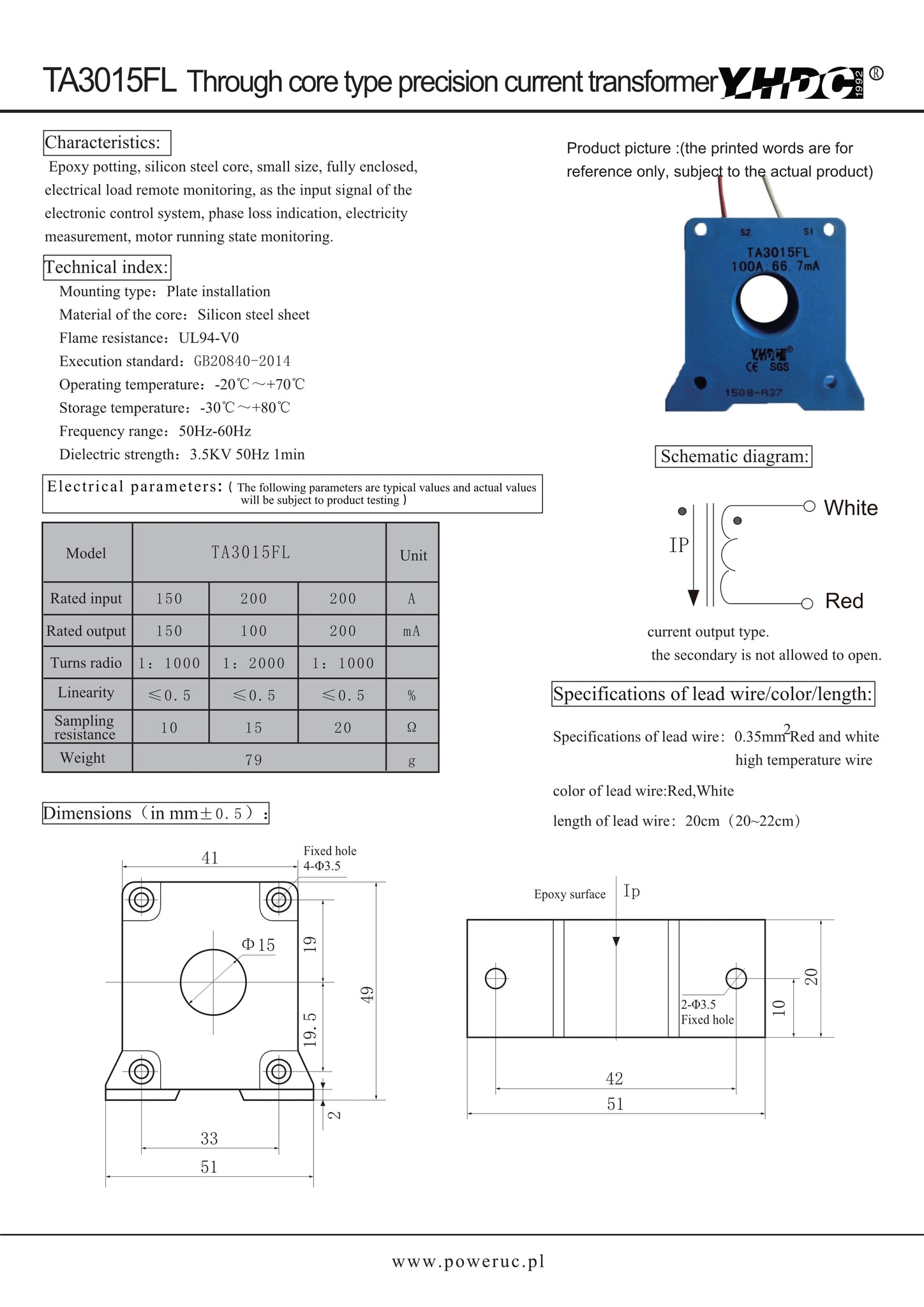

DOWNLOAD-TA3015FL
