Electronic power general current transformer TA2035FL - 0-400A/0-0.4A   0-500A/0-0.25A   0-600A/0-0.2A - PowerUC

Electronic power general current transformer TA2035FL - 0-400A/0-0.4A 0-500A/0-0.25A 0-600A/0-0.2A

PowerUC

  • €4,04
    Unit price per
Shipping calculated at checkout.

Only 1 left!

Characteristics:
Vacuum epoxy resin encapsulated, silicon steel sheet core, high overload ability.

Technical Index:
Mounting type: Plate type
Material of the core: Silicon steel sheet
Flame resistance: UL94-V0
Execution standard: GB1208-2006
Operating temperature: -20°C ~ +75°C
Storage temperature: -30°C ~ +80°C
Frequency range: 50Hz - 60Hz
Dielectric strength: ≥3.5KV 50Hz 1min

Electrical Parameters:

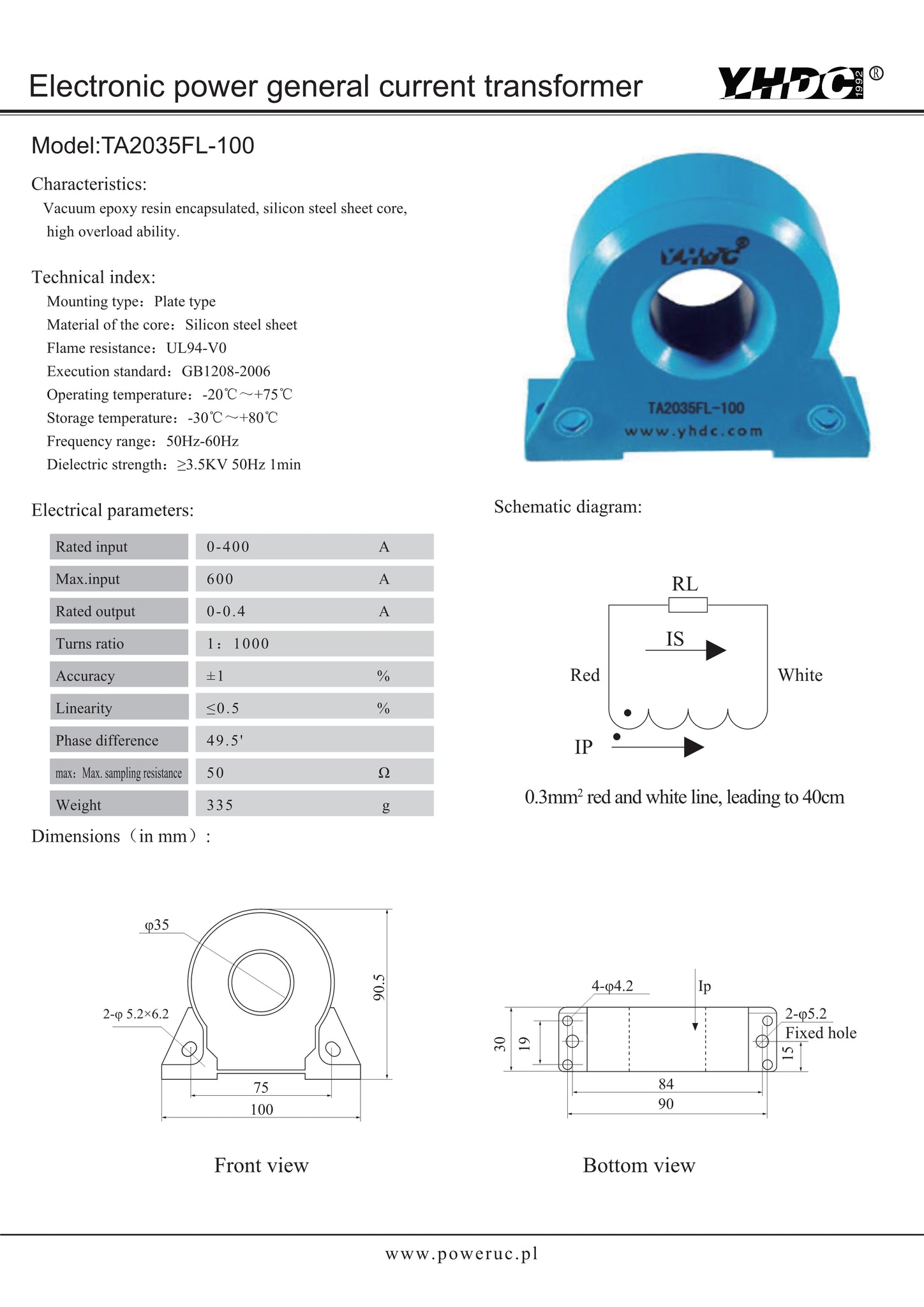

DOWNLOAD-TA2035FL-100

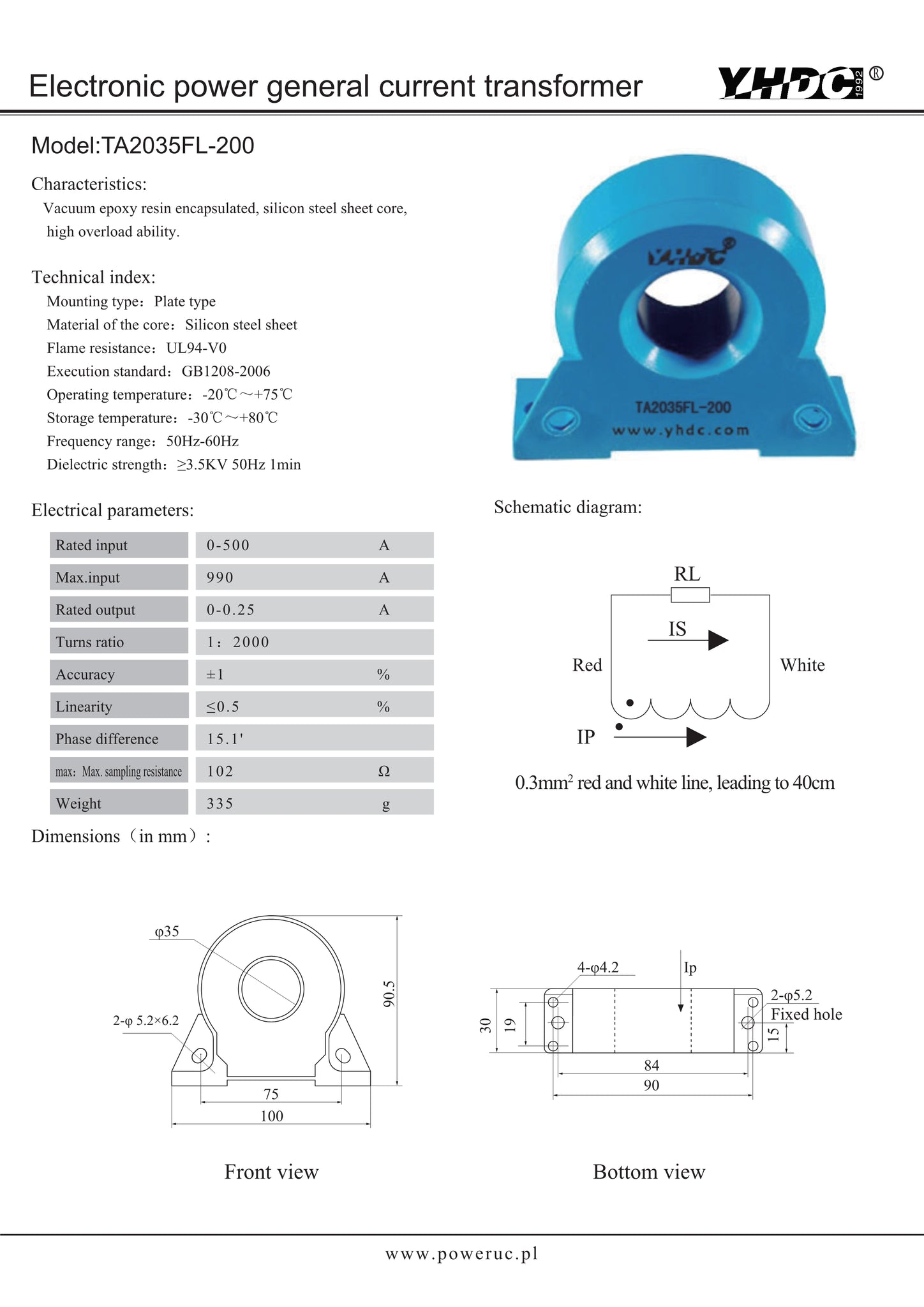

DOWNLOAD-TA2035FL-200

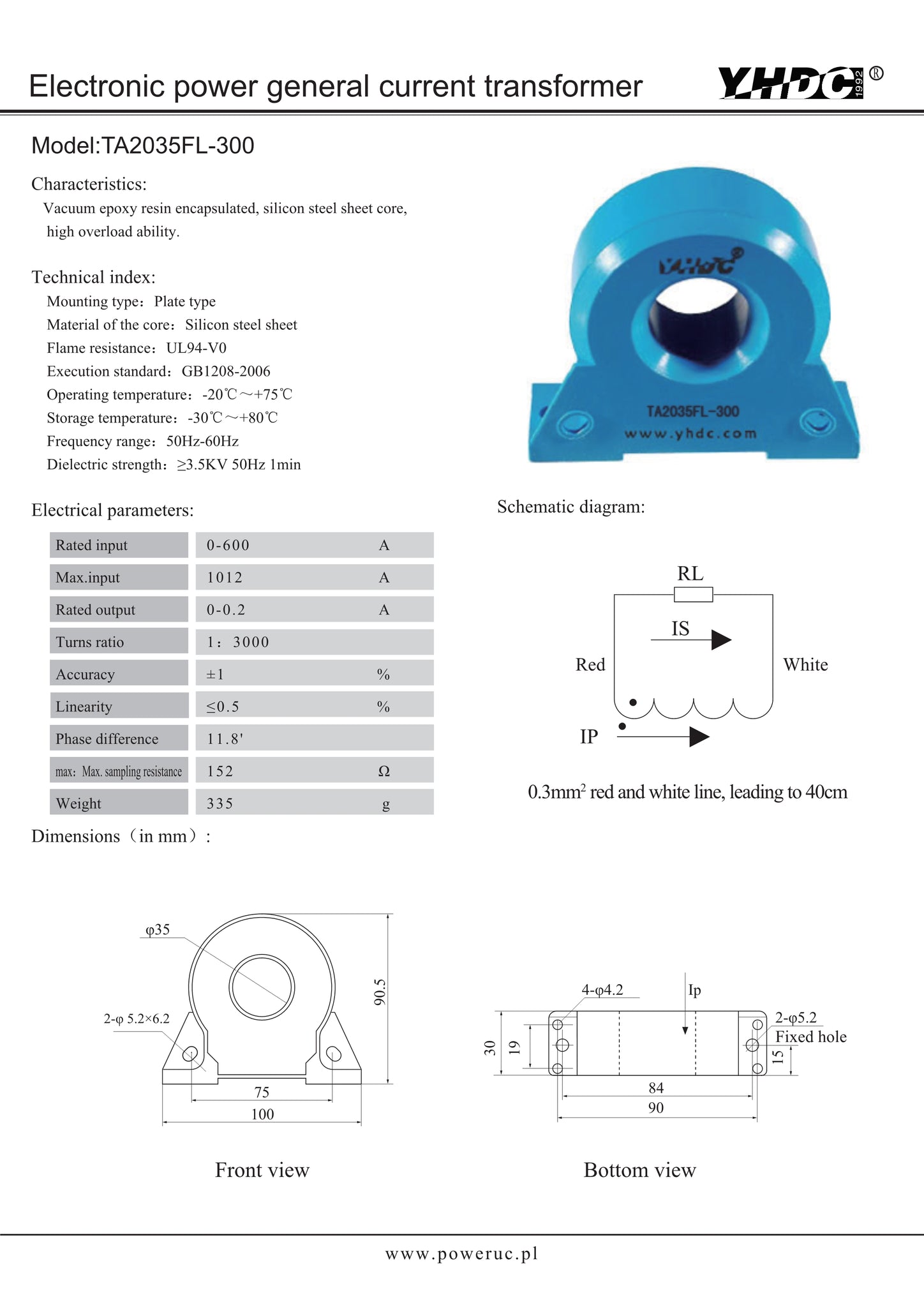

DOWNLOAD-TA2035FL-300
