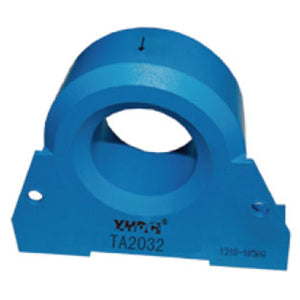

Electronic power general current transformer TA2032FL - 0-300A/0-0.3A 0-400A/0-0.2A 0-500A/0-0.167A - PowerUC

Electronic power general current transformer TA2032FL - 0-300A/0-0.3A 0-400A/0-0.2A 0-500A/0-0.167A

PowerUC

Shipping calculated at checkout.
Only 1 left!

Characteristics:
Fully enclosed, two output types of leading wire and plug terminal.  For power measuring, overcurrent detecting, leakage current protecting, current feedback.

Technical Index:
Mounting type: Plate type
Material of the core: Silicon steel sheet
Flame resistance: UL94-V0
Execution standard: GB20840-2014
Operating temperature: -20°C ~ +70°C
Storage temperature: -30°C ~ +80°C
Frequency range: 50Hz - 60Hz
Dielectric strength: ≥3.5KV 50Hz 1min

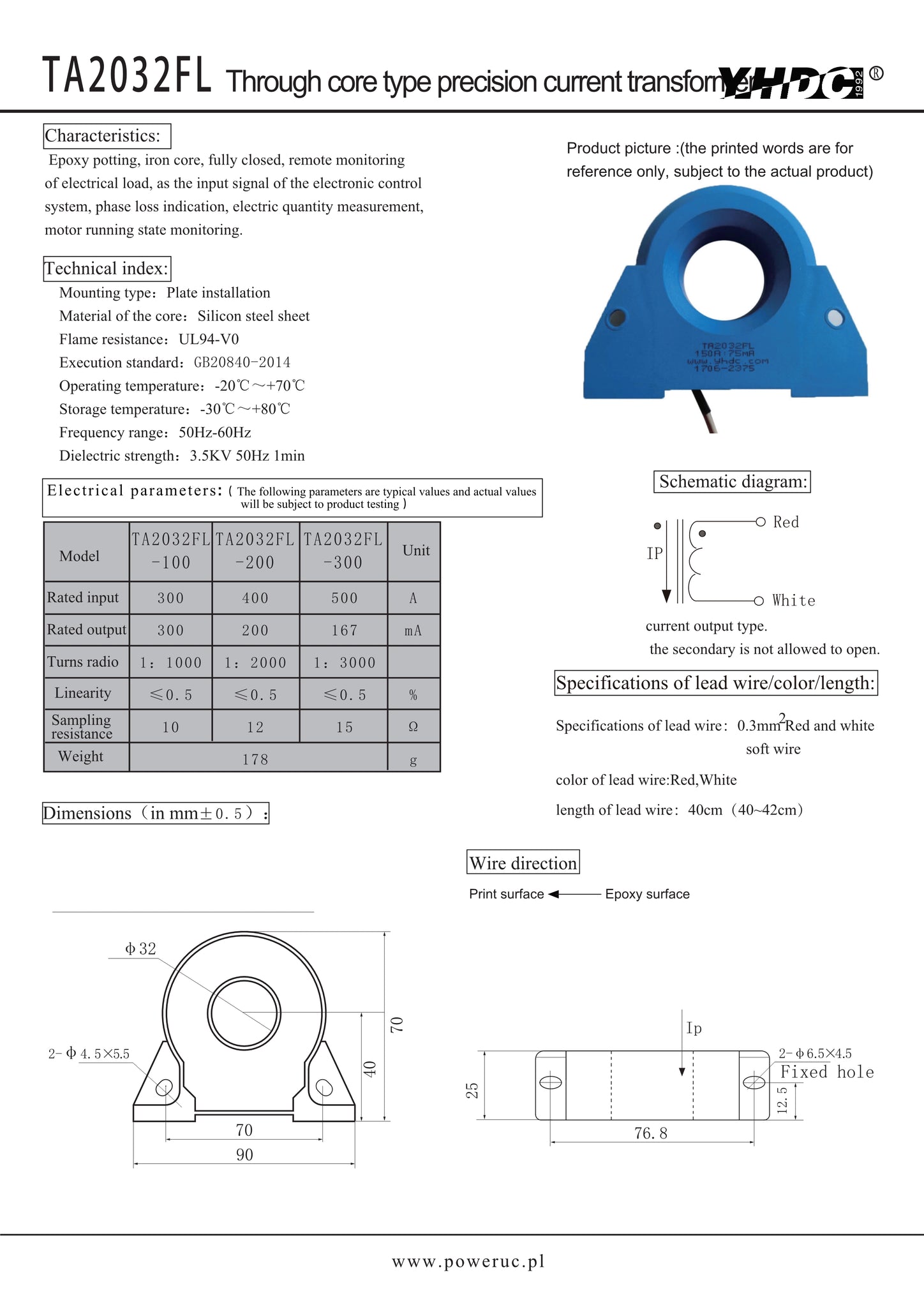

Electrical Parameters:

DOWNLOAD
