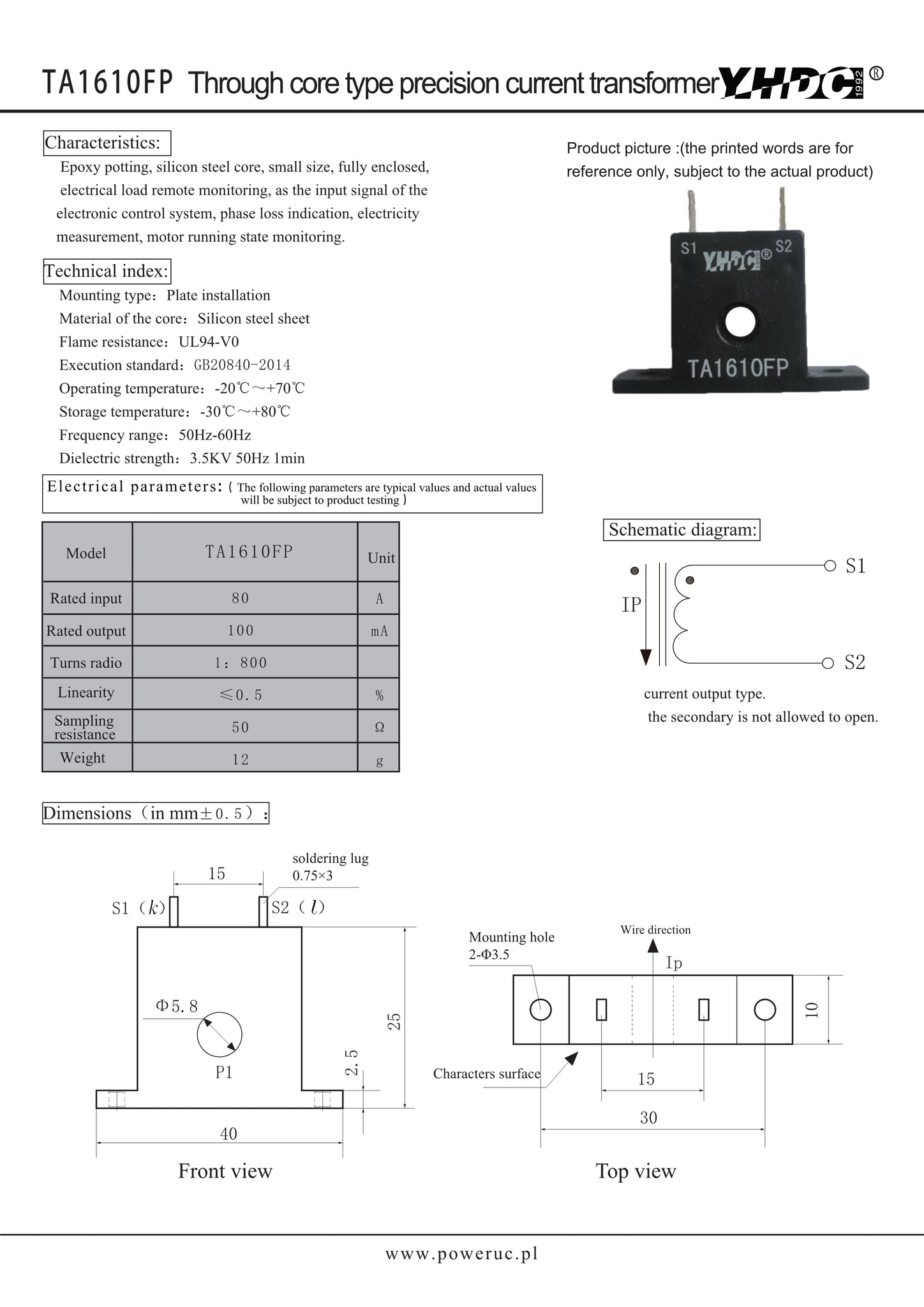

Electronic power general current transformer TA1610FP 80A 0.1A

Electronic power general current transformer TA1610FP 80A 0.1A

PowerUC

Shipping calculated at checkout.
Only 0 left!
Will be in stock after

Characteristics:
Adopt toroidal silicon steel sheet core, strong over load capacity.
Hole diameter Ø5.8, measuring range 0.1-80A, can directly connect with electronic circuit.

Technical Index:
Suspended or PCB mounting
Material of the core: Silicon steel sheet
Flame resistance: UL94-V0
Execution standard: GB20840-2014
Operating temperature: -20°C ~ +70°C
Storage temperature: -30°C ~ +80°C
Frequency range: 50Hz - 60Hz
Dielectric strength: ≥3.5KV 50Hz 1min

Electrical Parameters:

DOWNLOAD
