Driver Transformer D4615 Vout microsecond integral 480μvs Input amplitude 15/20/30V

PowerUC

Shipping calculated at checkout.
Only 10 left!

Characteristics:

It is used to drive IGBT,MOS pipe and transmit high-frequency signal isolation.

Technical Indicators:
Installation method: PCB
Flame resistance: UL94-V0
Operating temperature: -20°C ~ +50°C
Storage temperature: -30°C ~ +85°C
Frequency range: 15KHz ~ 200KHz
Dielectric strength: 3KV 50Hz 1min

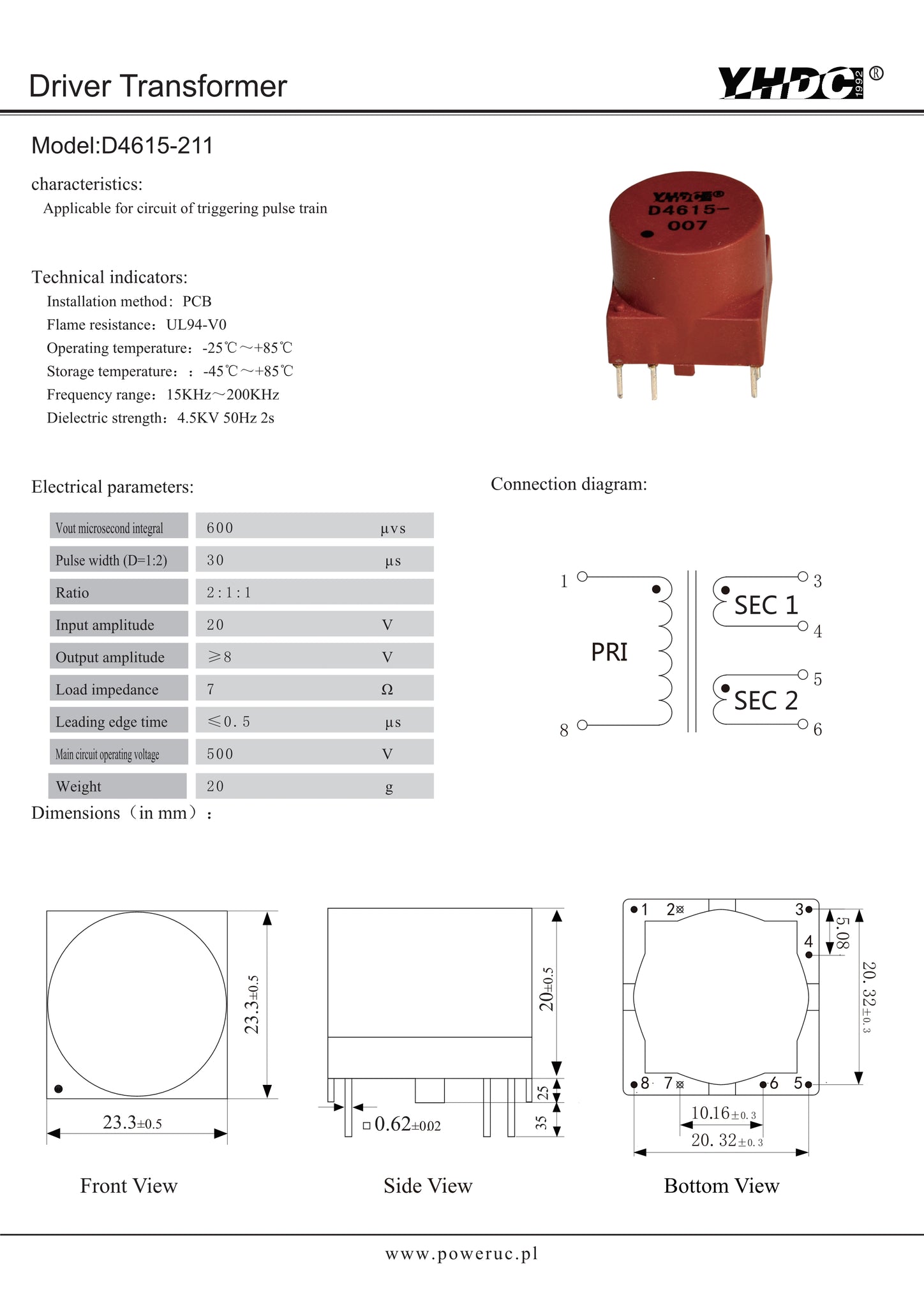

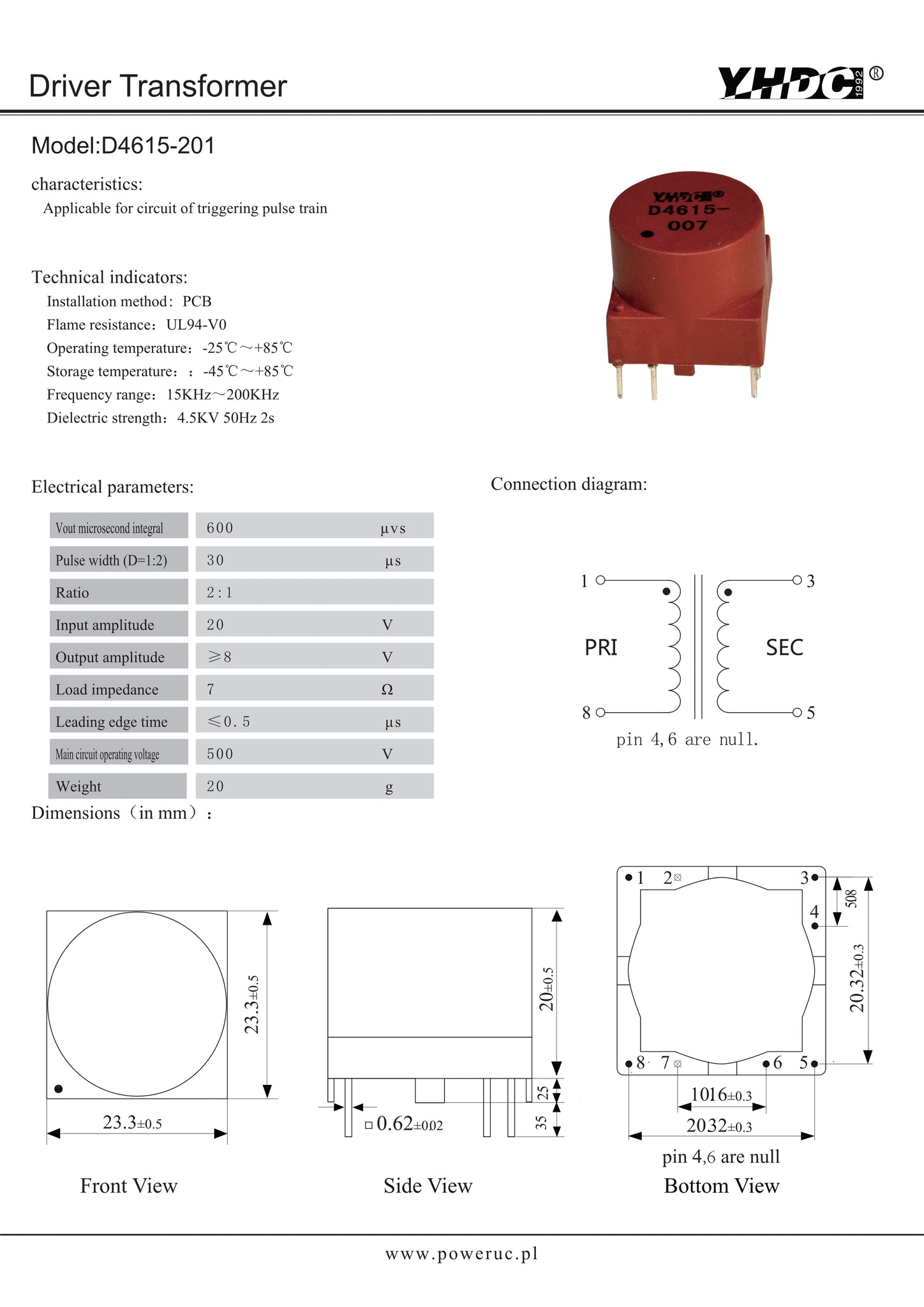

Electrical Parameters:

DOWNLOAD
