AC Digital output current transducer table THST35A-RS485 rated input 200A 400A 600A 800A 1000A 1200A 1500A power supply +12V +24V ±15V
Circle plug terminal output, sub-plate mounting type;The faulty wiring can lead to product damage:The output is linear with primary test current,The output signal can be connected to a
digital acquisition device that supports the RS485 communication interface to realize data acquisition and processing.
Technical index:
Flame resistance: UL94-V0
Operating temperature: -10℃~+70℃
Storage temperature: -25℃~+85℃
Dielectric strength: 2.5KV 50Hz 1min
Waterproof level:IP00

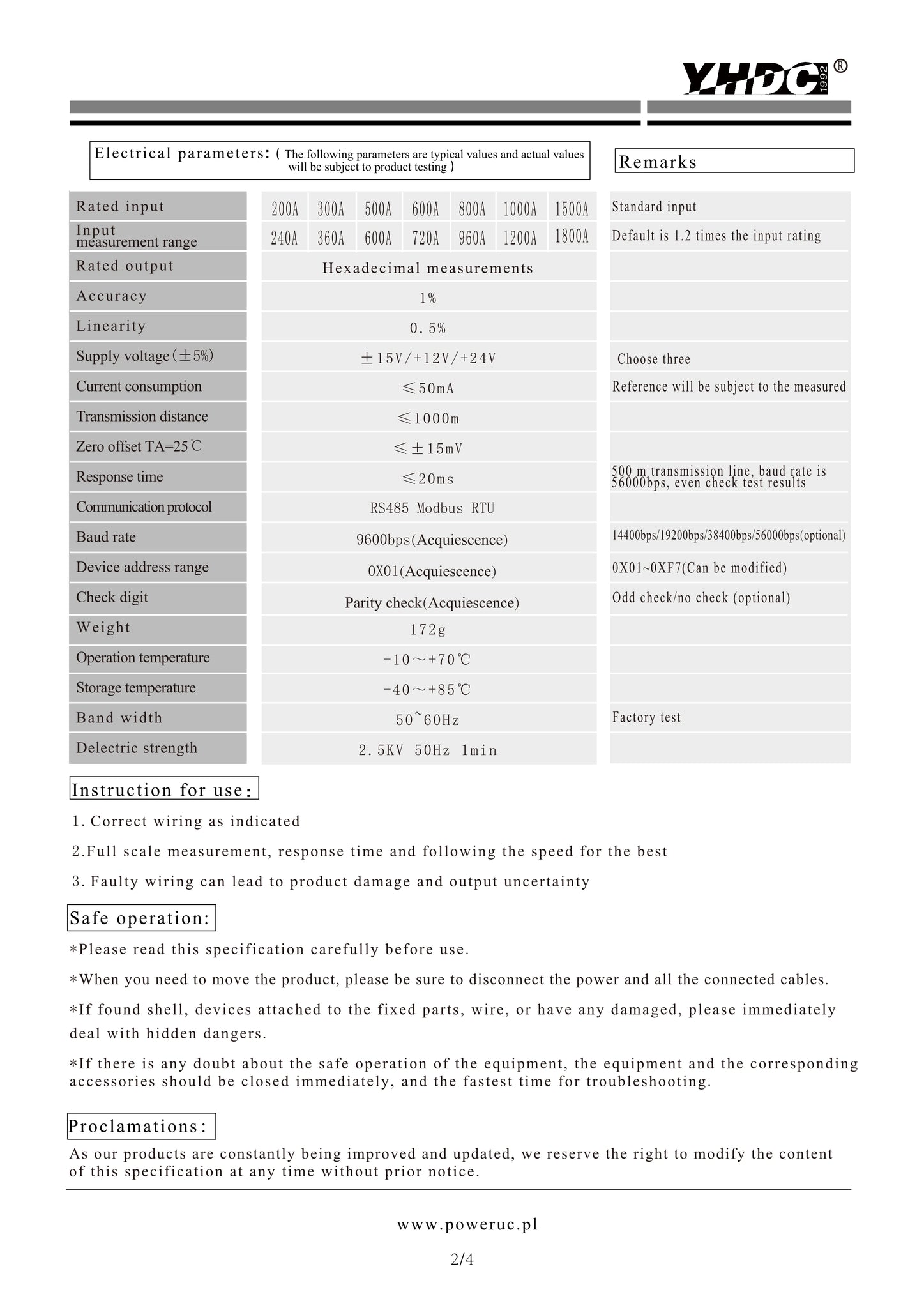

Electric parameters:
DOWNLOAD
