AC Digital output current transducer table THST080A-RS485 rated input 400A 600A 800A 1000A 1200A 1400A 1600A 1800A 2000A power supply  +12V +24V ±15V - PowerUC

AC Digital output current transducer table THST080A-RS485 rated input 400A 600A 800A 1000A 1200A 1400A 1600A 1800A 2000A power supply +12V +24V ±15V

PowerUC

  • €0,00
    Unit price per
Shipping calculated at checkout.

Only 0 left!
Will be in stock after

Circle plug terminal outputsub-plate mounting type;The faulty wiring can lead to product damage:The output is linear with primary test current,The output signal can be connected to a
digital acquisition device that supports the RS485 communication interface to realize data acquisition and processing.

Technical index
Flame resistanceUL94-V0
Operating temperature
-10℃~+70
Storage temperature-40℃~+85
Dielectric strength2.5KV 50Hz 1min
Waterproof level:IP00

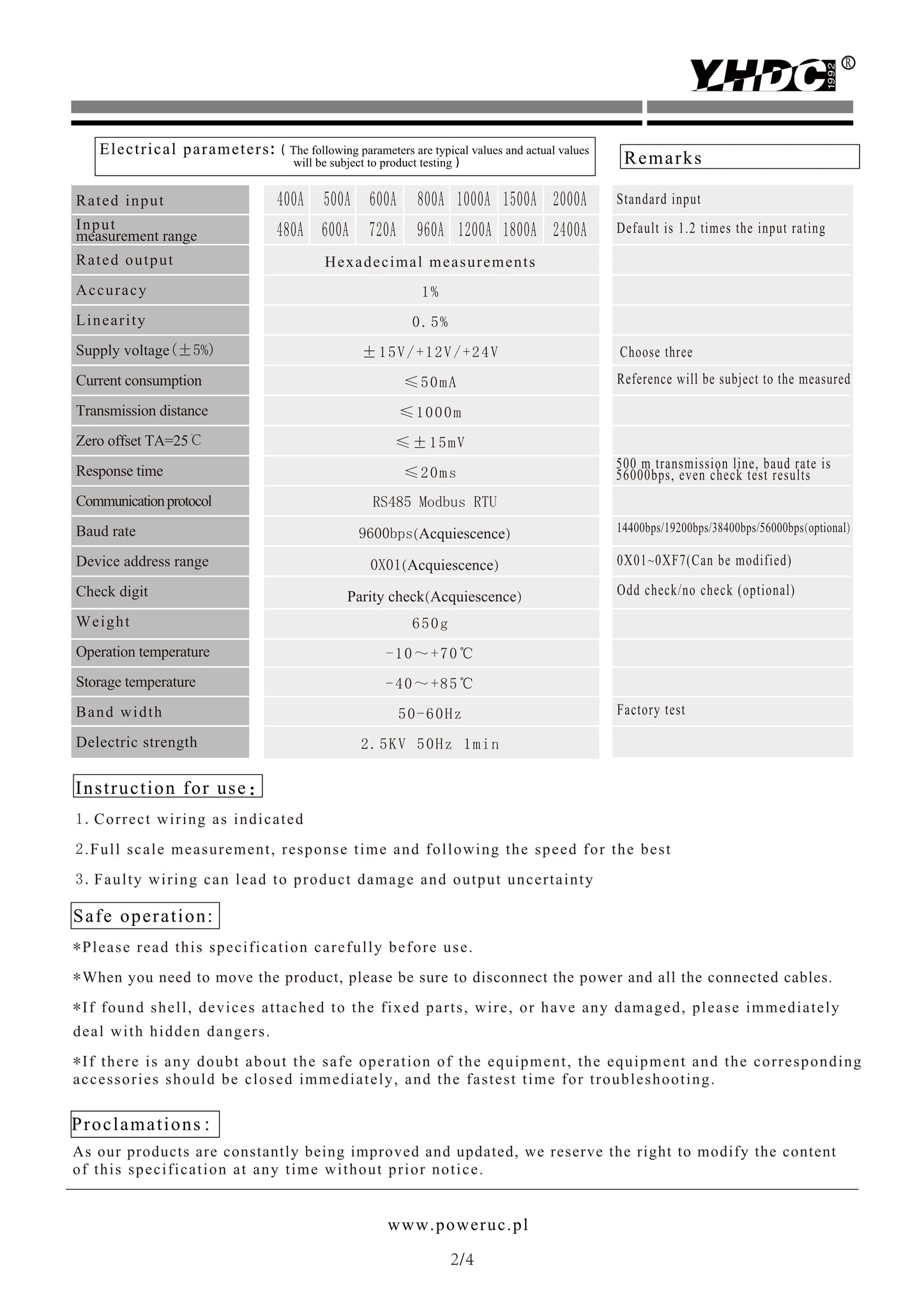

Electric parameters

DOWNLOAD
