DC component current transformer TA8349D-200 Rated input 75A Rated output 37.5mA - PowerUC

DC component current transformer TA8349D-200 Rated input 75A Rated output 37.5mA

PowerUC

Shipping calculated at checkout.
Only 0 left!
Will be in stock after

Characteristic：

Epoxy encapsulated, exterior size small,fully enclosed anti-dc component.

Technical Index:
Installation method: PCB
Core material: Composite magnetic
Flame retardant properties: UL94-V0

Operating temperature: -20°C ~ +70°C
Storage temperature: -30°C ~ +80°C
Frequency range: 20Hz - 1Khz
Electrical strength: 3.5KV 50Hz 1min

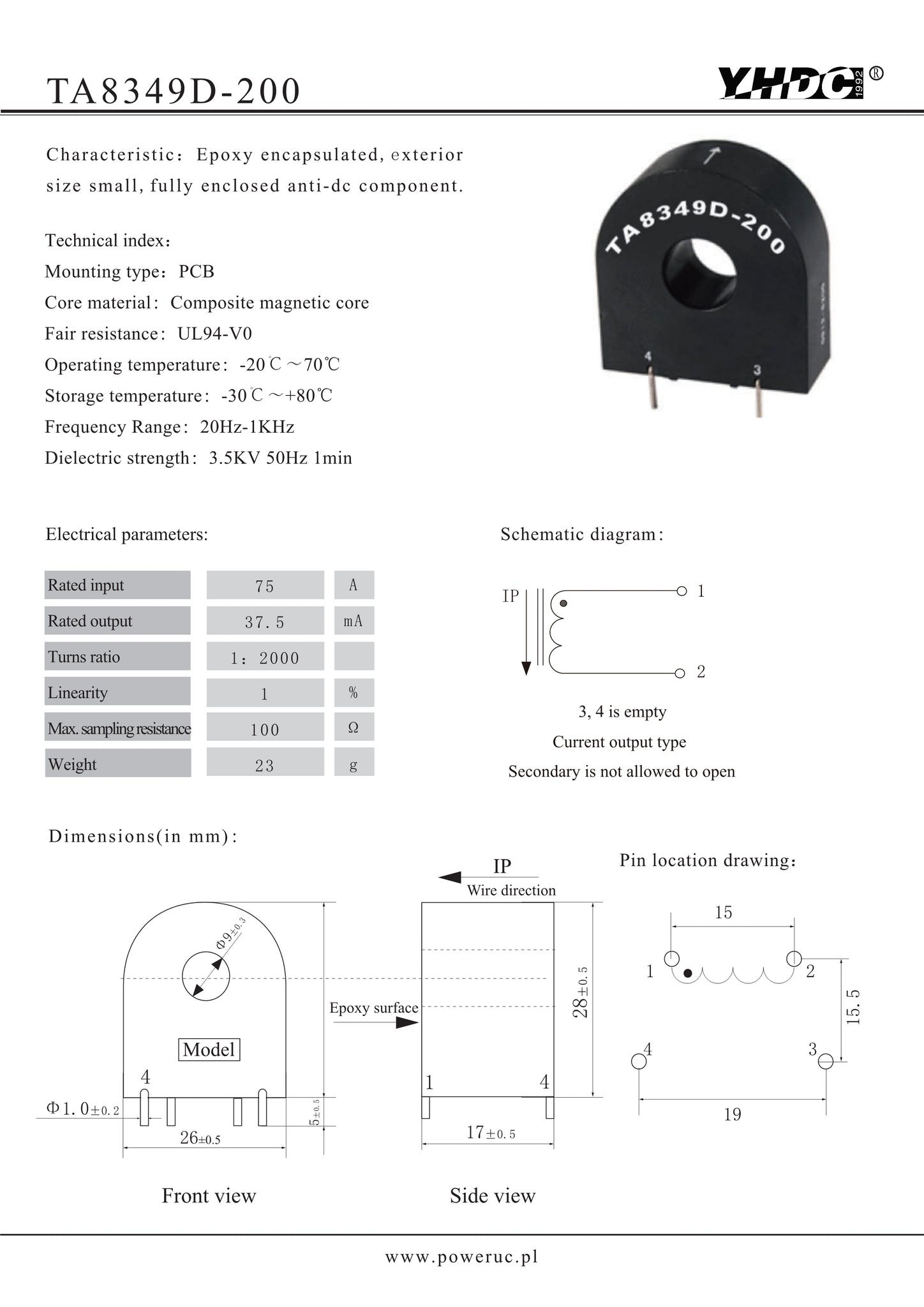

Electrical Parameters:

DOWNLOAD
