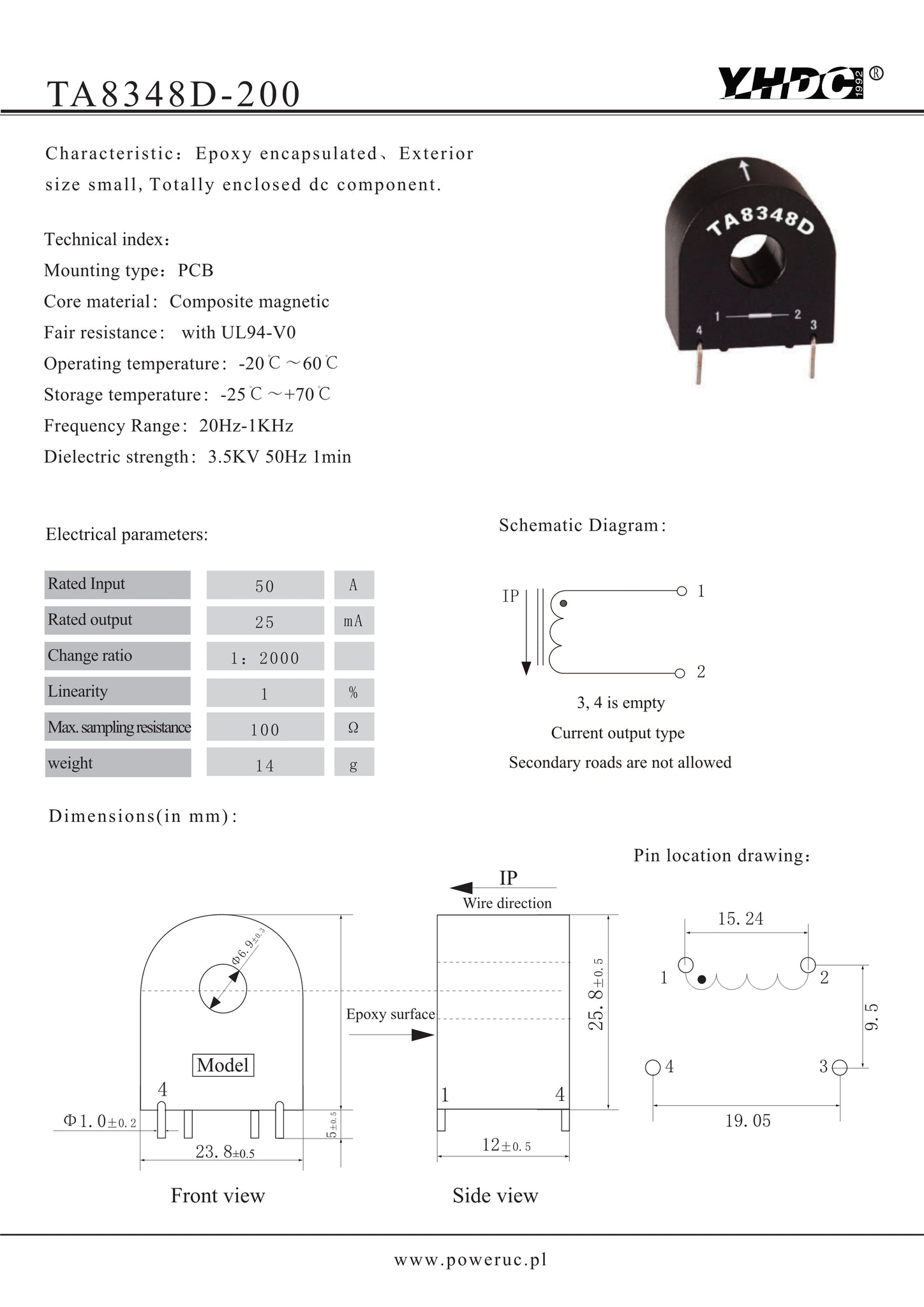

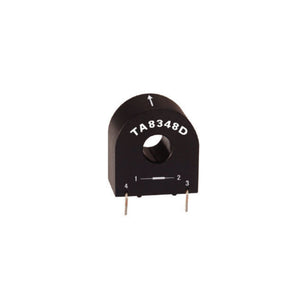

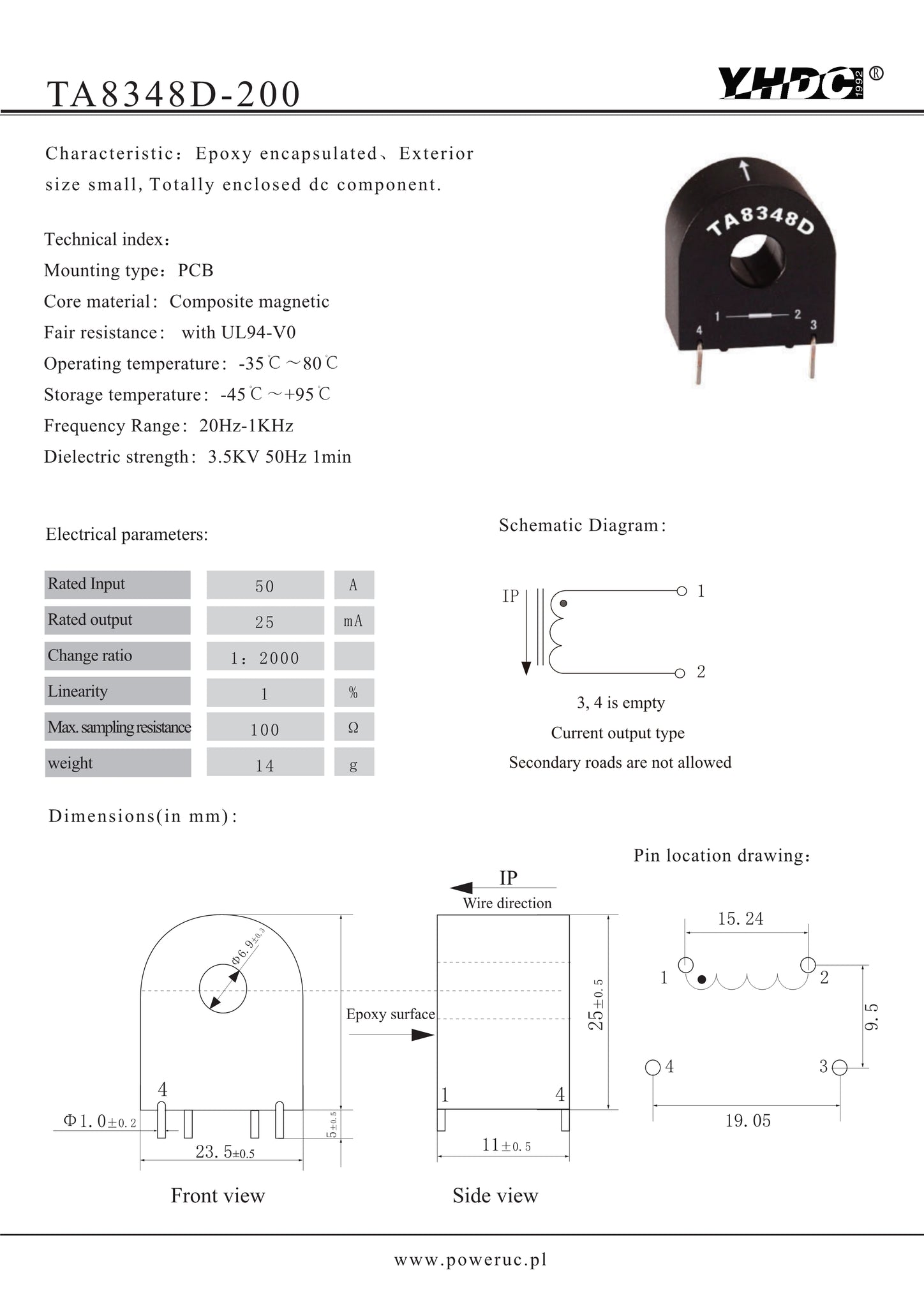

DC Component current transformer TA8348D-200 Rated input 50A Rated output 25mA

PowerUC

Shipping calculated at checkout.

Quantity

Only 0 left!

Will be in stock after

Characteristic：

Epoxy resin encapsulated, small outline size, fully enclosed and anti-dc component.

Technical Index:
Installation method: PCB
Core material: Composite magnetic
Flame retardant properties: UL94-V0

Operating temperature: -20°C ~ +70°C
Storage temperature: -30°C ~ +80°C

Frequency range: 20Hz - 1Khz
Electrical strength: 3.5KV 50Hz 1min

Electrical Parameters:
