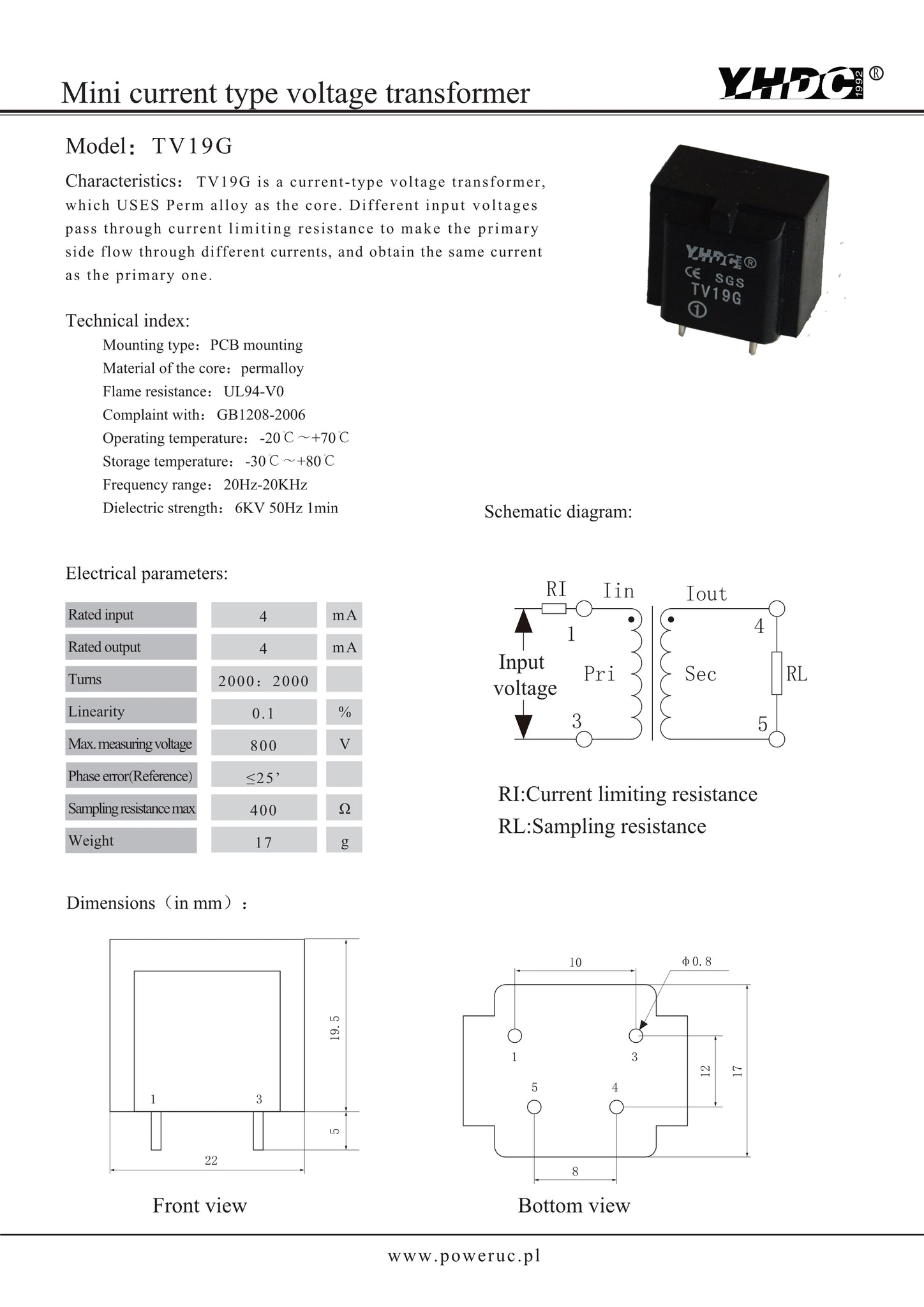

Characteristics:
Adopts permalloy core, PCB mounting, fully enclosed.  Used for voltage load remote monitoring.  As the electric control system, the voltage input signal.  As voltage measurement signal of watt-hour meter, high-frequency voltage detection.

Technical Index:
Mounting type: PCB mounting
Material of core: Permalloy
Flame resistance: UL94-V0
Operating temperature: -20°C ~ +70°C
Storage temperature: -30°C ~ +80°C
Frequency range: 20Hz ~ 20KHz
Dielectric strength: 6KV 50Hz 1min

Electrical Parameters:
