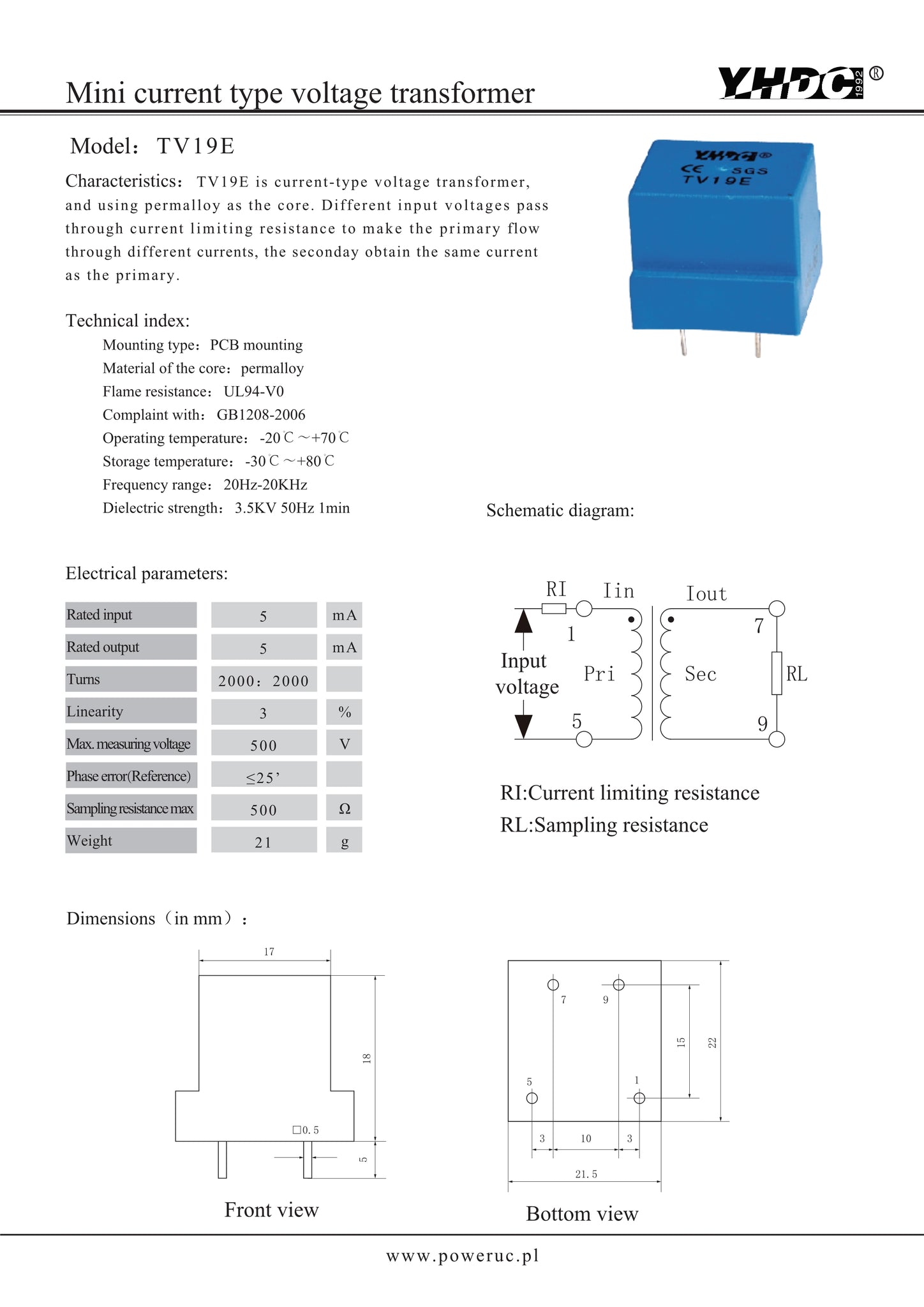

Characteristics:

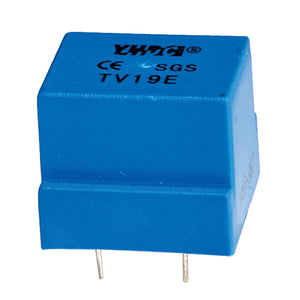

TV19E is current-type voltage transformer, and using permalloy as the core. Different input voltages pass through current limiting resistance to make the primary flow through different currents, the seconday obtain the same current as the primary.

Technical Index:
Mounting type: PCB mounting
Material of the core: permalloy
Flame resistance: UL94-V0
Operating temperature: -20°C ~ +70°C
Storage temperature: -30°C ~ +80°C
Frequency range : 20Hz ~ 20KHz
Dielectric strength: 3.5KV 50Hz 1min

Electrical Parameters:
