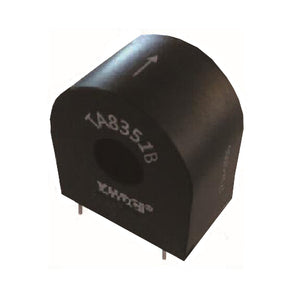

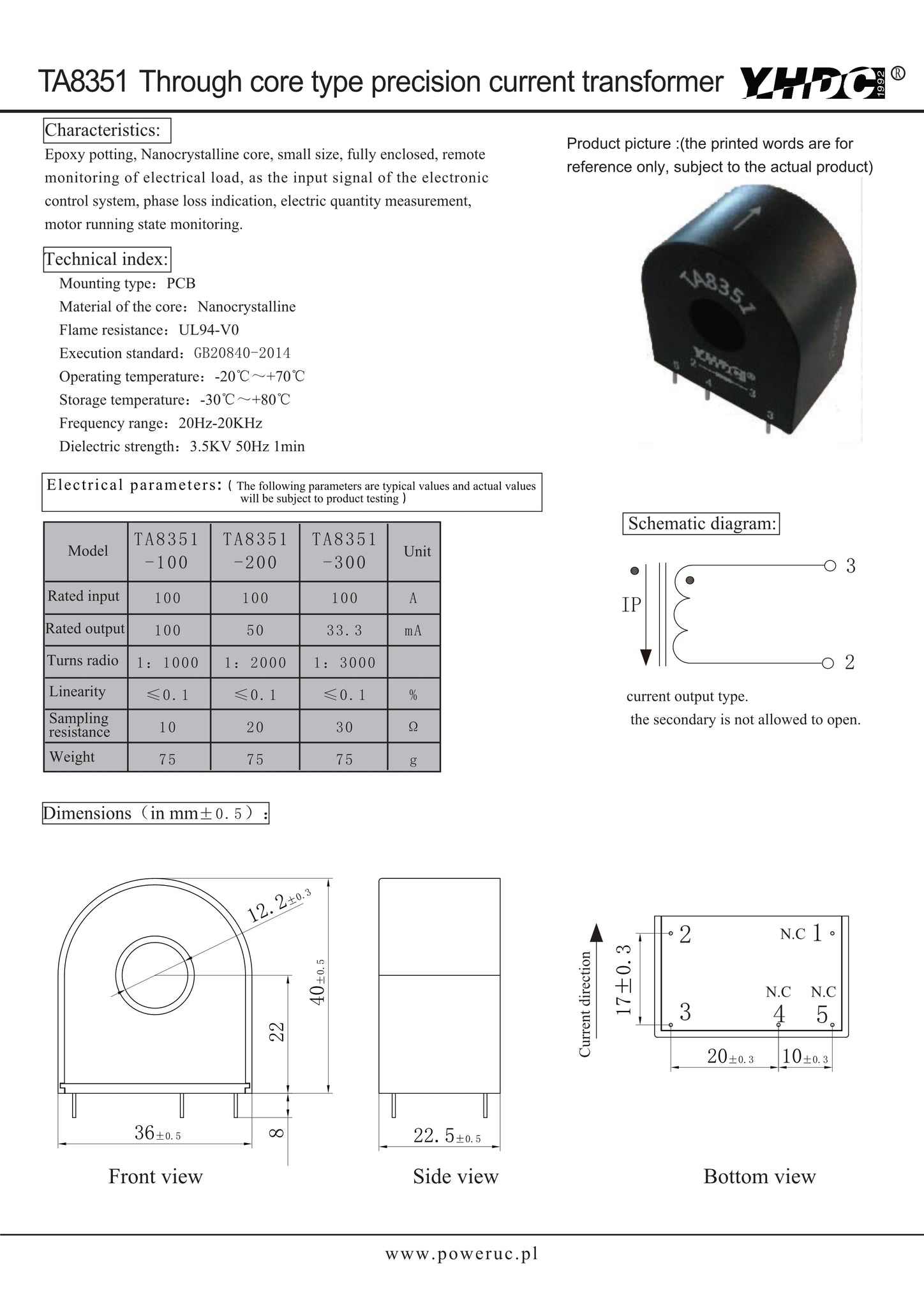

Through core type precision current transformer TA8351 Rated input 0-100A Rated output 100mA/50mA/33.3mA
Model:TA8351
Characteristics: PCB welding output. Fully enclosed, Nanocrystalline core.
Technical index:
Mounting type:PCB
Material of the core:Nanocrystalline
Flame resistance:UL94-V0
Execution standard:GB20840-2014
Operating temperature:-20℃~+70℃
Storage temperature:-30℃~+80℃
Frequency range:20Hz-20KHz
Dielectric strength:3.5KV 50Hz 1min
Electrical parameters:
DOWNLOAD
