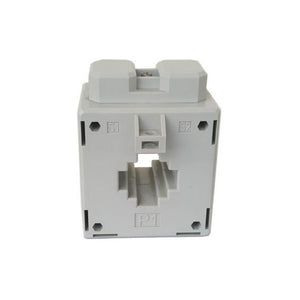

Solid core power distribution current transformer BH-0.72-50 - 300A 400A 500A 600A 750A 800A 1000A 1200A - 0.1A/1A/5A

Solid core power distribution current transformer BH-0.72-50 - 300A 400A 500A 600A 750A 800A 1000A 1200A - 0.1A/1A/5A

PowerUC

  • €6,74
    Unit price per
Shipping calculated at checkout.

Only 15 left!

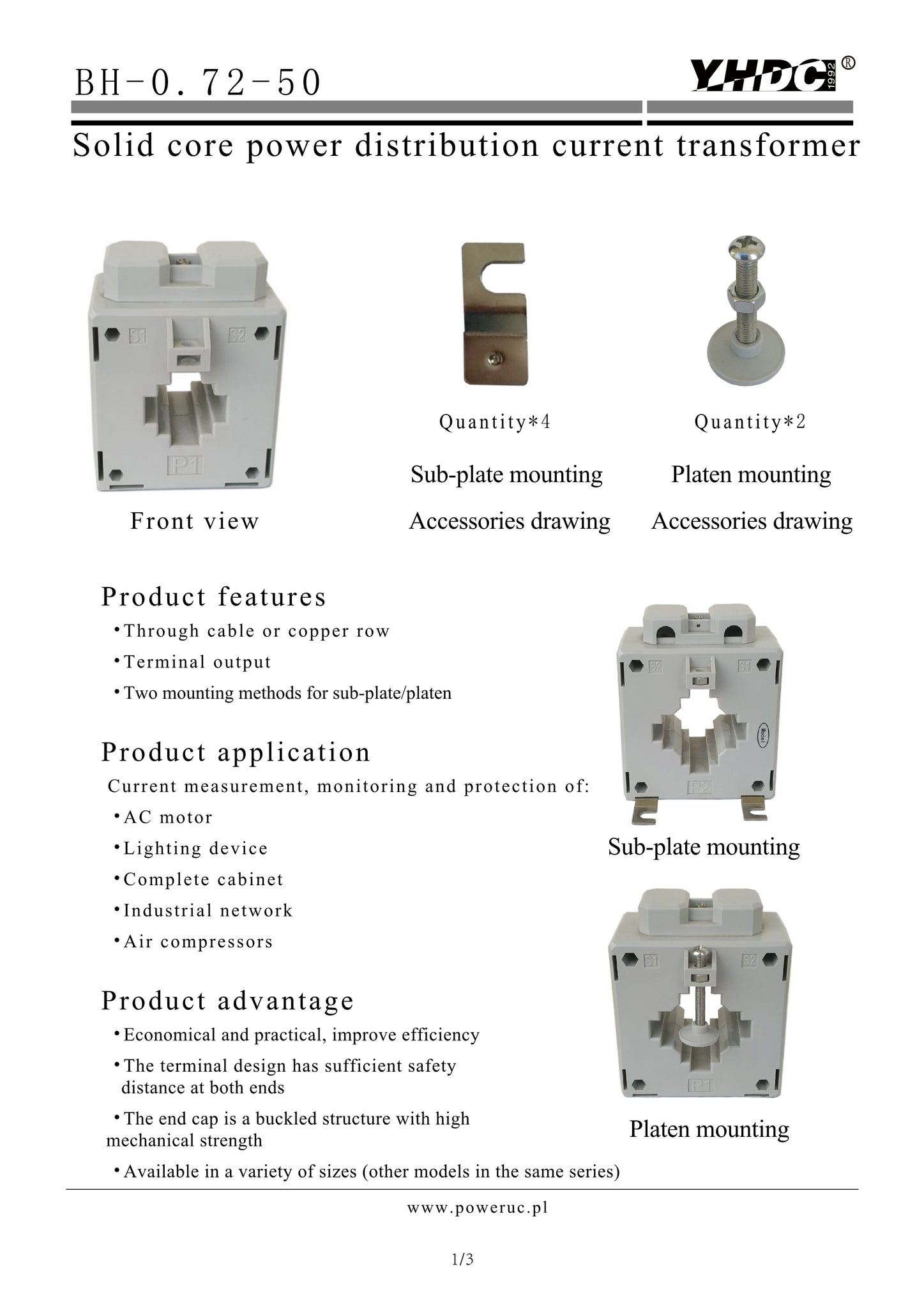

Characteristic:
BH-0.72 current transformer are mainly indoor use, rated voltage ≤0.72KV, 50Hz AC current, to measure current or energy or relay protection.
Products are plastic molded CT.
Widely used in the complete sets of cabinets.
Installation can be busbar fixed or bottom plate fixed.
Any direction installation will be OK.

Technical Index:
Mounting type: Busbar / Bottom plate fixed
Core material: Silicon Steel
Flame resistance: UL94-V0
Work voltage: 720V
Working temperature: -20°C ~ +85°C
Storage temperature: -25°C ~ +90°C
Work frequency: 50Hz ~ 60Hz
Dielectric strength: 6KV 50Hz 1min

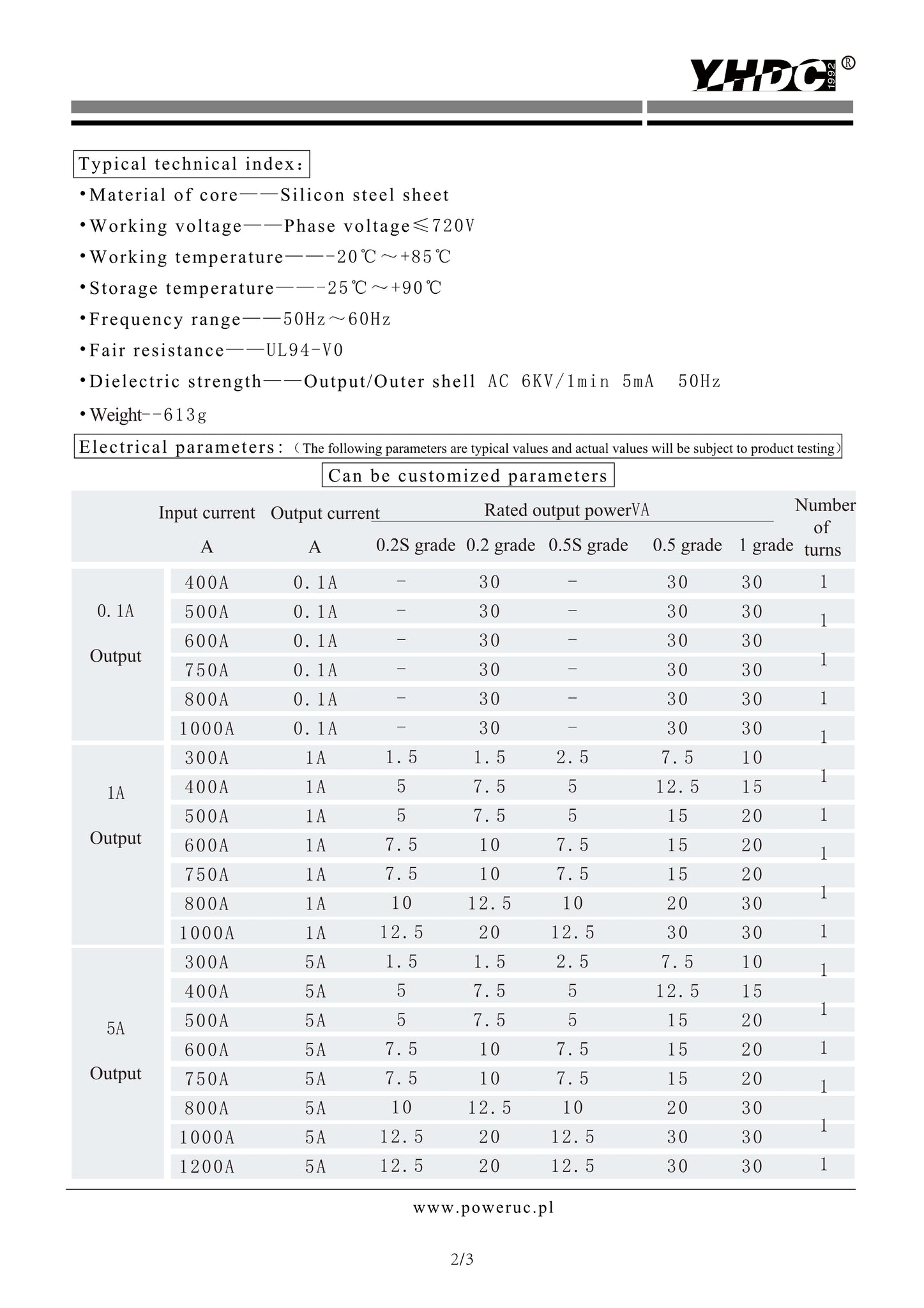

Electrical Index:

DOWNLOAD
