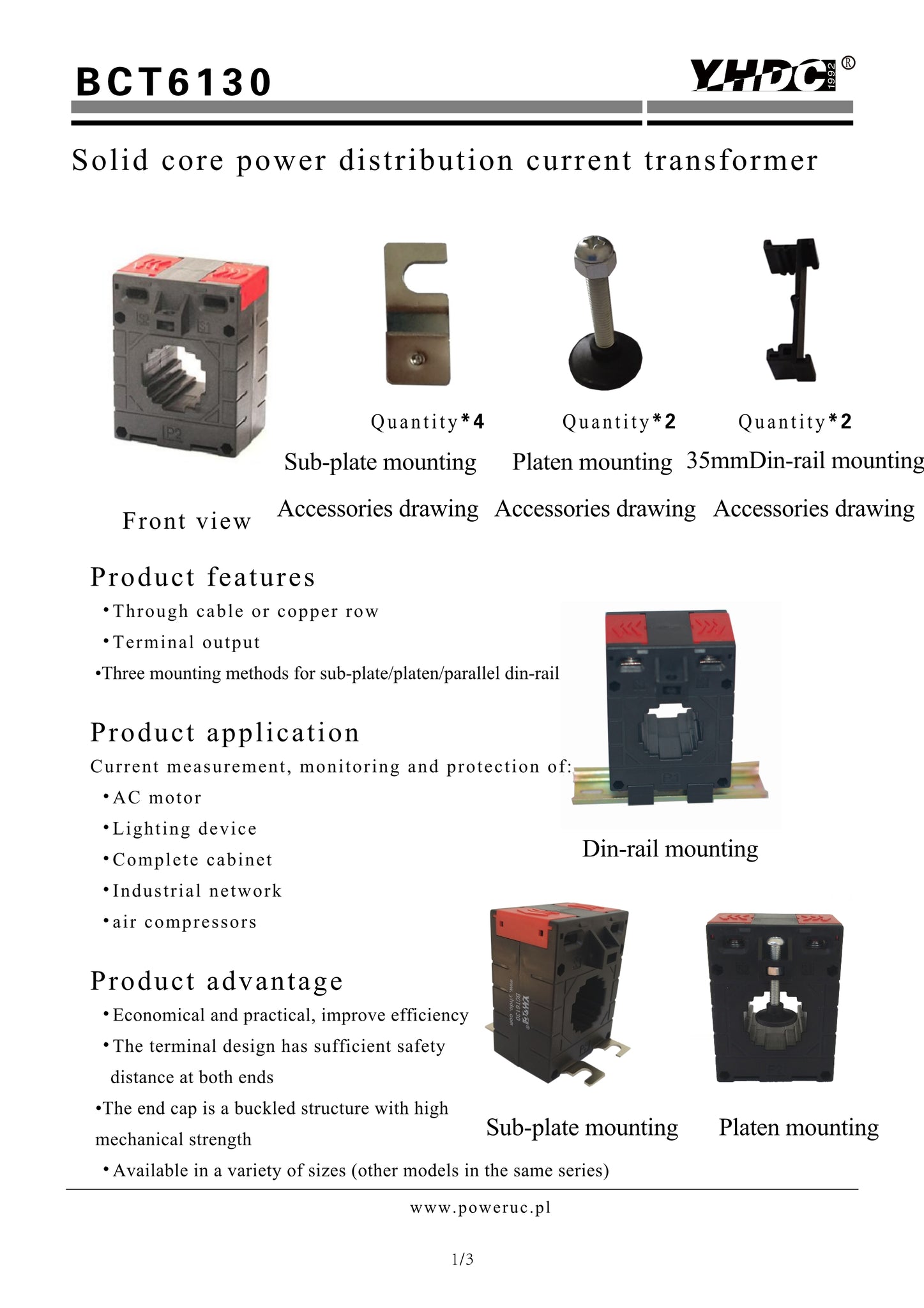

Solid core power distribution current transformer BCT6130 - 50A 100A 150A 200A 250A 300A - 5A/1A/0.1A
BCT series are the current transformer which are designed for industrial equipment.
Technical Index:
Mounting type: Three mounting methods for sub-plate/platen/parallel din-rail
Output current: 0.1A, 1A, 5A (can be customized)
Core material: Adopt high permeability silicon steel, good
Installation place: Indoors
Flame resistance: UL94-V0
Working temperature: -20°C ~ +60°C
Storage temperature: -25°C ~ +65°C
Atmospheric conditions: No serious pollution
Dielectric strength: AC 3.5KV/1min 50Hz (secondary/shell)

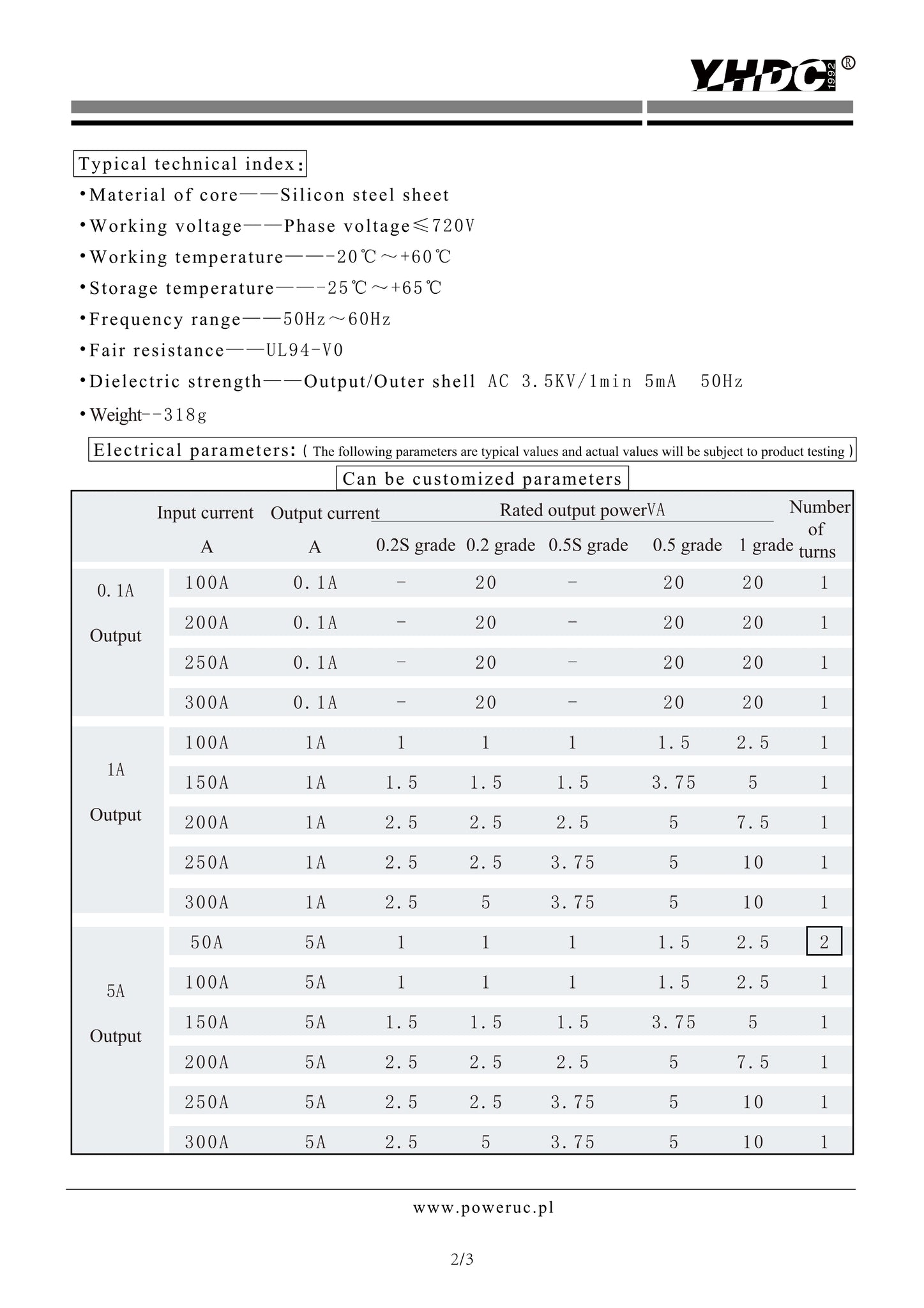

Electrical Index:



DOWNLOAD
