600A-2500A current transformer BCT145100 -  600A 750A 800A 1000A 1200A 1500A 1600A 2000A 2500A - 5A/1A/0.1A - PowerUC

600A-2500A current transformer BCT145100 - 600A 750A 800A 1000A 1200A 1500A 1600A 2000A 2500A - 5A/1A/0.1A

PowerUC

  • €22,08
    Unit price per
Shipping calculated at checkout.

Only 10 left!

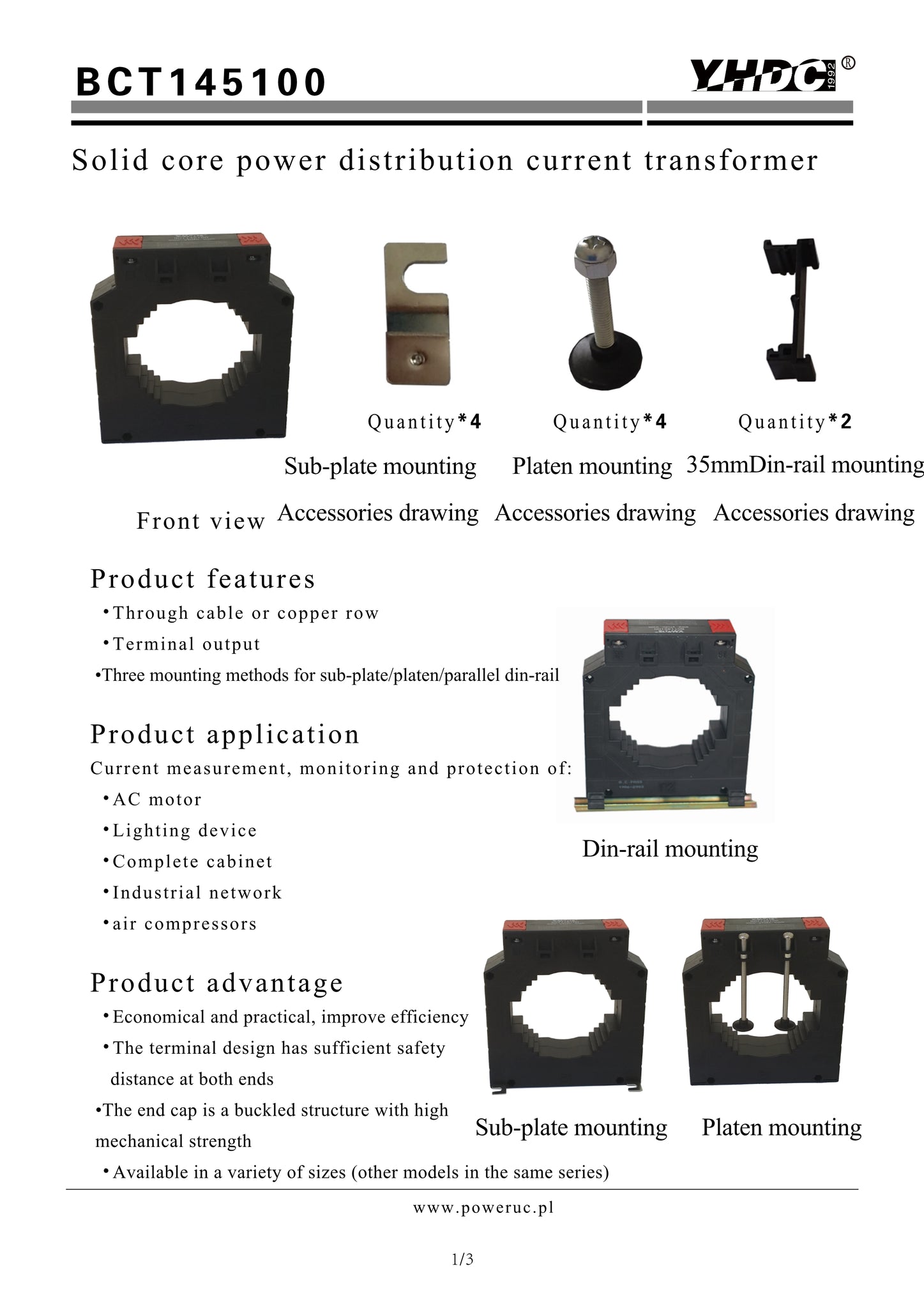

BCT series are the current transformer which are designed for industrial equipment.

Technical Index:
Mounting type: Sub-plate / suspending  /din rail type
Output current: 0.1A, 1A, 5A (can be customized)
Core material: Silicon Steel
Installation place: Indoors
Flame resistance: UL94-V0
Working temperature: -20°C ~ +60°C
Storage temperature: -25°C ~ +65°C
Altitude: ≤1000m
Atmospheric conditions: No serious pollution
Dielectric strength: AC 3.5KV/1min 50Hz (secondary/shell)

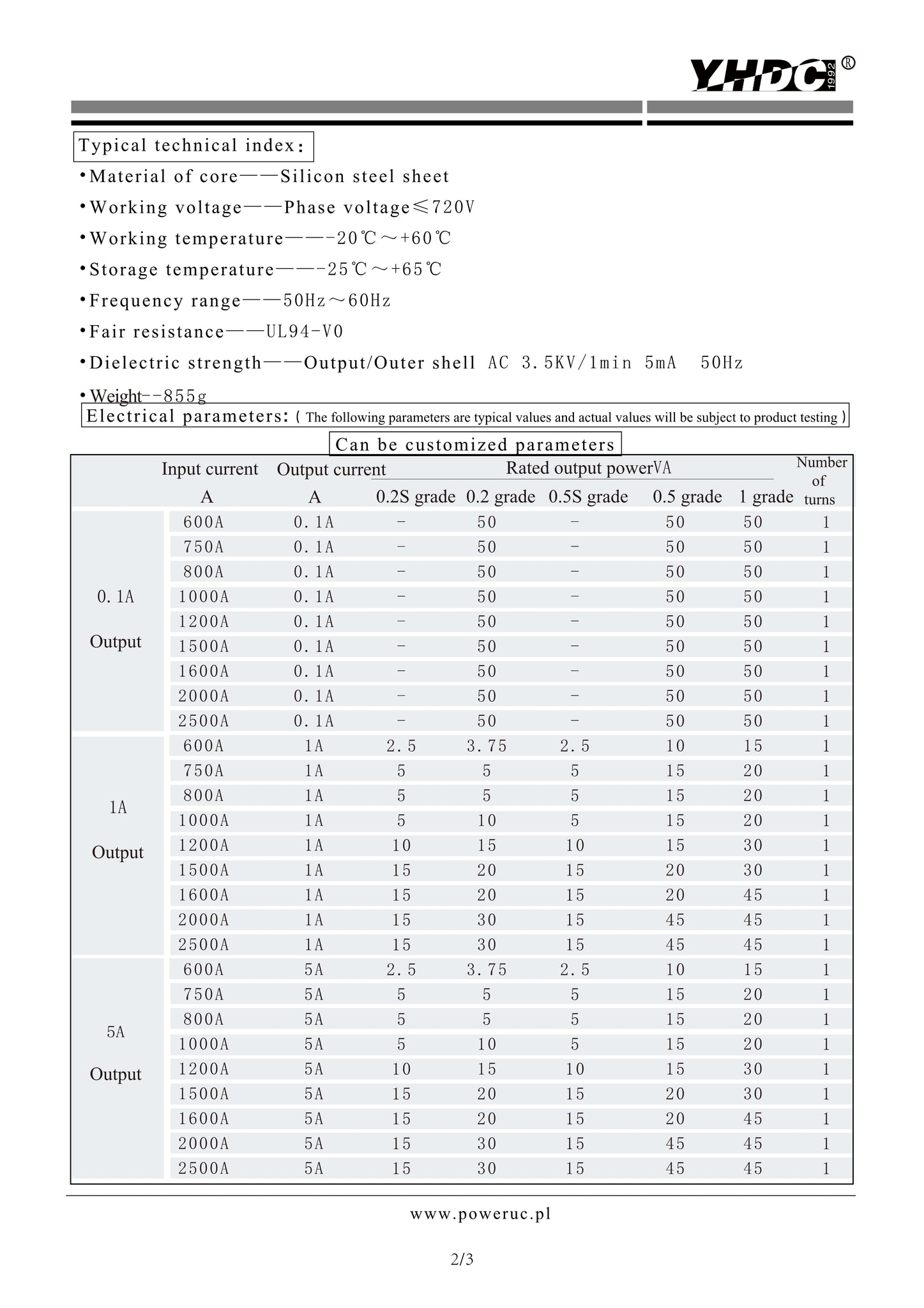

Electrical Index:
