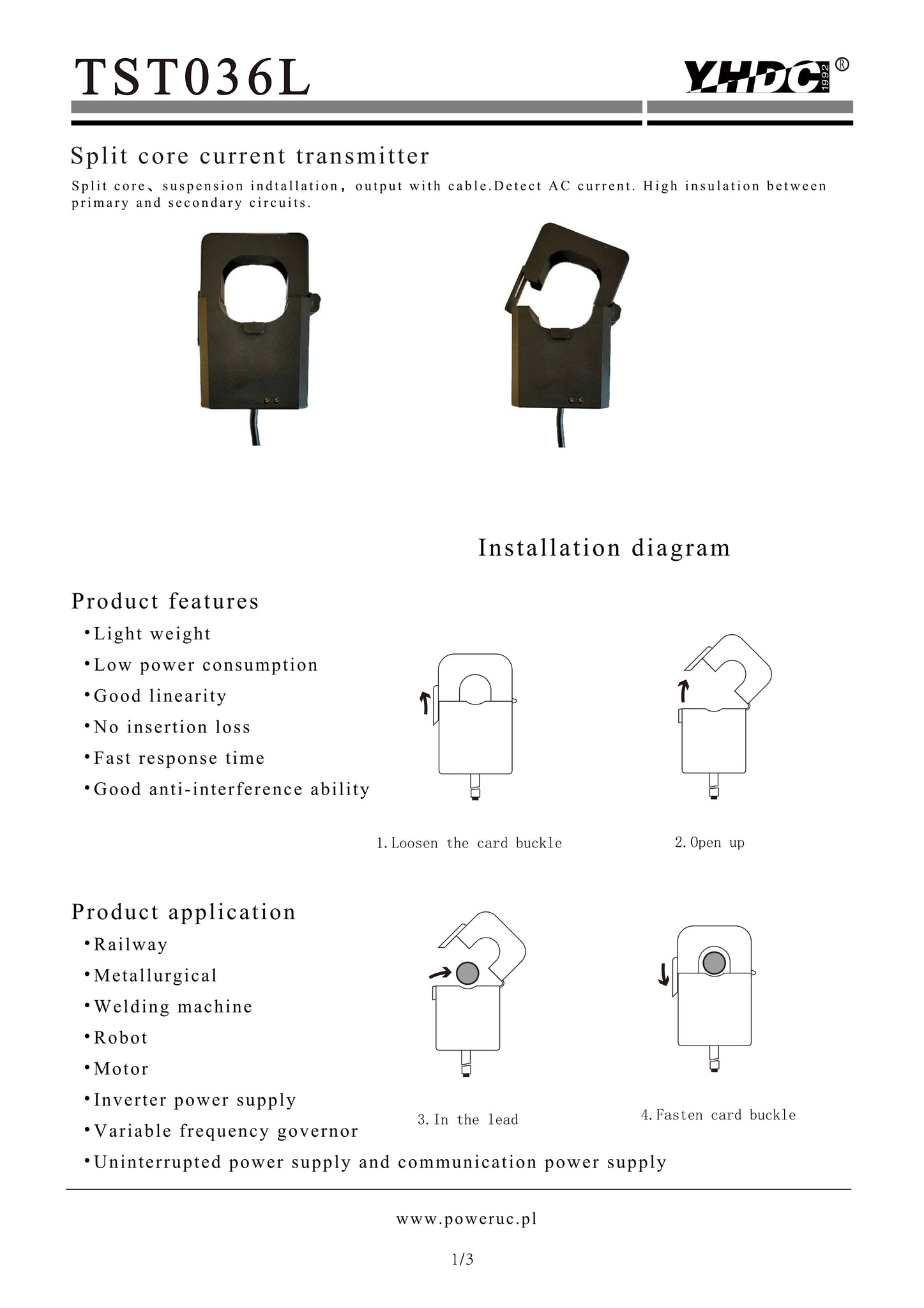

Split core AC current transducer TST036L Rated input 400A/450A/500A/550A/600A Rated output 0-20mA;4-20mA ;0-5V;1-5V;0-10V

PowerUC

€20,53

Unit price per

Shipping calculated at checkout.

Quantity

Only 10 left!

Detected AC current, high insulation between primary and secondary curcuits.

Technical index：
Flame resistance： UL94-V0
Operating temperature： -10℃～+70℃
Storage temperature： -25℃～+70℃
Dielectric strength： 2.5KV 50Hz 1min
Overload capacity： 8 times 0.1S
Waterproof level： IP00

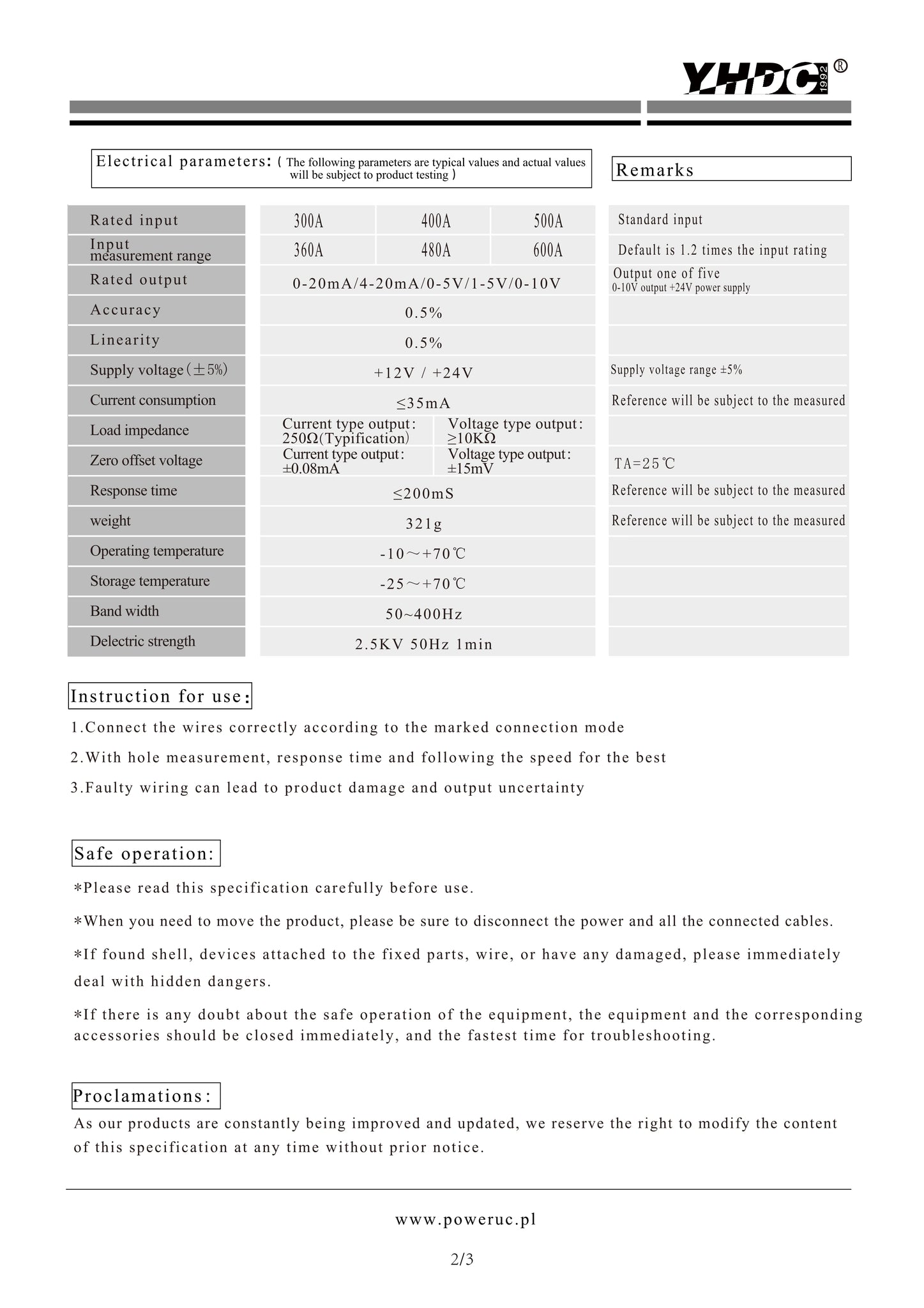

Electric parameters：

DOWNLOAD
