100A-250A current transformer 3BCT15021 - 100A/150A/200A/250A - 5A - PowerUC

Three-phases power distribution transformer 3BCT10521 - 100A/150A/200A/250A - 5A

PowerUC

Shipping calculated at checkout.
Only 0 left!
Will be in stock after

100A-250A current transformer 3BCT10521

Characteristics:
BCT series are the current transformers that are designed for industrial equipment.

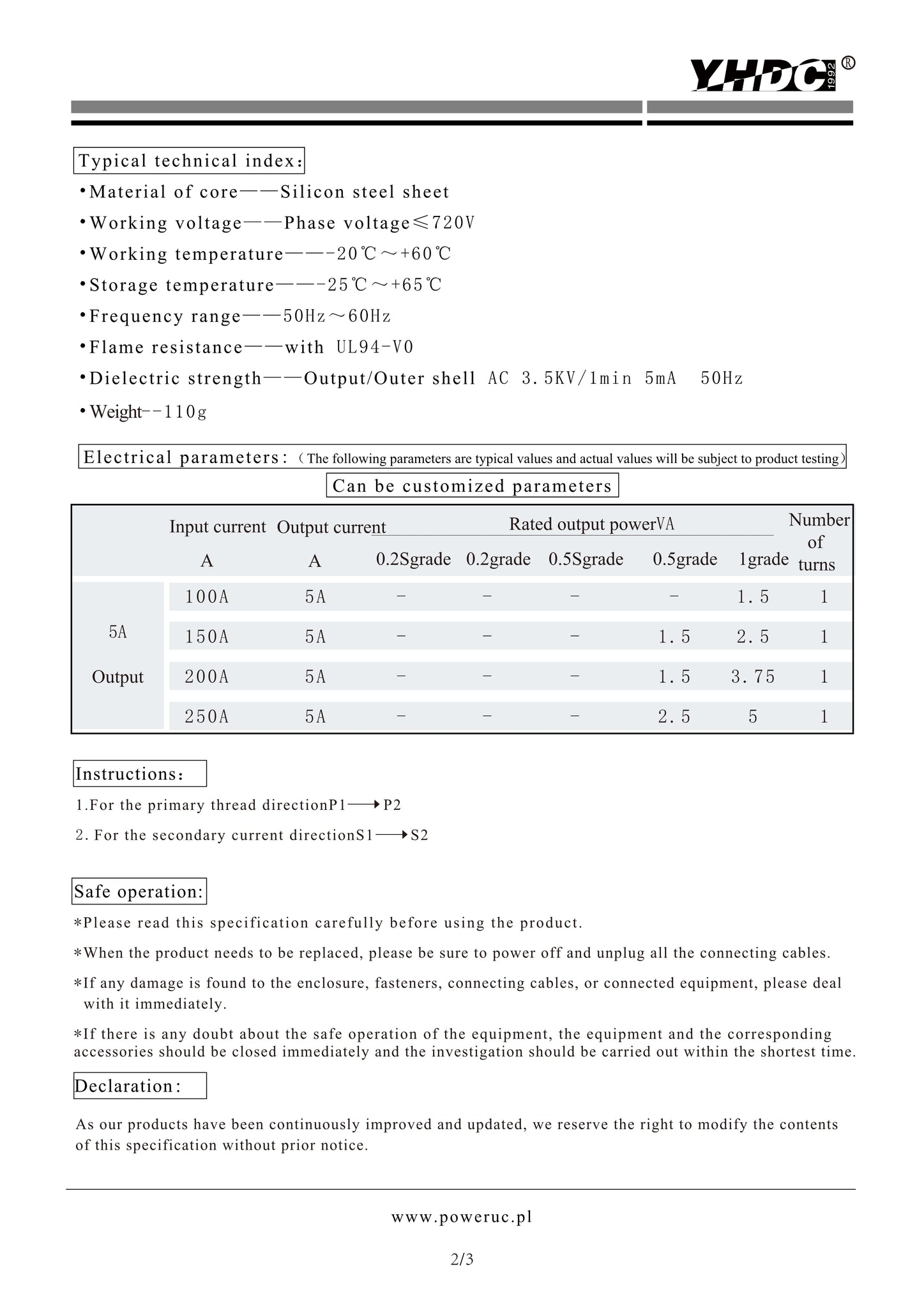

Technical Index:

Output current:  5A (can be customized)
Core material: Silicon steel sheet
Installation place: Indoors
Flame resistance: UL94-V0
Working temperature: -20°C ~ +60°C
Storage temperature: -25°C ~ +65°C
Working voltage——Phase voltage≤720V
Frequency range——50Hz～60Hz
Dielectric strength: Output/Outer shell AC 3.5KV/1min 5mA 50Hz
Weight--110g

DOWNLOAD
