True RMS Current Transmitter THT2032 Rated input 100A/200A/400A/600A Rated output 0-20mA；4-20mA ;0-5V；1-5V；0-10V

True RMS Current Transmitter THT2032 Rated input 100A/200A/400A/600A Rated output 0-20mA；4-20mA ;0-5V；1-5V；0-10V

YHDC

Only 0 left!

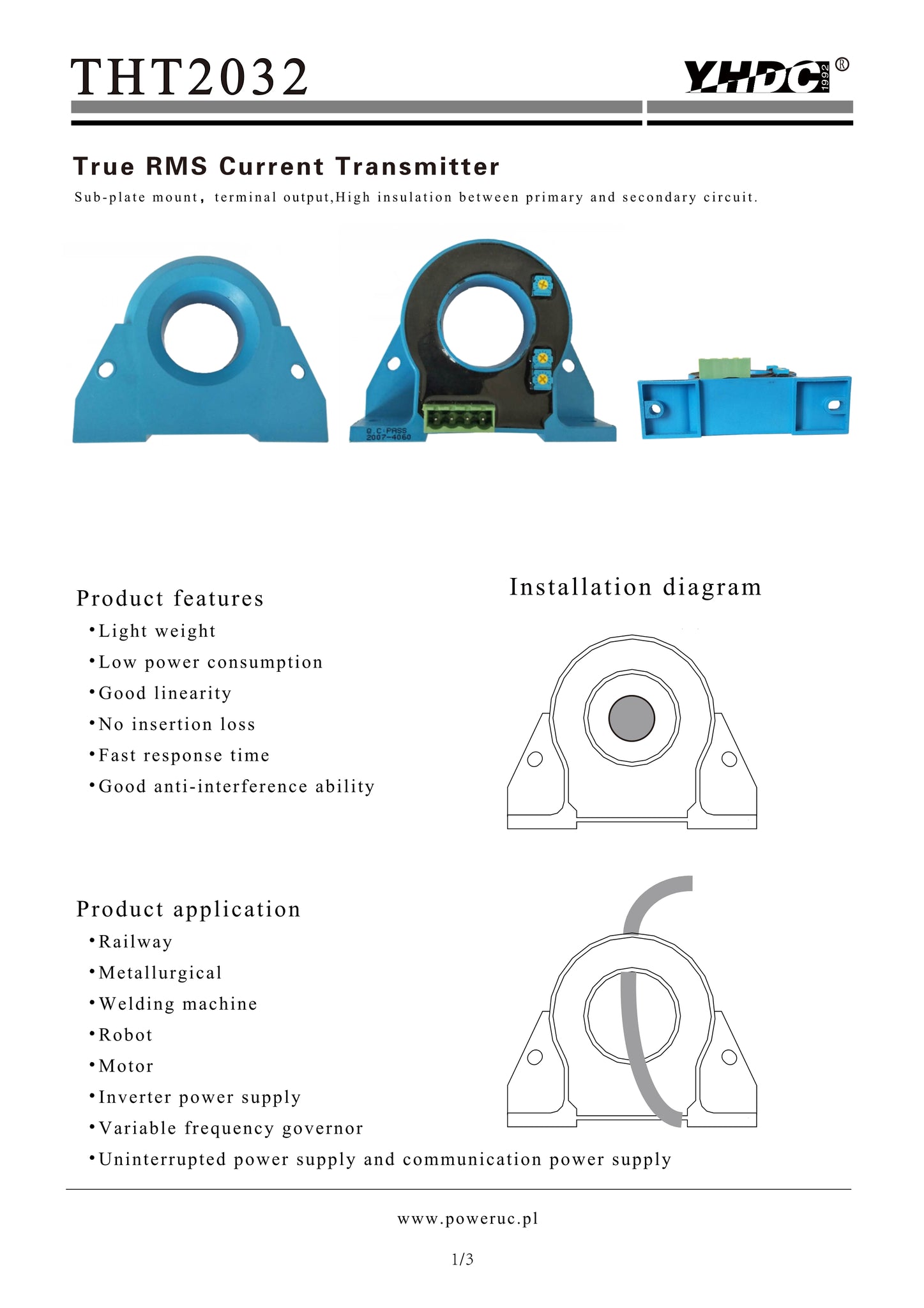

Hall circuit open loop measurement, diameter of center hole is Ø32, sub-plate mount.  Measuring AC and DC hybrid current, output DC voltage or DC current proportional to the primary side current.

Technical Index:
Flame resistance: UL94-V0
Work temperature: -10°C ~ +70°C
Storage temperature: -40°C ~ +85°C
Dielectric strength: 3.5KV 50Hz 1min

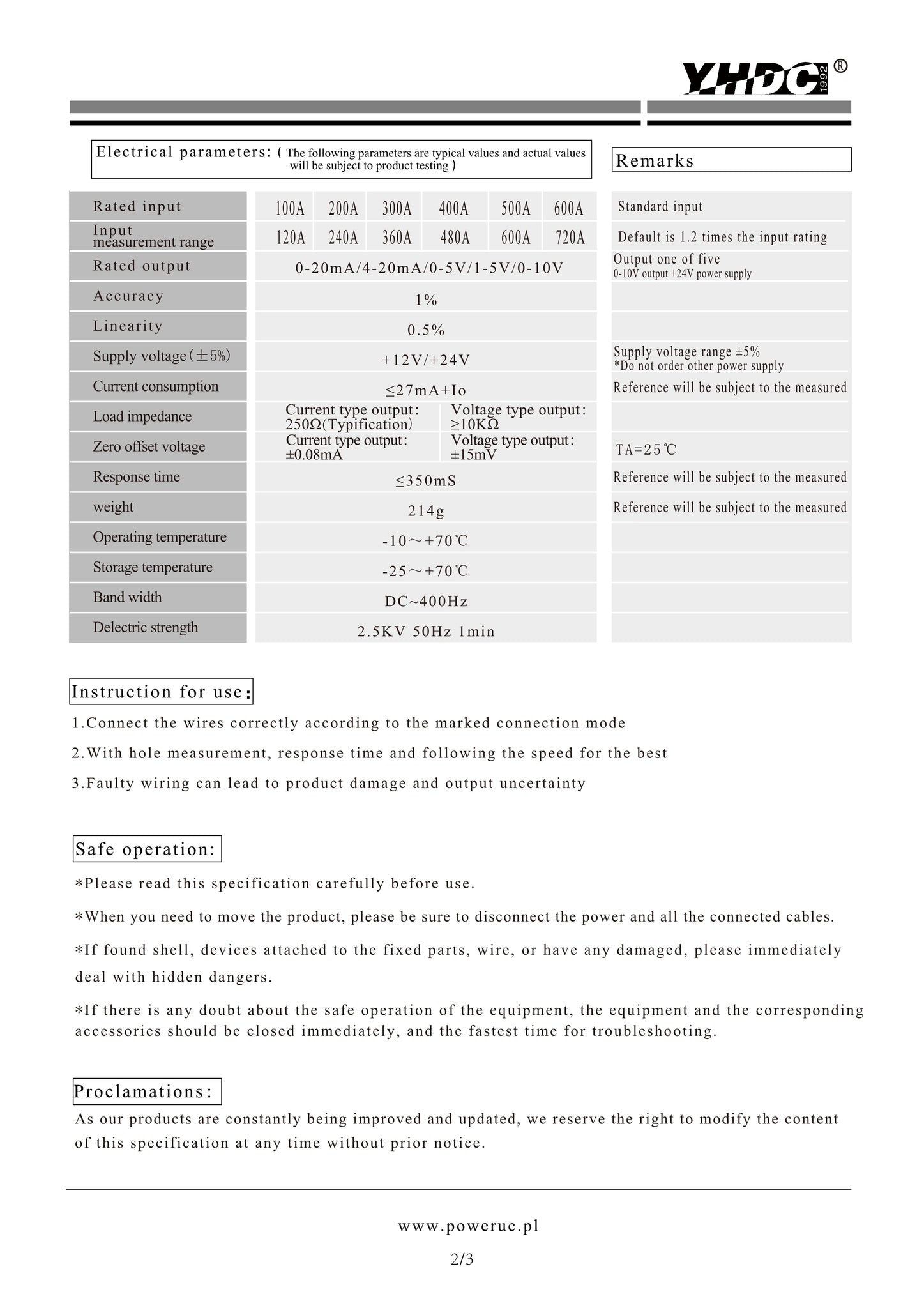

Electrical Parameters:
