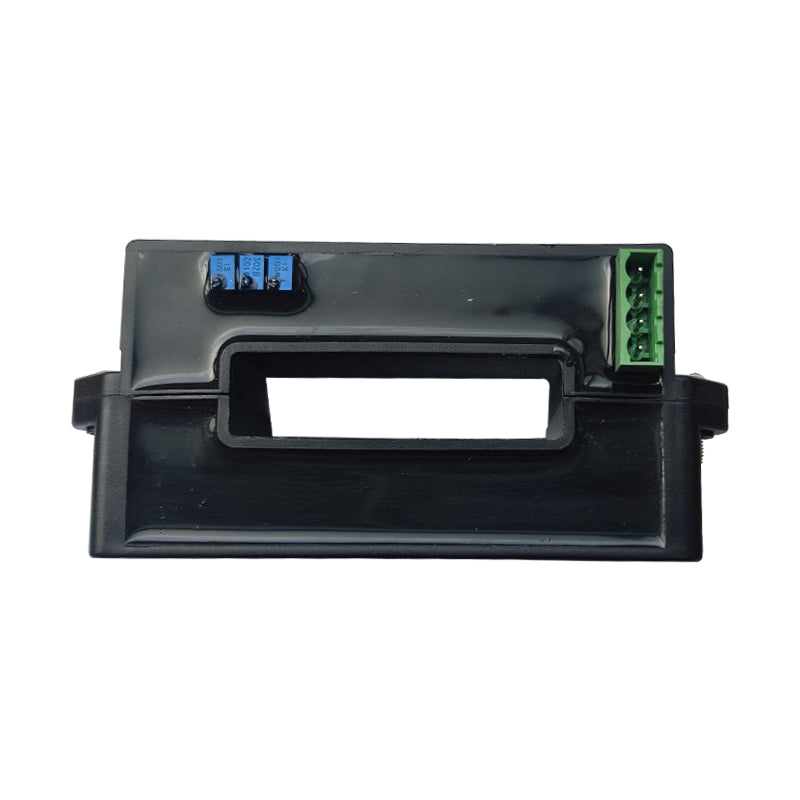

DC current transducer THST6416D Rated input 100A 500A 800A 1000A 1500A 2000A Rated output 0-20mA;4-20mA 0-5V;1-5V;0-10V

PowerUC

  • €41,31
    Unit price per
Shipping calculated at checkout.

Only 1 left!

Square hole plug terminal output,sub-plate mounting type; The faulty wiring can lead to product damage,when testing DC current please according to direction of arrow to thread, reverse threading will lead to inaccurate output. The output is linear with primary test current and the output signal can be directly enter automatic control equipment or PLC port.


Technical index:
Flame resistance: UL94-V0
Operating temperature
-10℃~+70
Storage temperature-25℃~+70
Dielectric strength: 6KV 50Hz 1min
Overload capacity:8 times
Waterproof level
IP00Terminal needs to be sealing treatment of IP44


Electric parameters:
