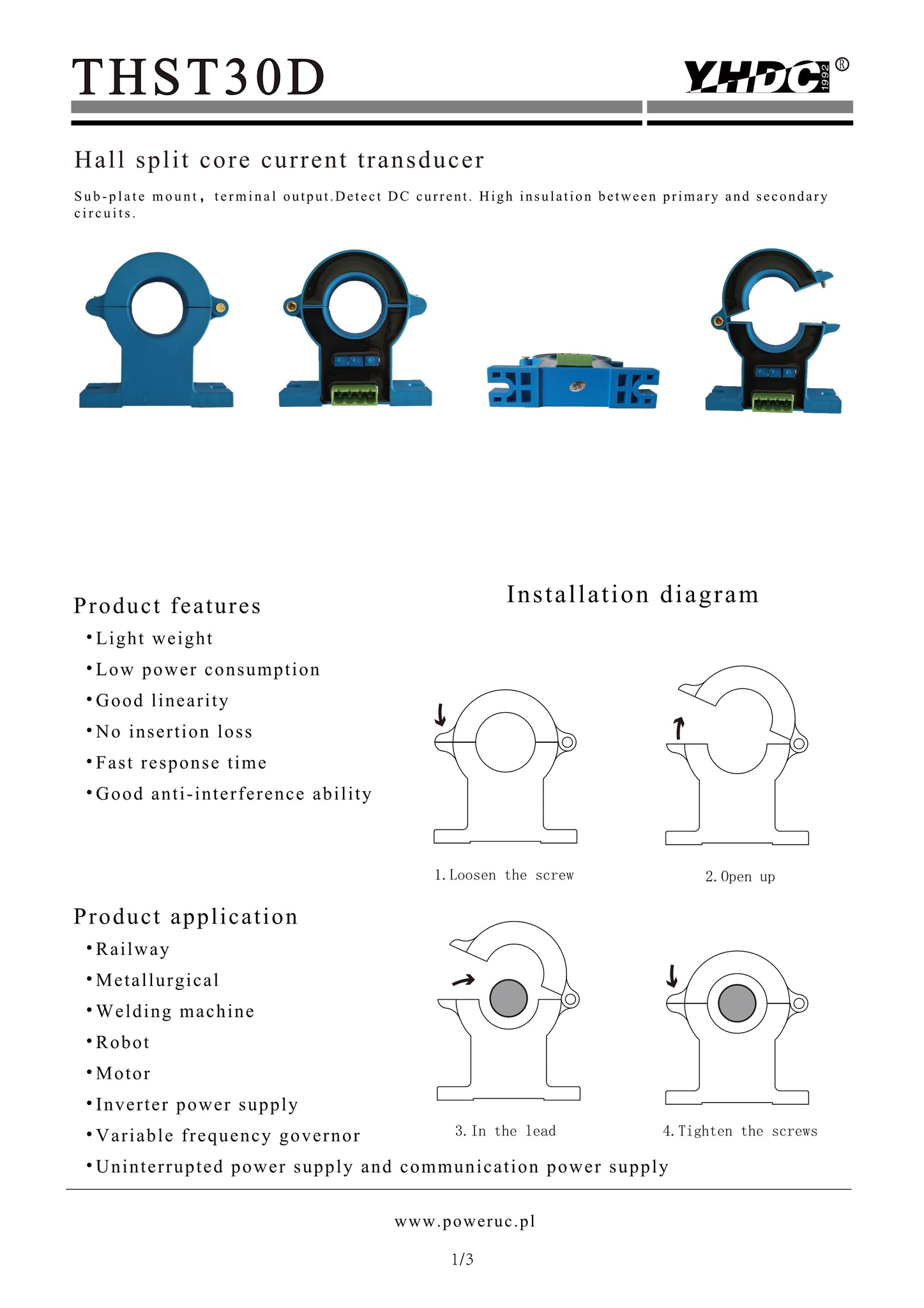

Split core DC current transducer THST30D Rated input 100A 200A 300A 500A 600A 800A 1000A Rated output 0-20mA；4-20mA ;0-5V；1-5V；0-10V

PowerUC

Shipping calculated at checkout.
Only 10 left!

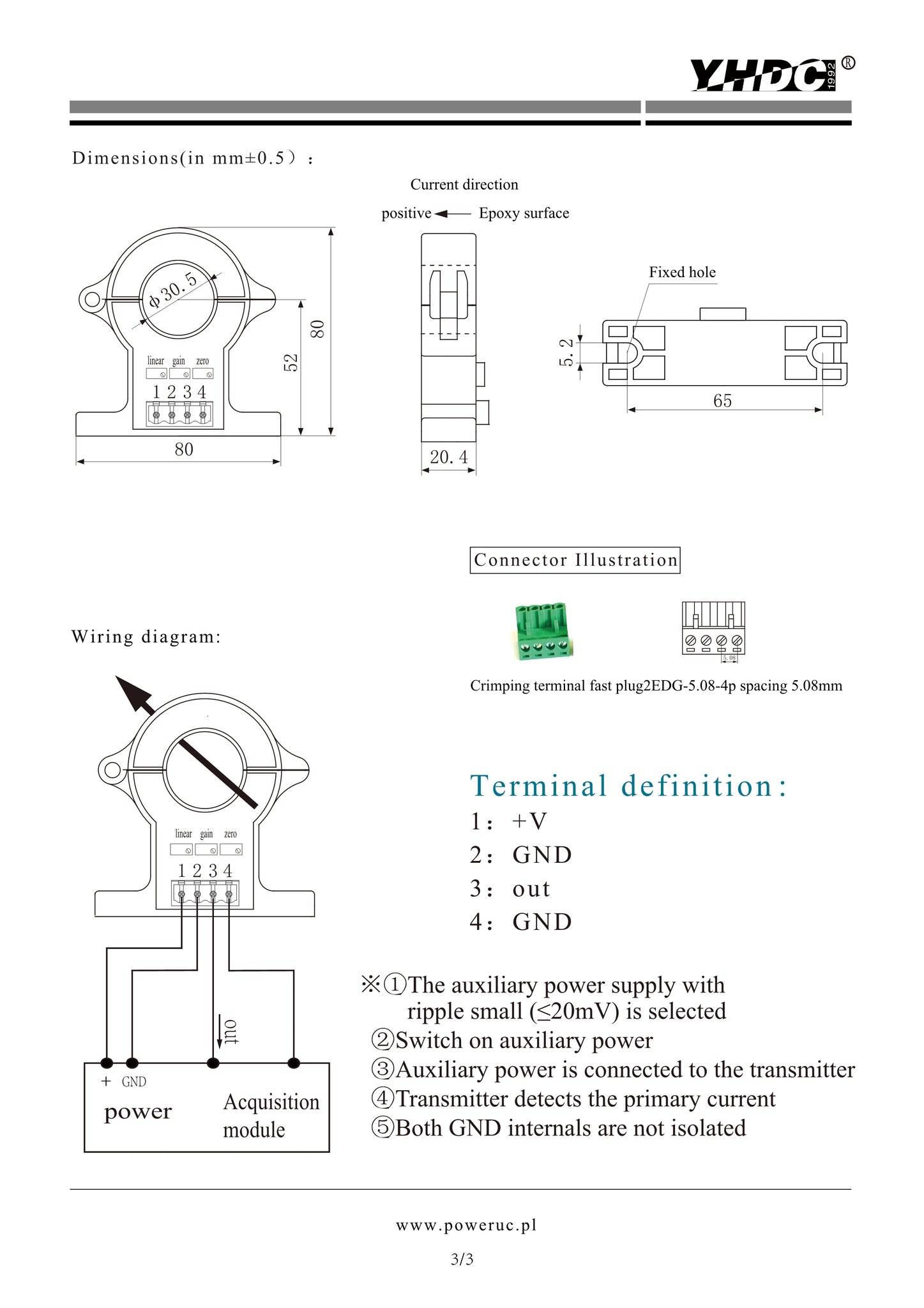

Circle plug terminal output， sub-plate mounting type;The faulty wiring can lead to product damage,Please according to direction of arrow to thread when testing DC current,reverse
threading will lead to inaccurate output，The output is linear with primary test current,and the output signal can be directly enter automatic control equipment or PLC port.


Technical index:
Flame resistance: UL94-V0
Operating temperature： -10℃～+70℃
Storage temperature： -25℃～+70℃
Dielectric strength： 2.5KV 50Hz 1min
Overload capacity:8 times
Waterproof level： IP00（Terminal needs to be sealing treatment of IP44）

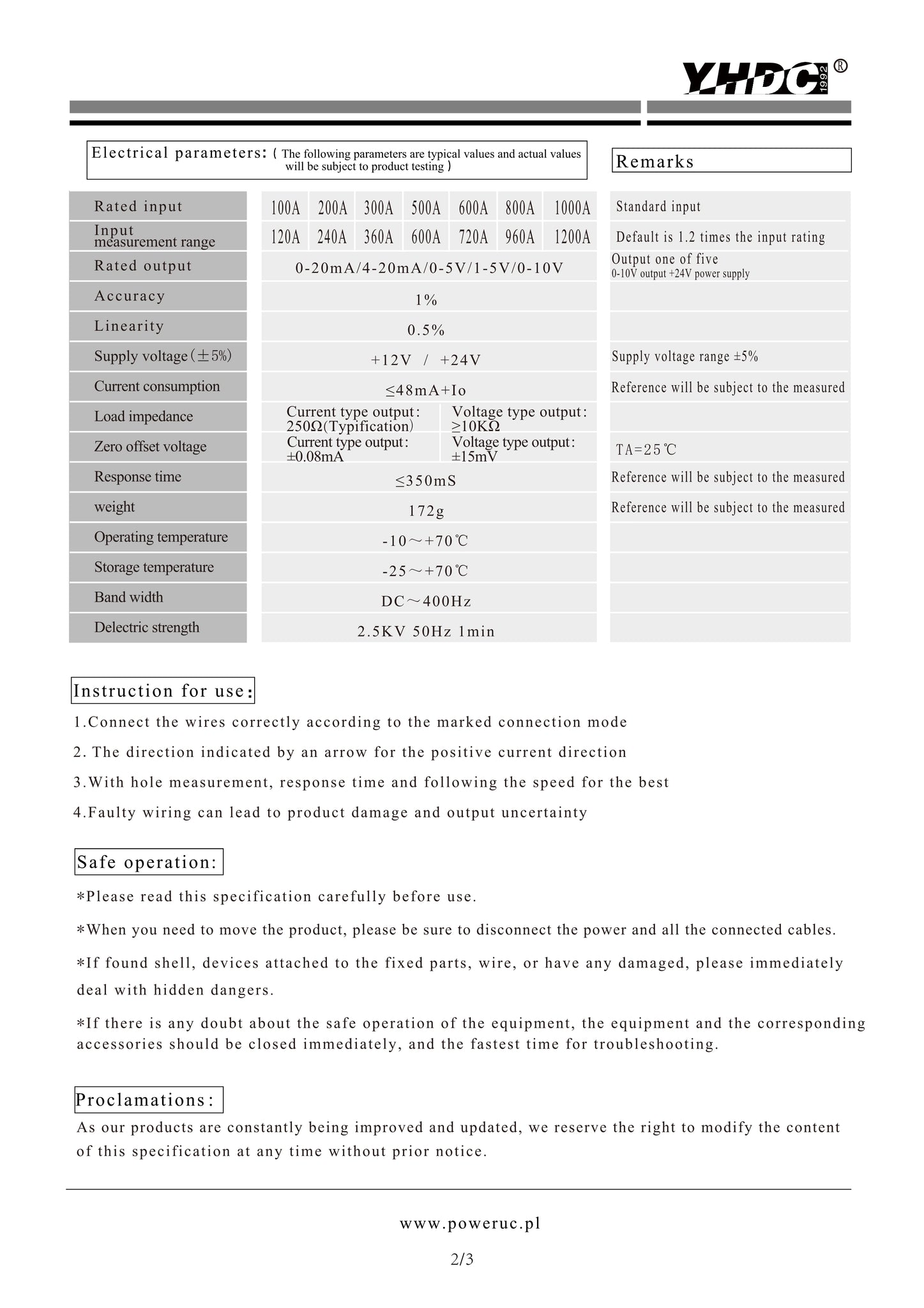

Electric parameters:

DOWNLOAD
