AC current transducer THST100A Rated input 500A 600A 800A 1000A 1500A 2000A 2500A Rated output 0-20mA;4-20mA ;0-5V;1-5V;0-10V

PowerUC

  • €0,00
    Unit price per
Shipping calculated at checkout.

Only 0 left!
Will be in stock after

Circle plug terminal outputsub-plate mounting type;The faulty wiring can lead to product damage,The output is linear with primary test current,and the output signal can be directly
enter automatic control equipment or PLC port.


Technical index:
Flame resistance: UL94-V0
Operating temperature
-10℃~+70
Storage temperature-25℃~+70
Dielectric strength: 3KV 50Hz 1min
Overload capacity:8 times
Waterproof level
IP00Terminal needs to be sealing treatment of IP44

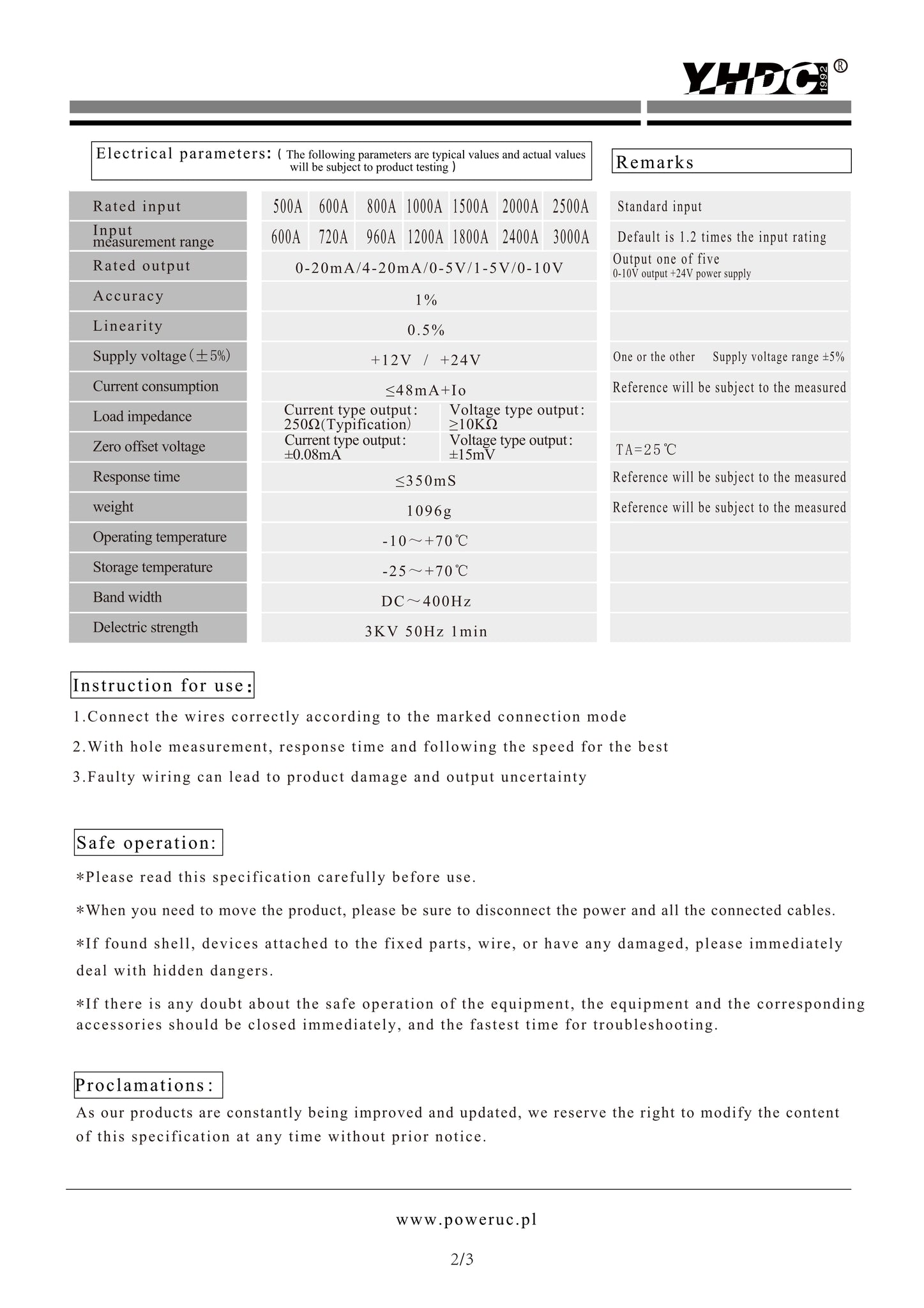

Electric parameters:
