DC Digital output current transducer table THST045D-RS485 rated input 200A 400A 600A 800A 1000A power supply +12V +24V ±15V - PowerUC

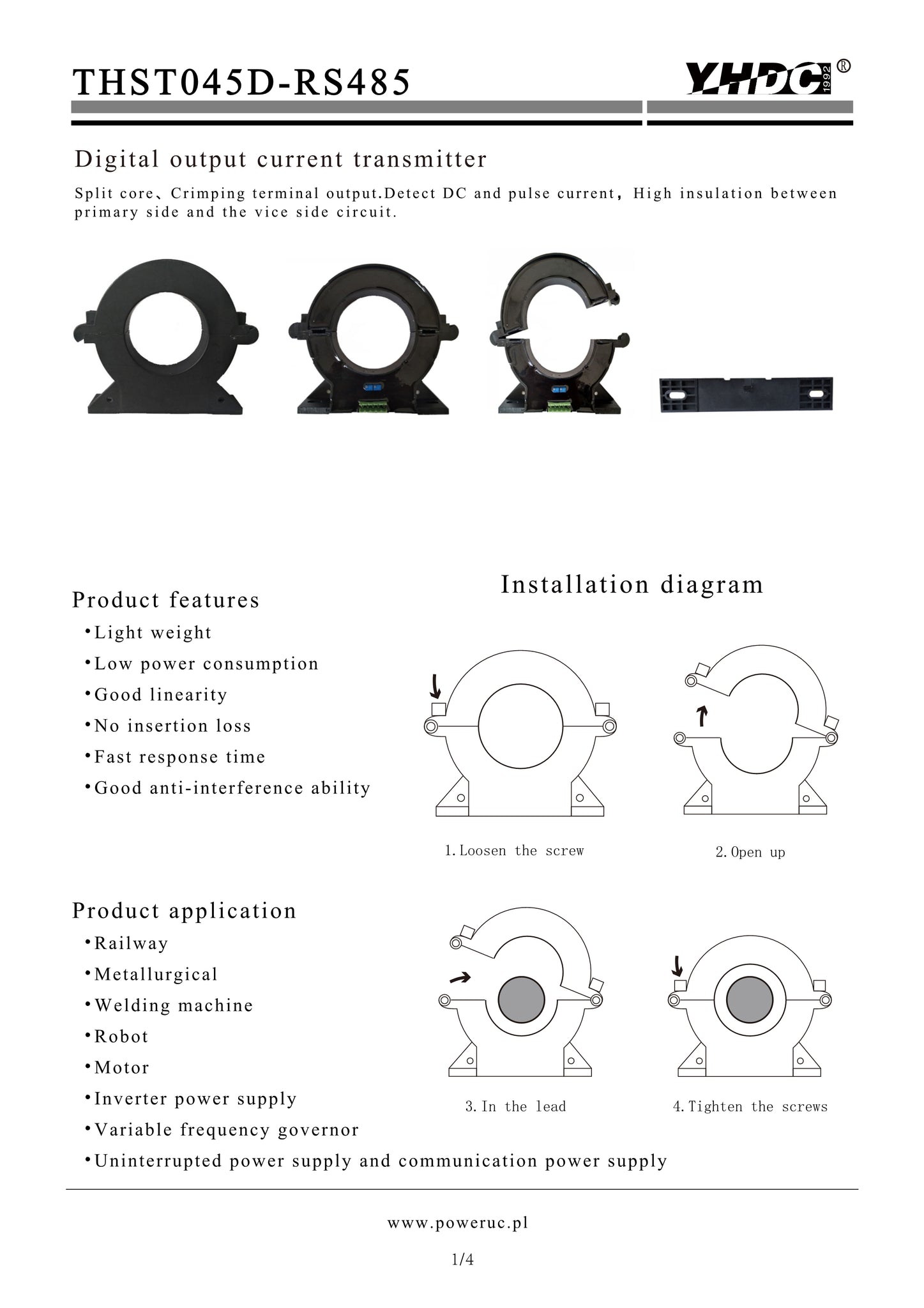

DC Digital output current transducer table THST045D-RS485 rated input 200A 400A 600A 800A 1000A power supply +12V +24V ±15V

PowerUC

Shipping calculated at checkout.
Only 0 left!
Will be in stock after

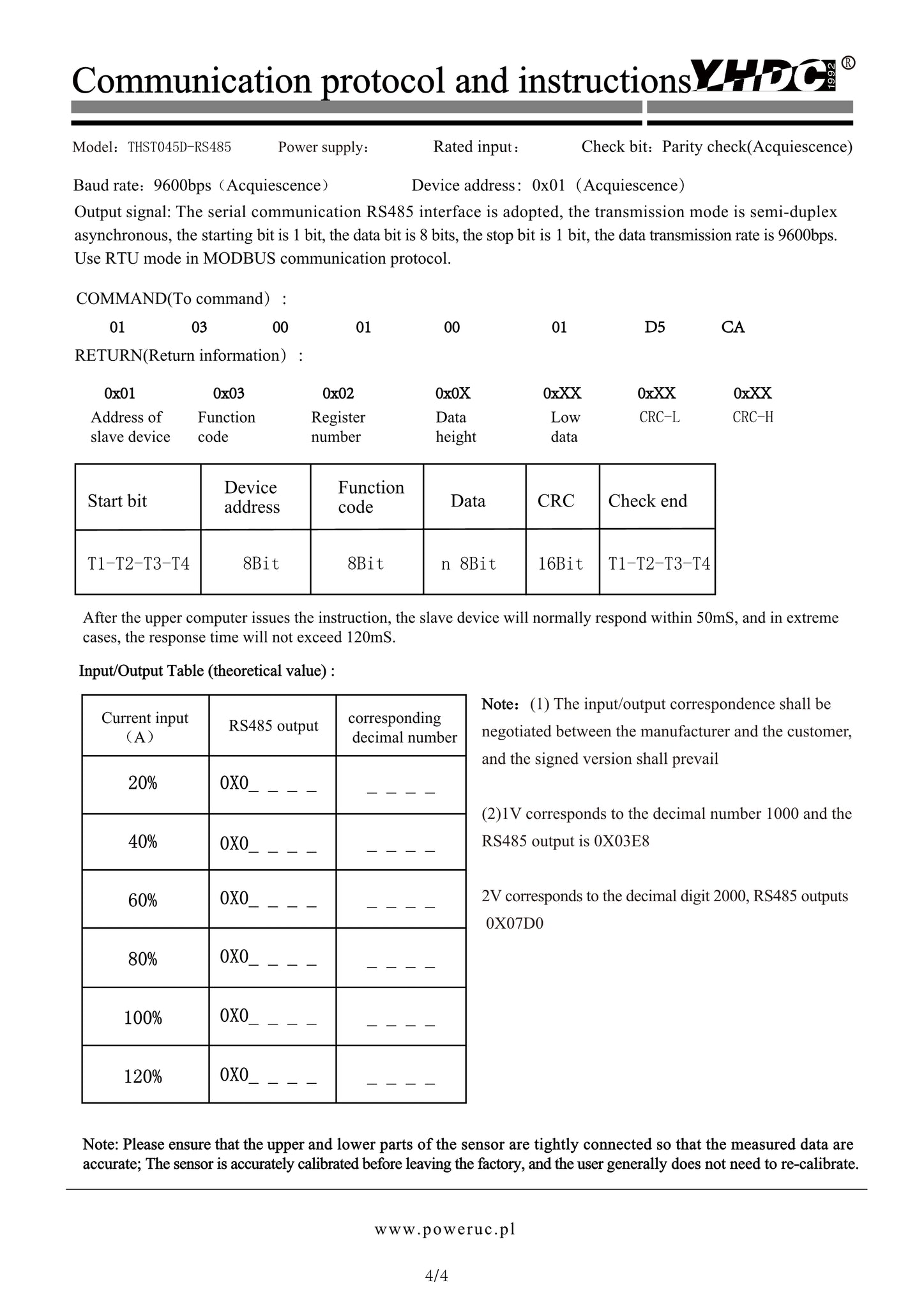

Circle plug terminal output, sub-plate mounting type. The faulty wiring can lead to product damage: The output is linear with primary test current,The output signal can be connected to adigital acquisition device that supports the RS485 communication interface to realize data acquisition and processing.


Technical index：
Flame resistance： UL94-V0
Operating temperature： -10℃～+70℃
Storage temperature： -25℃～+85℃
Dielectric strength： 2.5KV 50Hz 1min
Waterproof level:IP00

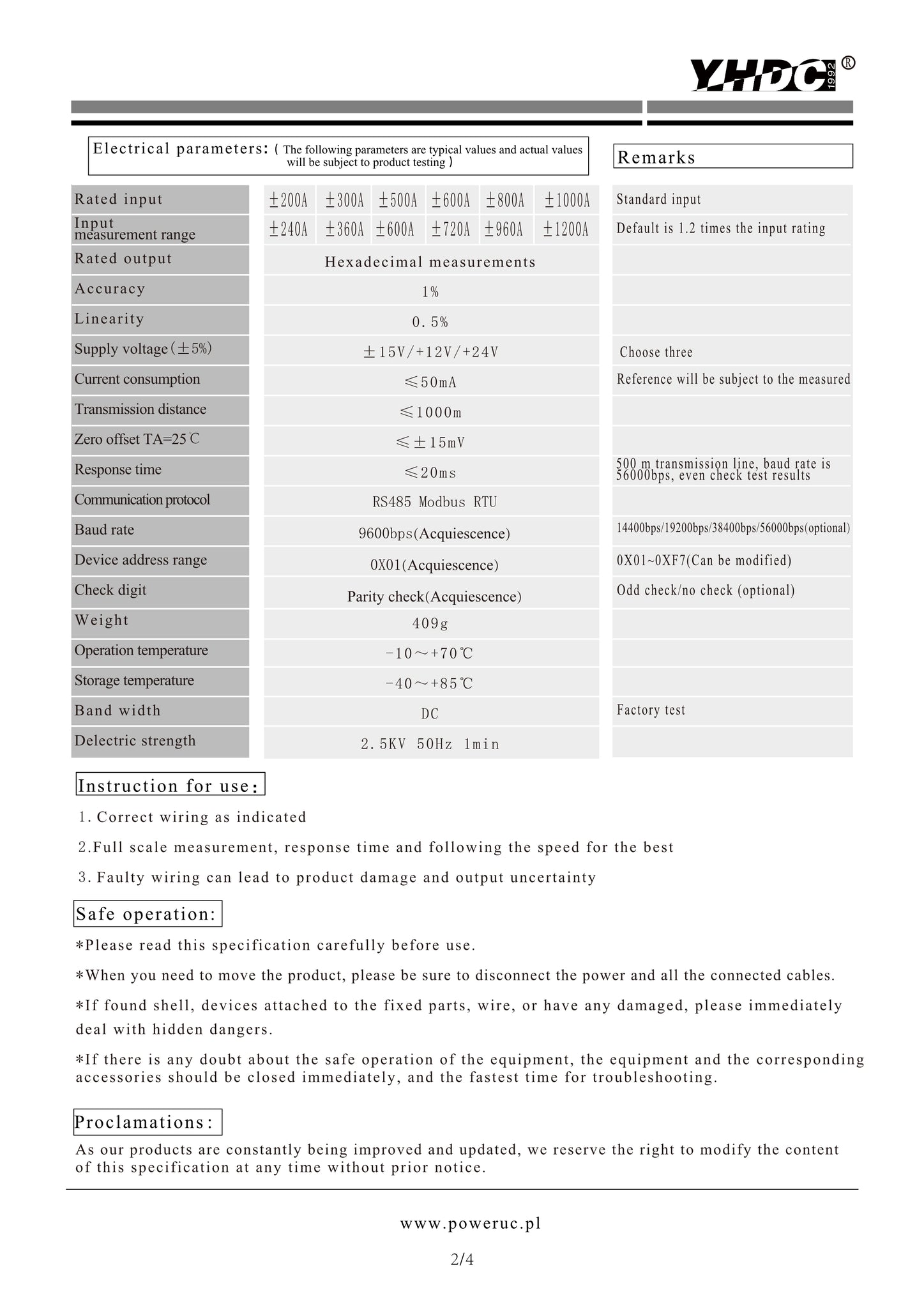

Electric parameters：

DOWNLOAD
