AC voltage transducer TCV301GB Rated input 300V/500V/1000V Rated output 0-20mA; 4-20mA; 0-5V;1-5V;0-10V

PowerUC

  • €57,40
    Unit price per
Shipping calculated at checkout.

Only 2 left!

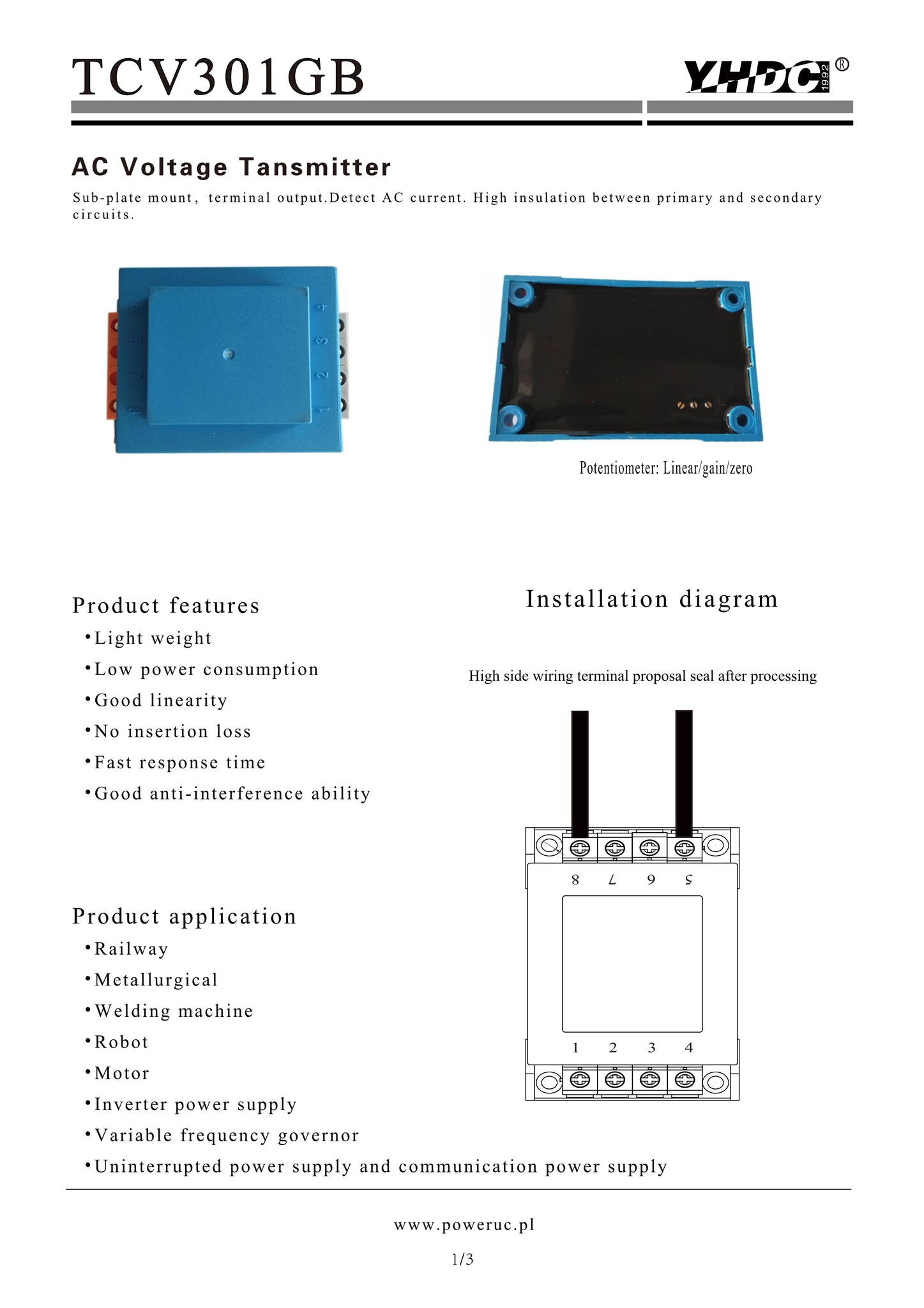

Terminal output,sub-plate mounting type;The faulty wiring can lead to product damage,When measuring DC voltage, +HT -HT is not allowed to reverse,The output is linear with primary test current,and the output signal can be directly enter automatic control equipment or PLC port.

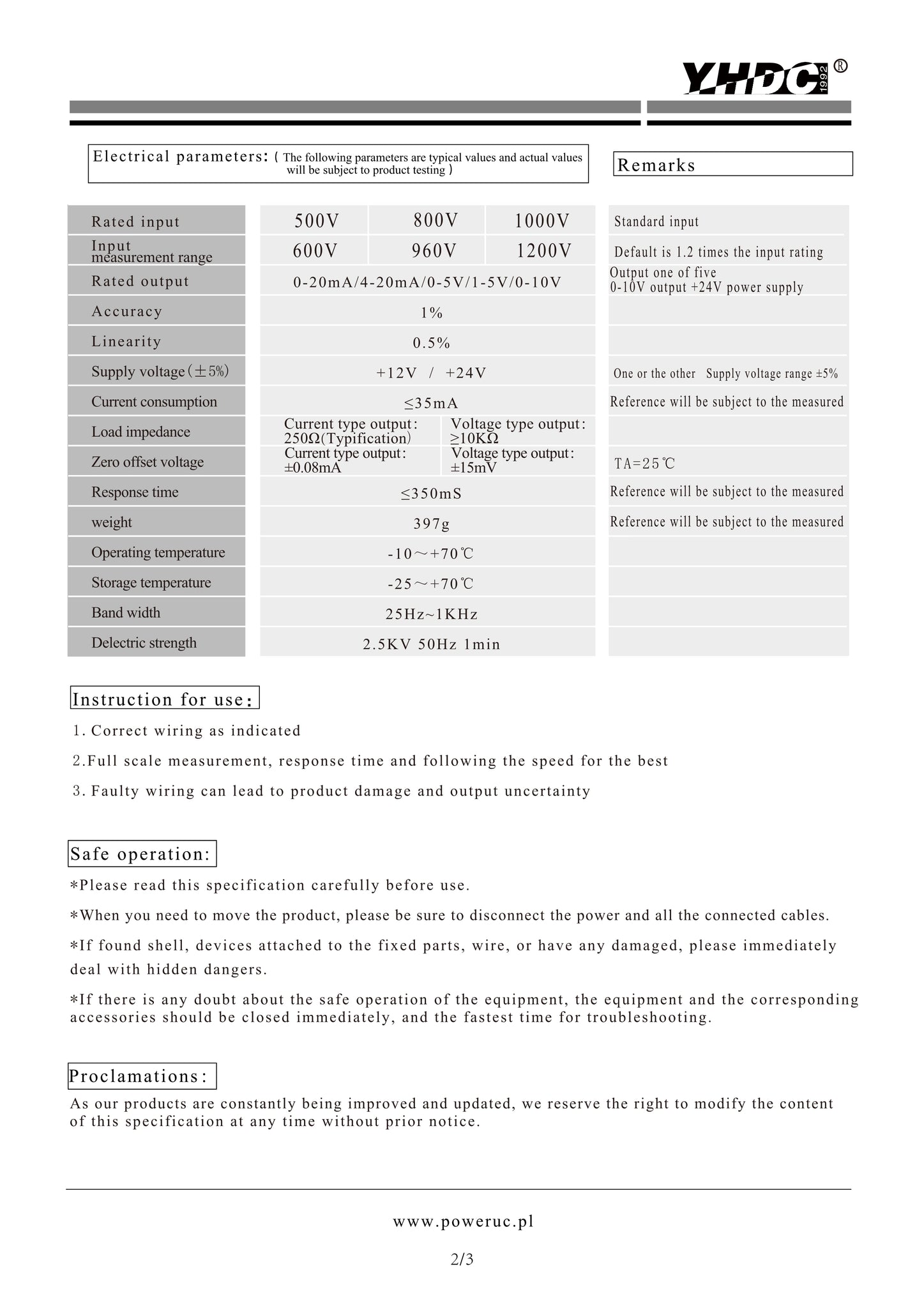

Technical index:
Flame resistance: UL94-V0
Operating temperature
 -10℃~+70
Storage temperature -25℃~+70
Dielectric strength 2.5KV 50Hz 1min
Overload capacity:8 times
Waterproof level
 IP00Terminal needs to be sealing treatment of IP44
