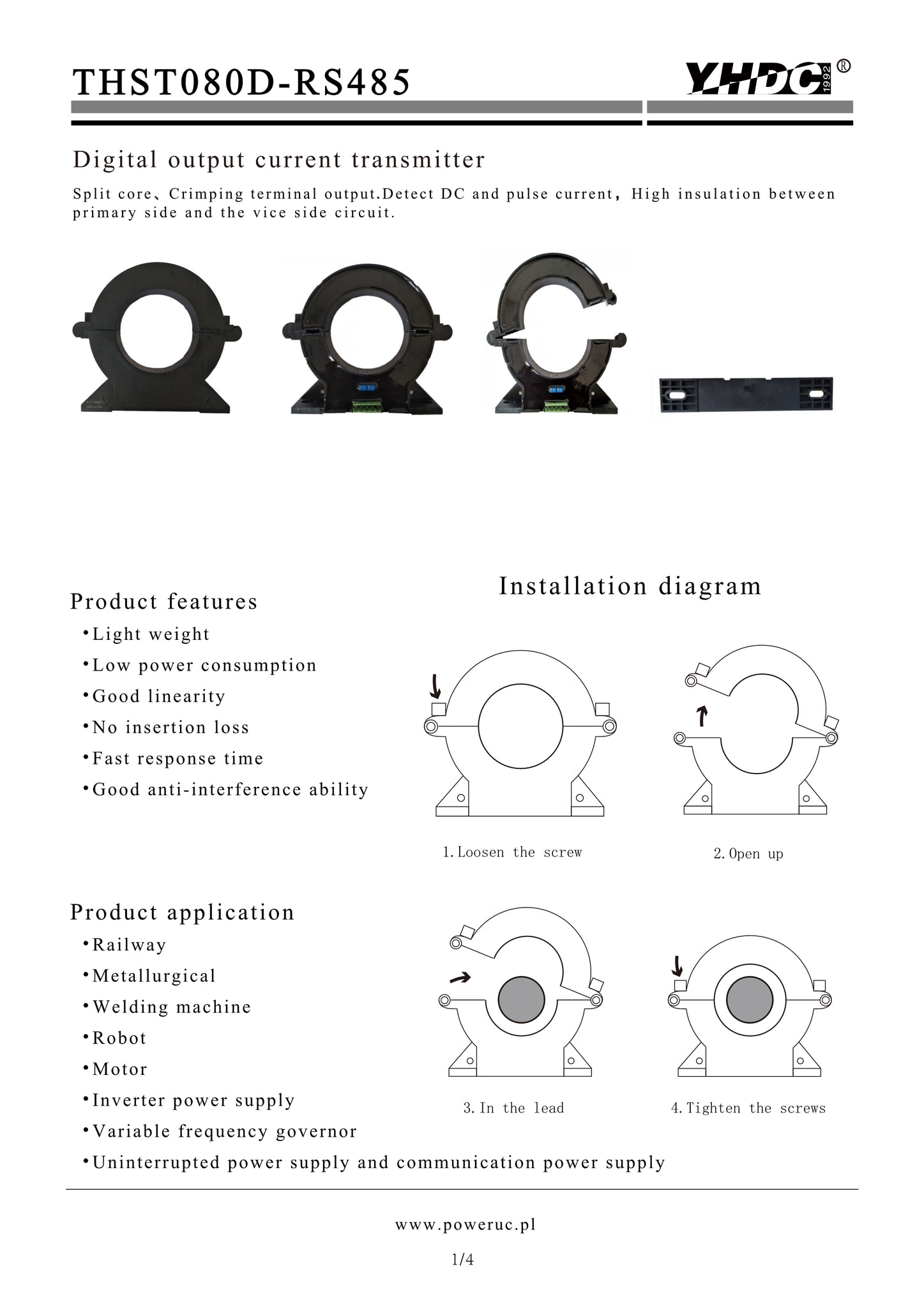

DC Digital output current transducer table THST080D-RS485 rated input 400A 600A 800A 1000A 1200A 1400A 1600A 1800A 2000A power supply +12V +24V ±15V - PowerUC

DC Digital output current transducer table THST080D-RS485 rated input 400A 600A 800A 1000A 1200A 1400A 1600A 1800A 2000A power supply +12V +24V ±15V

PowerUC

Shipping calculated at checkout.
Only 0 left!
Will be in stock after

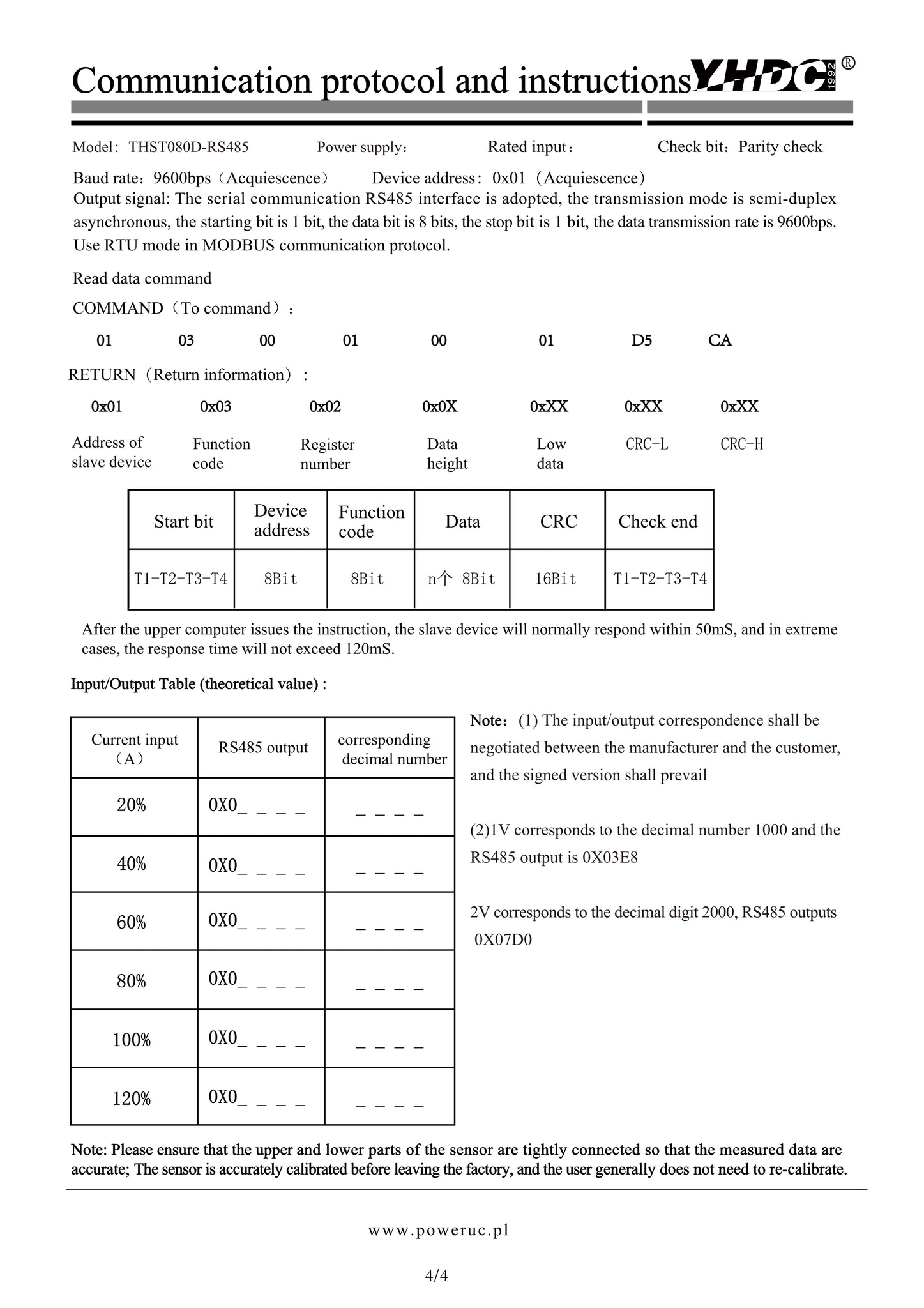

Circle plug terminal output， sub-plate mounting type;The faulty wiring can lead to product damage:The output is linear with primary test current,The output signal can be connected to a
digital acquisition device that supports the RS485 communication interface to realize data acquisition and processing.

Technical index：
Flame resistance： UL94-V0
Operating temperature： -10℃～+70℃
Storage temperature： -40℃～+85℃
Dielectric strength： 2.5KV 50Hz 1min
Waterproof level:IP00

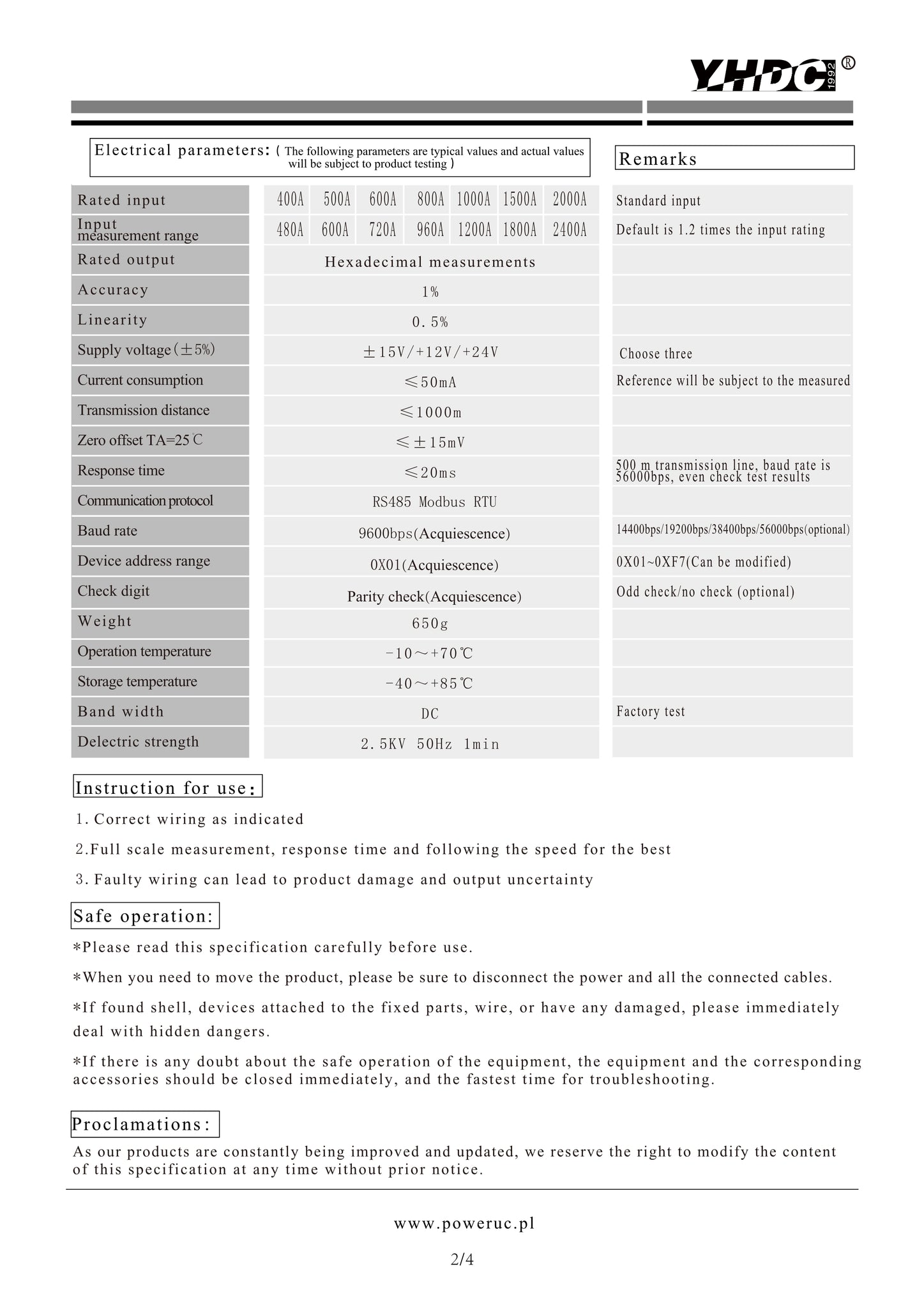

Electric parameters：

DOWNLOAD
