AC voltage transducer TCV600GB Rated input 1000V/2000V/3000V/4000V Rated output 0-20mA; 4-20mA; 0-5V; 1-5V; 0-10V - PowerUC

AC voltage transducer TCV600GB Rated input 1000V/2000V/3000V/4000V Rated output 0-20mA; 4-20mA; 0-5V; 1-5V; 0-10V

PowerUC

  • €0,00
    Unit price per
Shipping calculated at checkout.

Only 0 left!
Will be in stock after

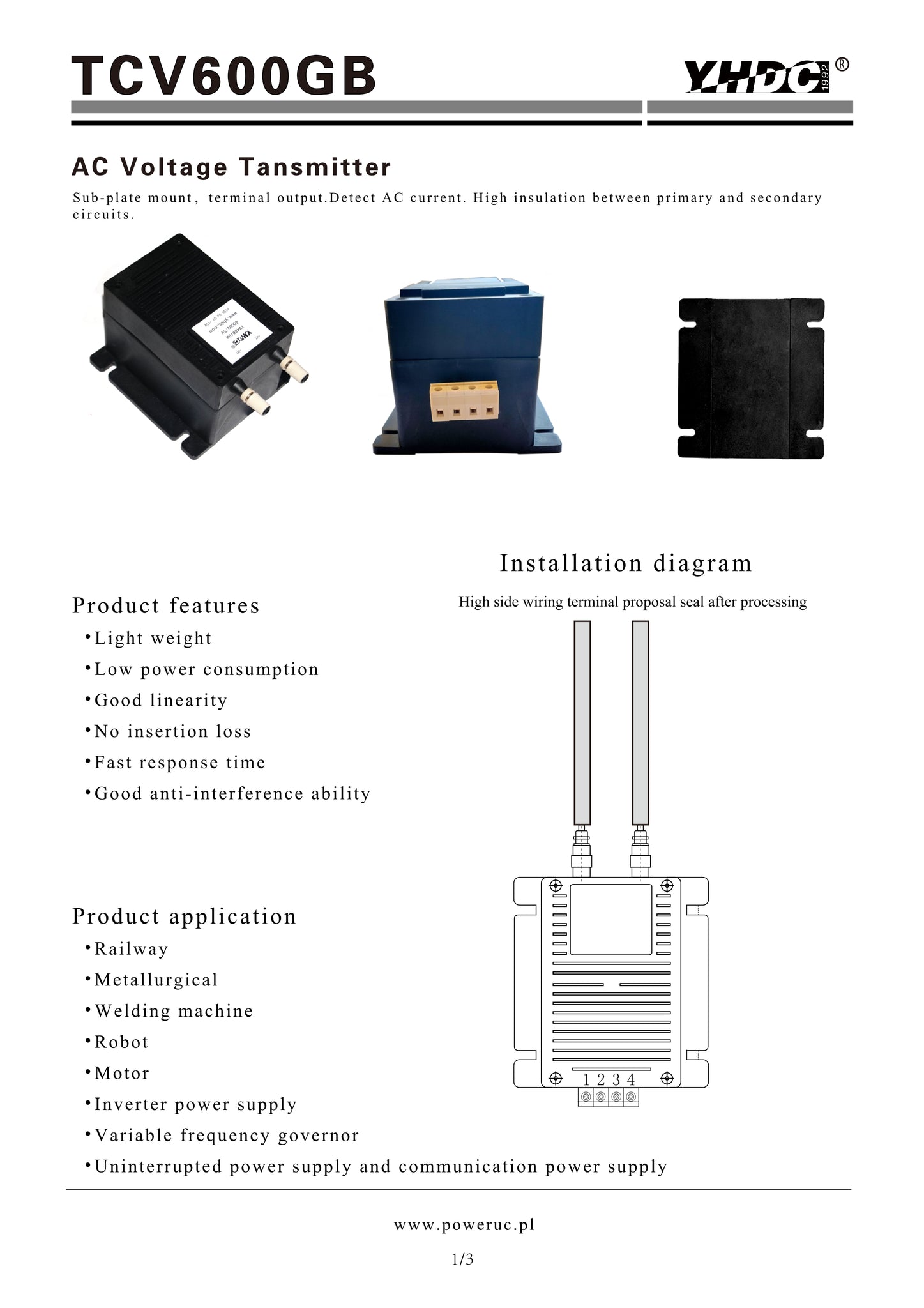

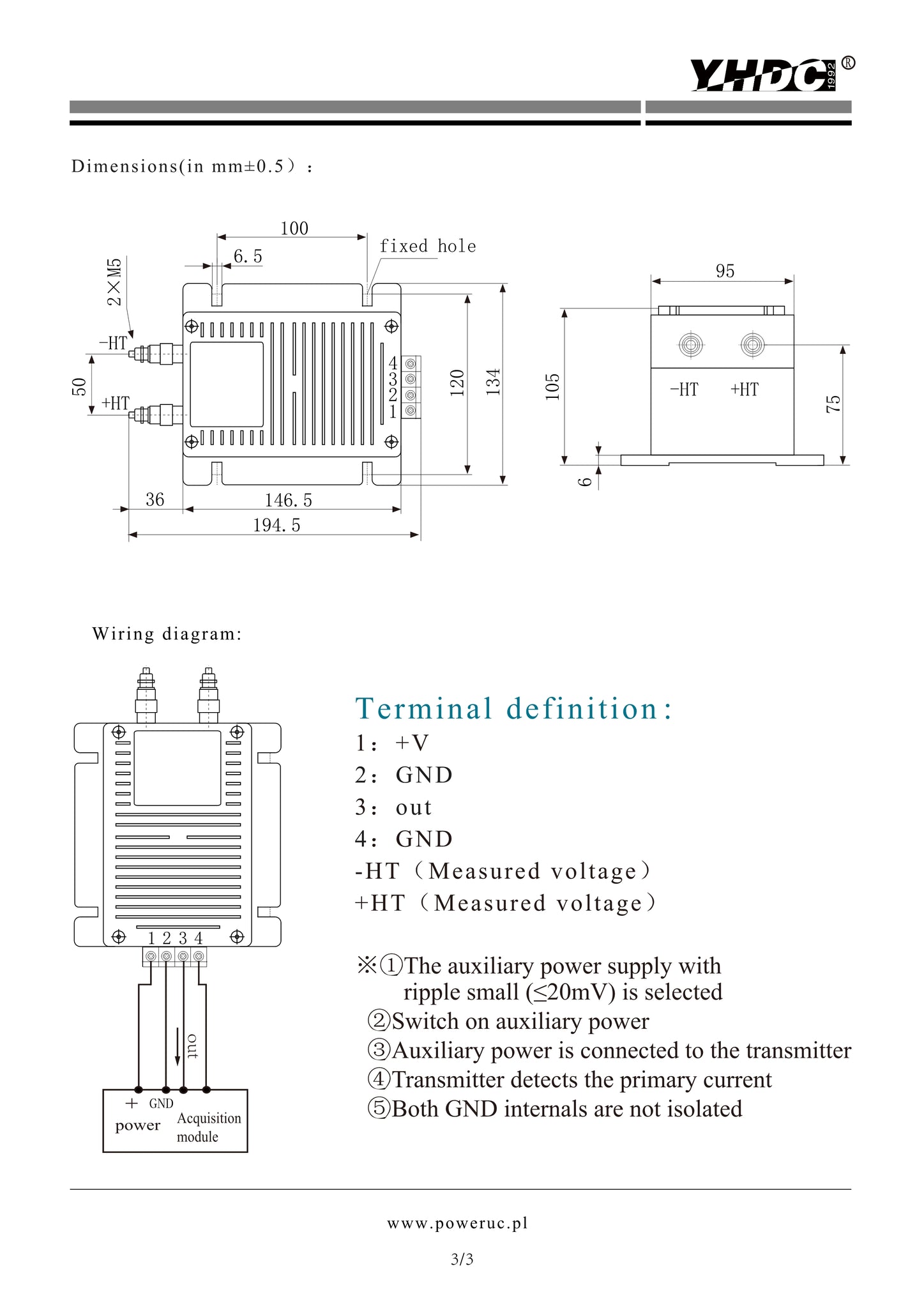

Terminal output, sub-plate mounting type;The faulty wiring can lead to product damage,The output is linear with primary test voltage,and the output signal can be directly enter automatic
control equipment or PLC port.


Technical index
Flame resistanceUL94-V0
Operating temperature
-10℃~+70
Storage temperature-25℃~+70
Dielectric strength: 10KV 50Hz 1min
Overload capacity
8times 0.1S
Waterproof level
IP00IP44Terminal need to dispose

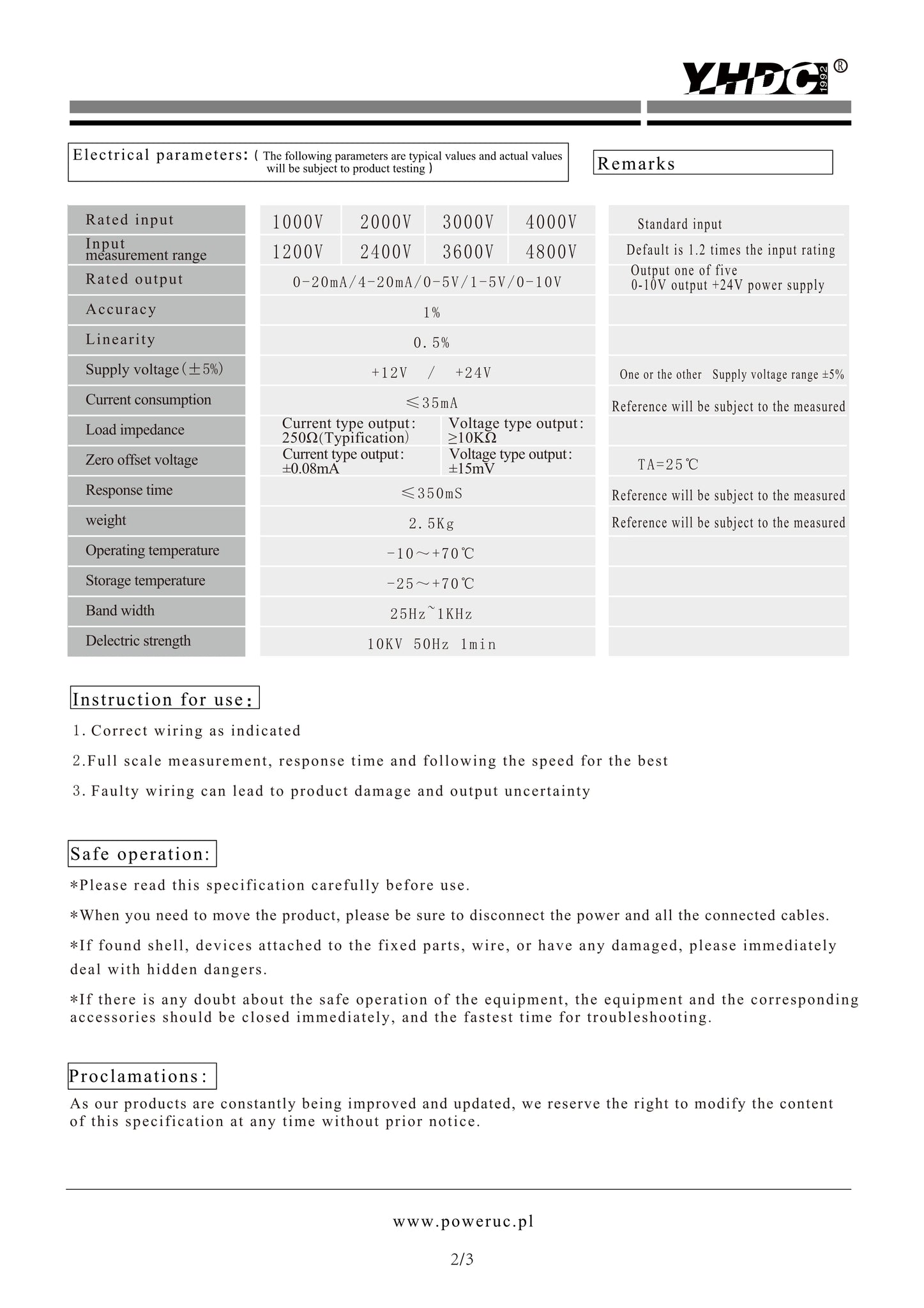

Electric parameters

DOWNLOAD
