![AC voltage transducer TCV4117TB Rated input 200V/300V/400V/500V Rated output 0-20mA; 4-20mA; 0-5V;1-5V;0-10V - PowerUC](http://www.poweruc.pl/cdn/shop/files/TCV4117TB_8367cb2c-df67-4ab6-9183-815245fd595b_{width}x.jpg?v=1685065483)

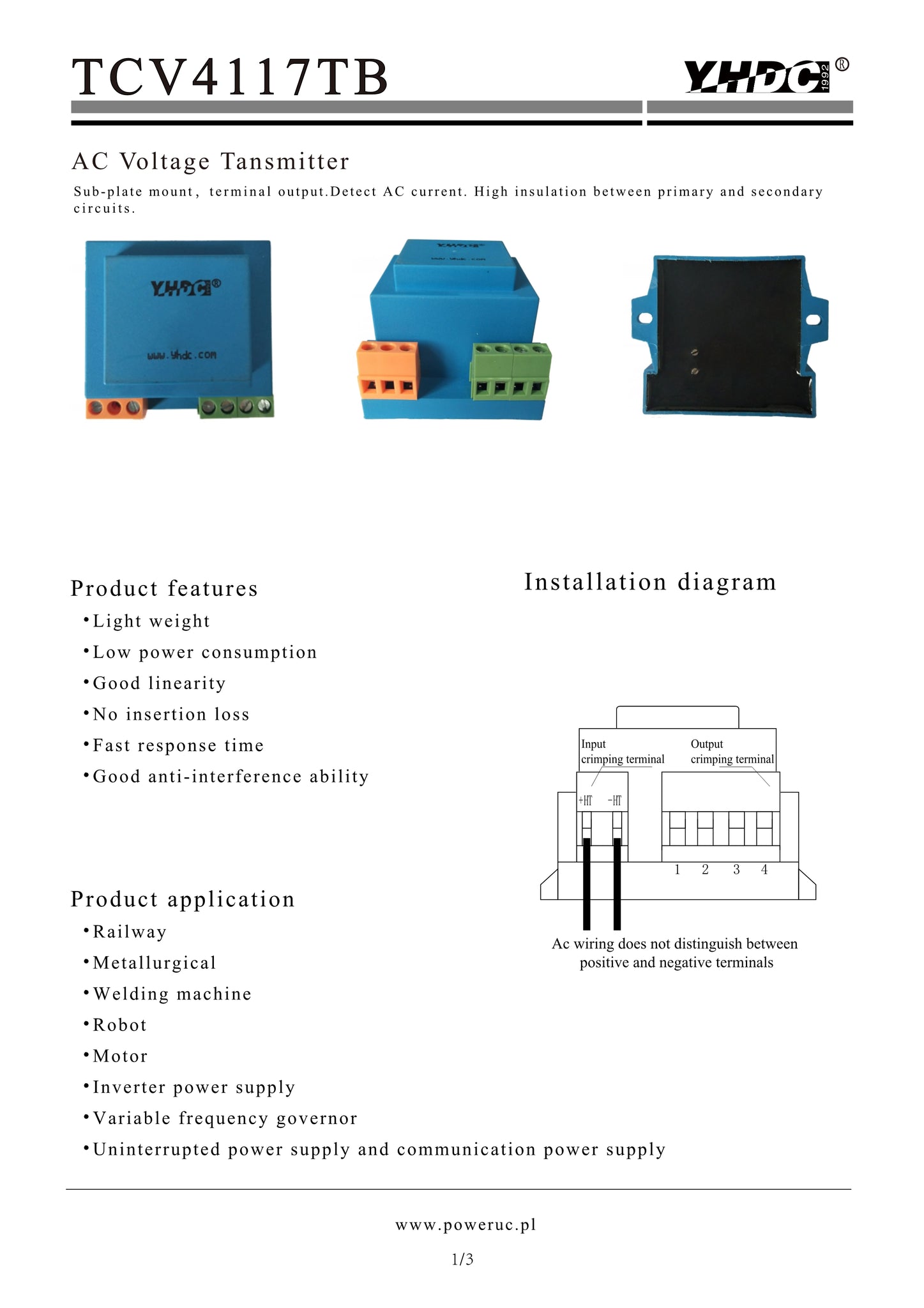

AC voltage transducer TCV4117TB Rated input 200V/300V/400V/500V Rated output 0-20mA; 4-20mA; 0-5V;1-5V;0-10V

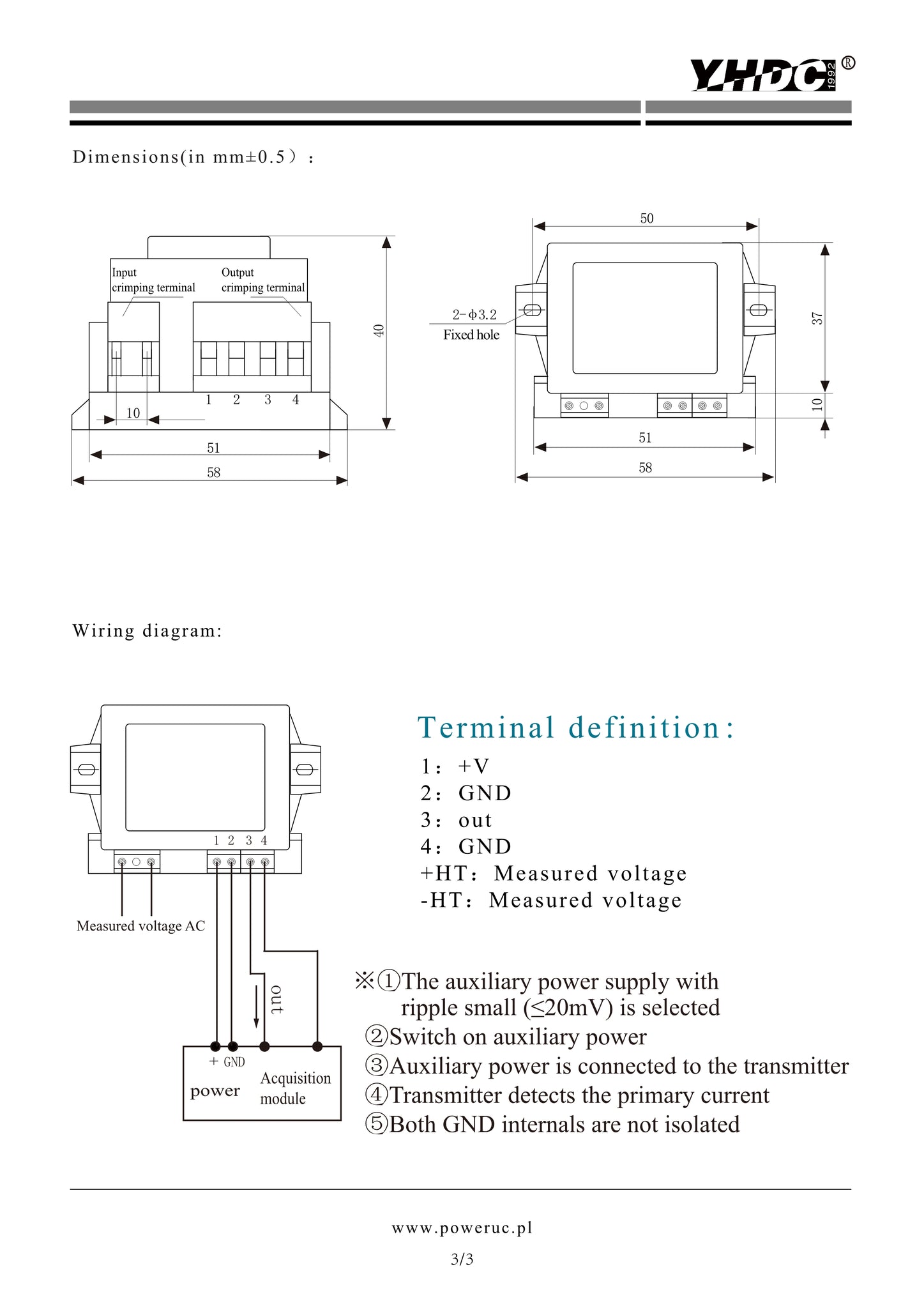

Terminal output,sub-plate mounting type;The faulty wiring can lead to product damage,The output is linear with primary test current,and the output signal can be directly enter automatic
control equipment or PLC port.
Technical index:
Flame resistance: UL94-V0
Operating temperature: -10℃~+70℃
Storage temperature: -25℃~+70℃
Dielectric strength: 2.5KV 50Hz 1min
Overload capacity: 8times 0.1S
Waterproof level: IP00(IP44Terminal need to dispose)

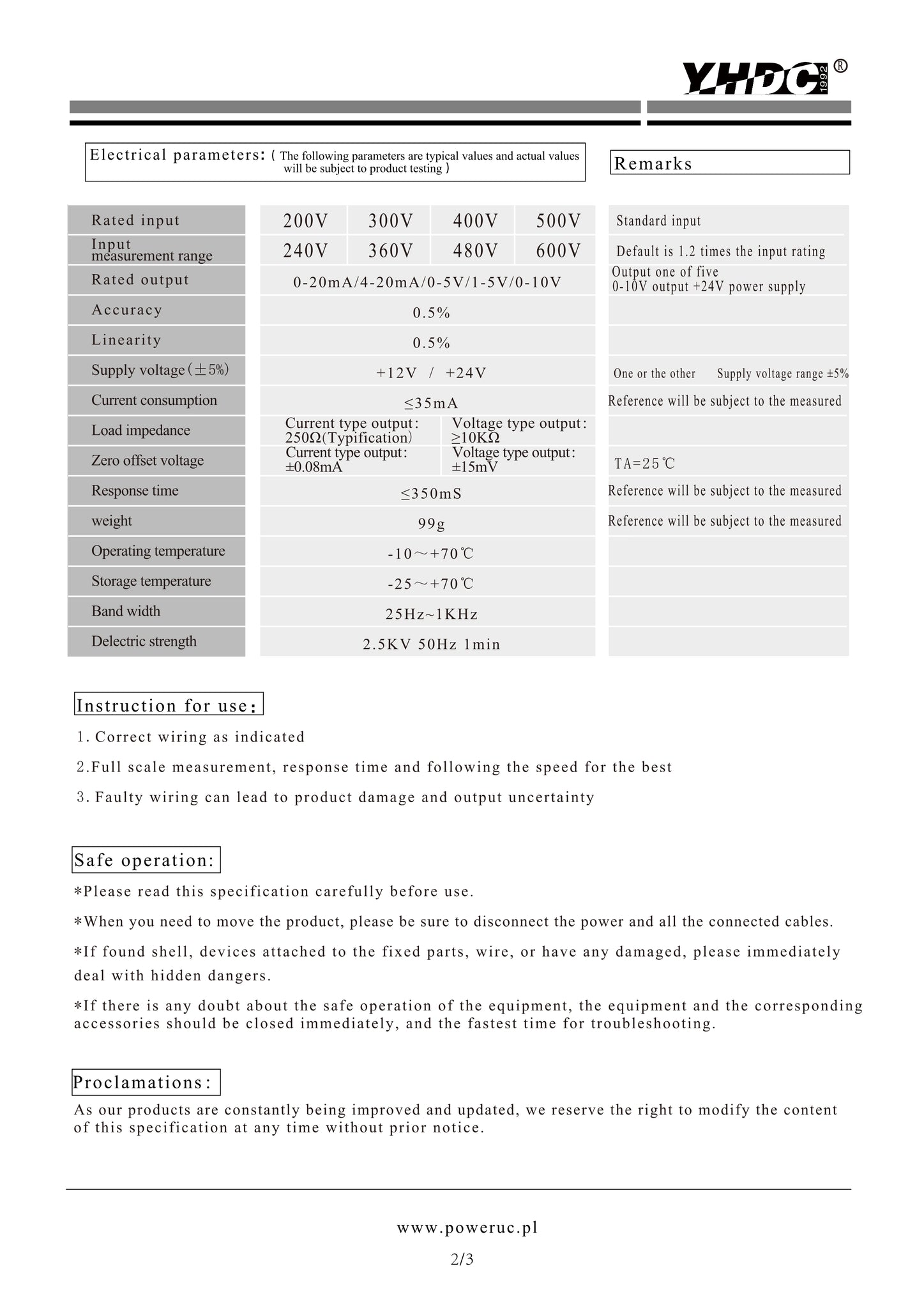

Electric parameters:
DOWNLOAD
