AC current transducer TCA2020 Rated input 50A 100A 200A Rated output 0-20;4-20mA 0-5;1-5;0-10V - PowerUC

AC current transducer TCA2020 Rated input 50A 100A 200A Rated output 0-20;4-20mA 0-5;1-5;0-10V

PowerUC

  • €24,55
    Unit price per
Shipping calculated at checkout.

Only 0 left!
Will be in stock after

Circle plug terminal output,sub-plate mounting type;The faulty wiring can lead to product damage,The output is linear with primary test current,and the output signal can be directly enter
automatic control equipment or PLC port.


Technical index
Flame resistance UL94-V0
Operating temperature
 -10℃~+70
Storage temperature -25℃~+70
Dielectric strength 2.5KV 50Hz 1min
Overload capacity
 8times 0.1S
Waterproof level
 IP00IP44Terminal need to dispose

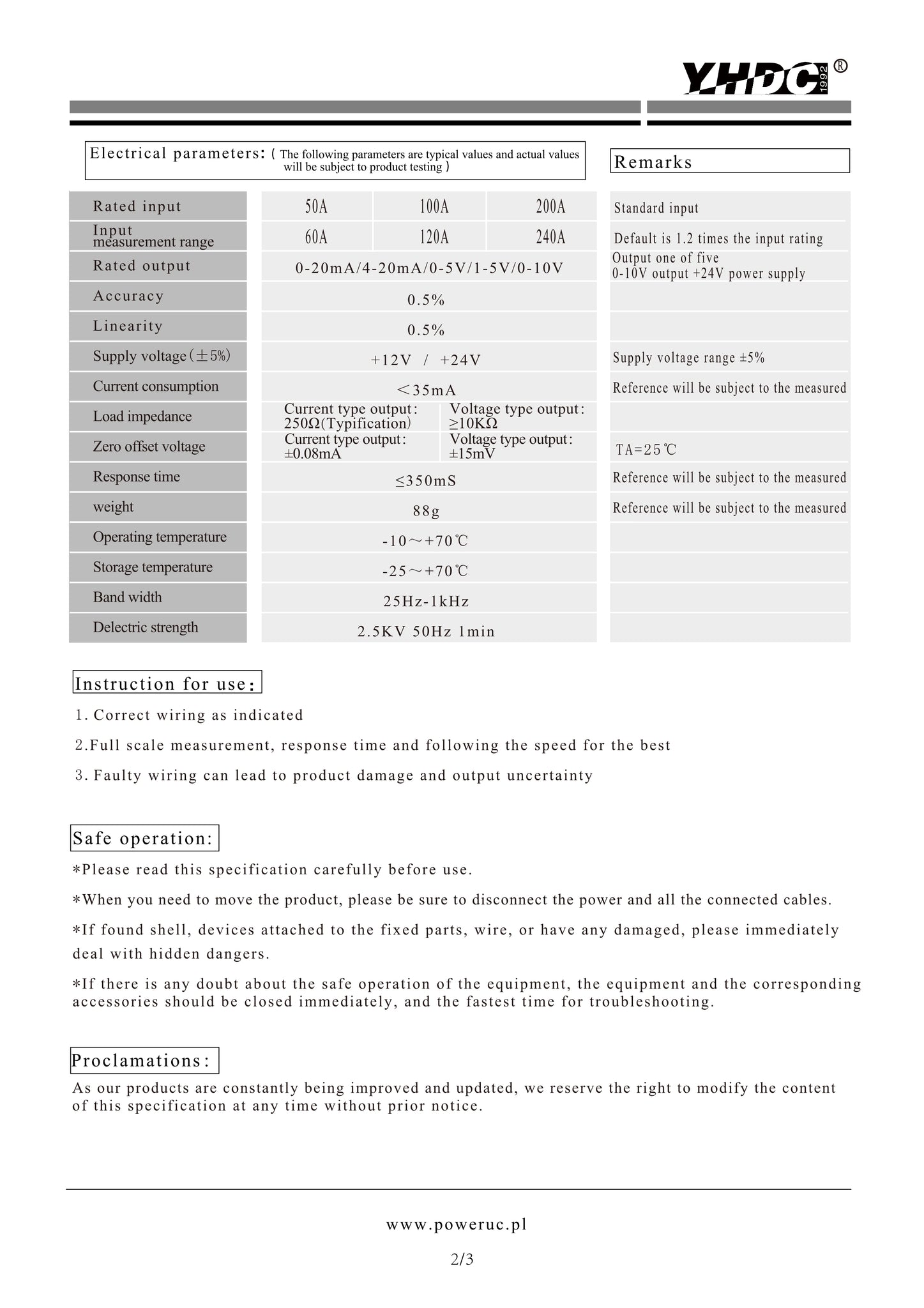

Electric Parameter:


DOWNLOAD
