AC current transducer THA3106A Rated input 50A/100A/200A/400A/500A Rated output 0-20mA ;4-20mA ;0-5V ;1-5V ;0-10V

AC current transducer THA3106A Rated input 50A/100A/200A/400A/500A Rated output 0-20mA ;4-20mA ;0-5V ;1-5V ;0-10V

PowerUC

  • €0,00
    Unit price per
Shipping calculated at checkout.

Only 0 left!
Will be in stock after

Circle plug terminal output
Sub-plate installation
The faulty wiring can lead to product damage
The output is linear with primary test current and the output signal can be directly enter automatic control equipment or PLC port.

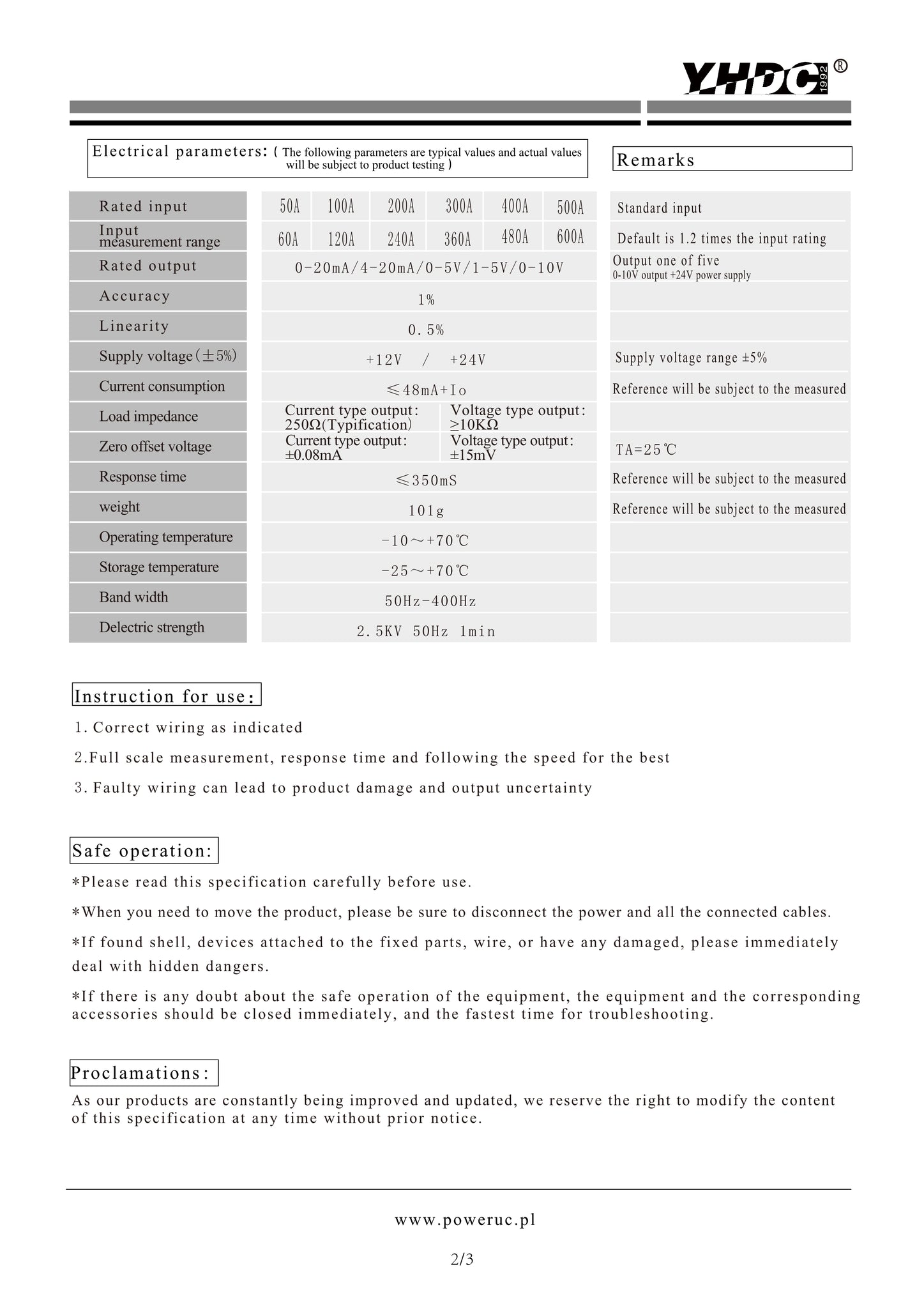

Safety Indexes:
Flame retardant: UL94-V0
Working temperature: -10°C ~ +70°C
Storage temperature: -25°C ~ +70°C
Dielectric strength: 2.5KV 50Hz 1min
Overload capacity: 8times 0.1s
Waterproof level: IP00 (IP44 Terminal need to dispose)

Terminal Need to Dispose:
