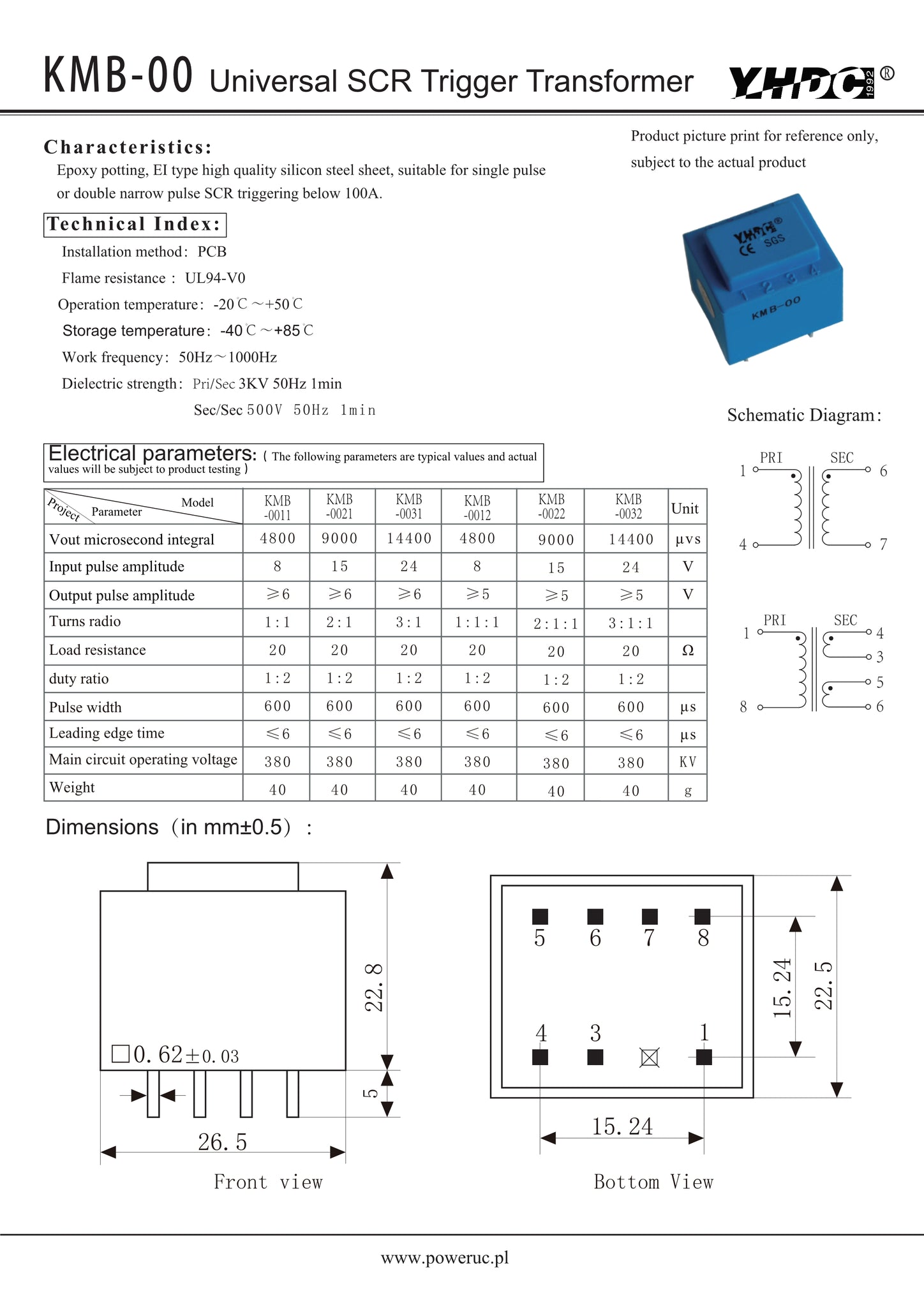

Characteristics:
It uses EI high quality silicon steel sheet.  The installation height is 25.5mm.  Applicable for trigger single or double narrow pulse SCR below 100A.

Technical Indicators:
Installation method: PCB
Flame resistance: UL94-V0
Operating temperature: -20°C ~ +50°C
Storage temperature: -40°C ~ +85°C
Frequency range: 50Hz ~ 1KHz
Dielectric strength: 3KV 50Hz 1min

Electrical Parameters:
