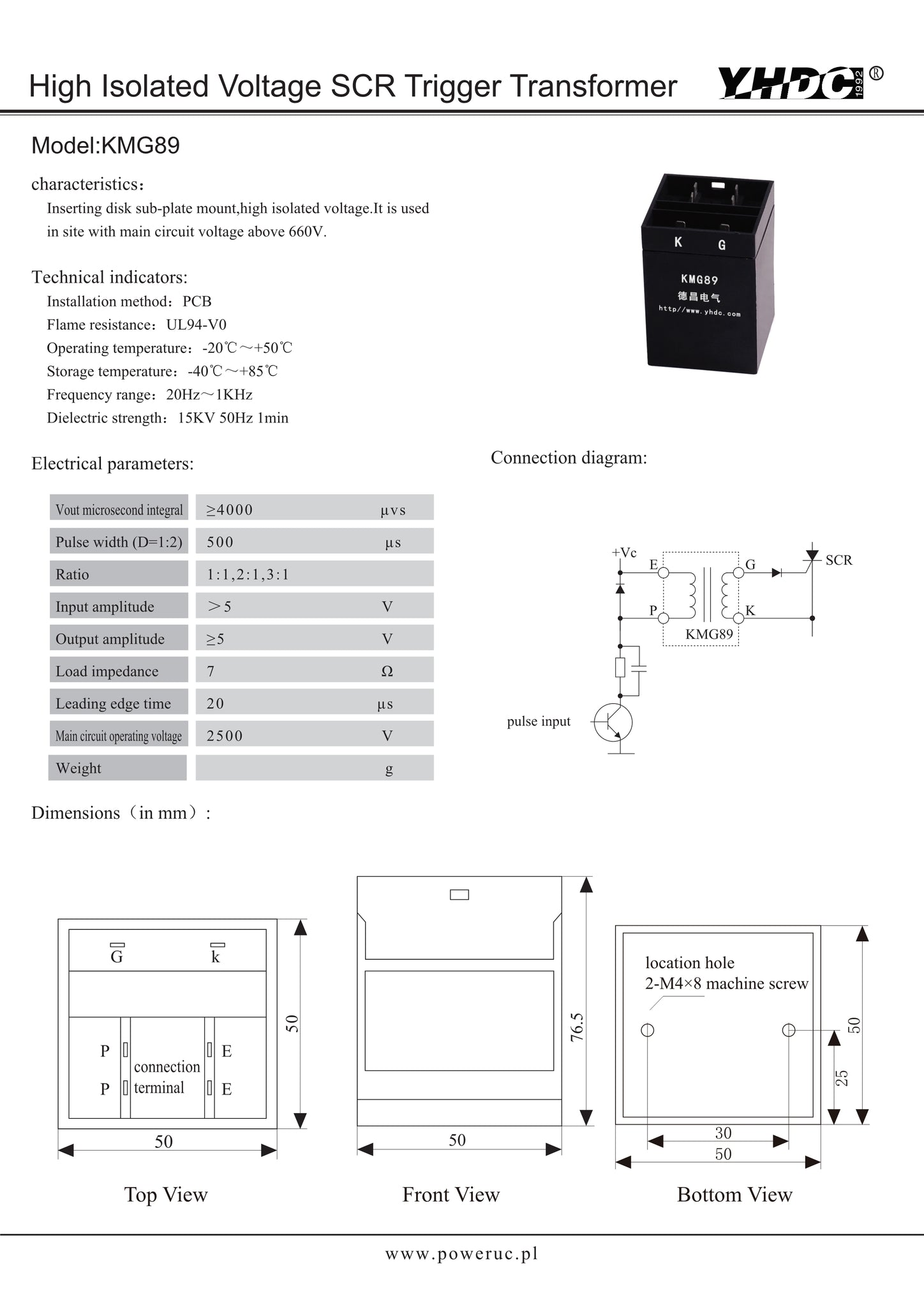

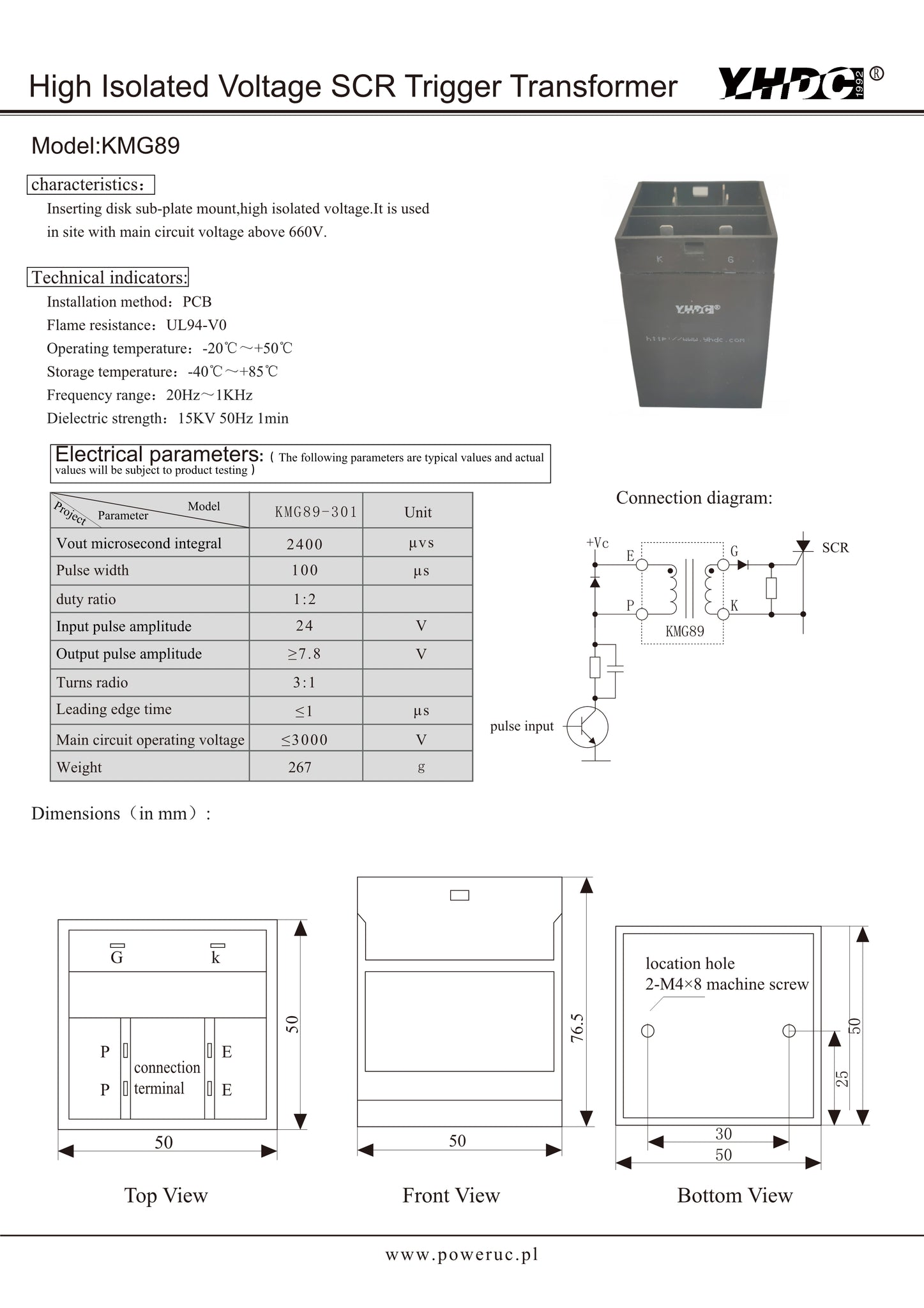

High Isolated Voltage SCR Trigger Transformer KMG89 Vout microsecond integral ≥4000μvs - PowerUC

High Isolated Voltage SCR Trigger Transformer KMG89 Vout microsecond integral 2400μvs

PowerUC

  • €11,82
    Unit price per
Shipping calculated at checkout.

Only 0 left!
Will be in stock after

Characteristics:
Inserting disk sub-plate mount, high isolated voltage.  It is used in site with main circuit voltage above 660V.

Technical Indicators:
Installation method: PCB
Flame resistance: UL94-V0
Operating temperature: -20°C ~ +50°C
Storage temperature: -40°C ~ +85°C
Frequency range: 20Hz ~ 1KHz
Dielectric strength: 15KV 50Hz 1min

Electrical parameters:

DOWNLOAD
