High Isolated Voltage SCR Trigger Transformer KMG208 Vout microsecond integral 4000/8000/12000μvs

PowerUC

Shipping calculated at checkout.
Only 0 left!
Will be in stock after

Characteristics:
High electrical strength,  It applies to SCR or IGBT of rated current above 1000A.  Main circuit maximum operating voltage is 2000V, KMG208 is amorphous core.  Applicable for triggering of SCR over 1000A.

Technical Indicators:
Installation method: PCB
Flame resistance: UL94-V0
Operating temperature: -20°C ~ +50°C
Storage temperature: -40°C ~ +85°C
Frequency range: 20Hz ~ 1KHz
Dielectric strength: 15KV 50Hz 1min

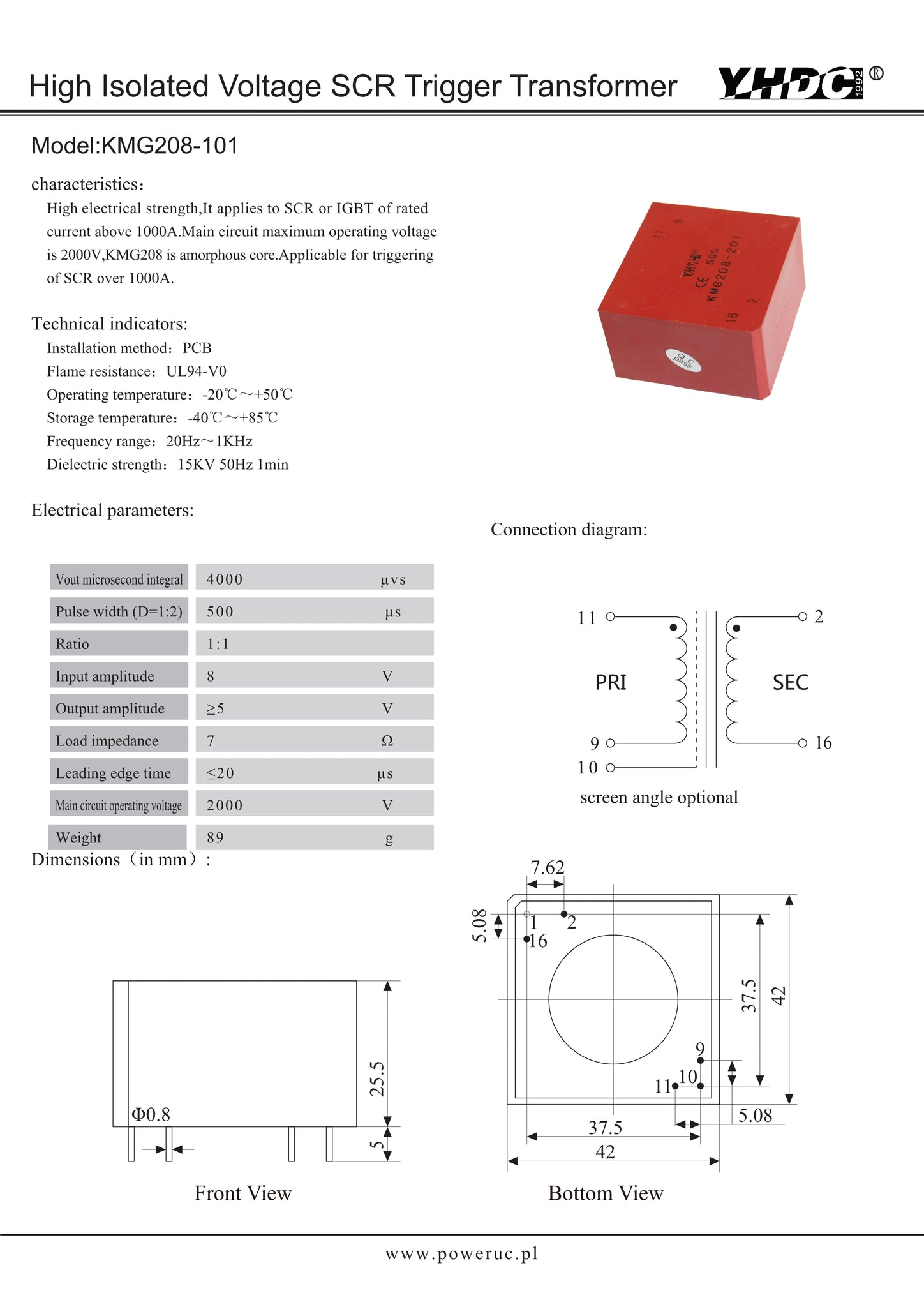

Electrical Parameters:

DOWNLOAD-KMG208-101

DOWNLOAD-KMG208-201

DOWNLOAD-KMG208-301
