Driver Transformer SMD5046 Vout microsecond integral 150μvs Input amplitude 101/201/301/111/211/311

Driver Transformer SMD5046 Vout microsecond integral 150μvs Input amplitude 101/201/301/111/211/311

PowerUC

Shipping calculated at checkout.
Only 0 left!
Will be in stock after

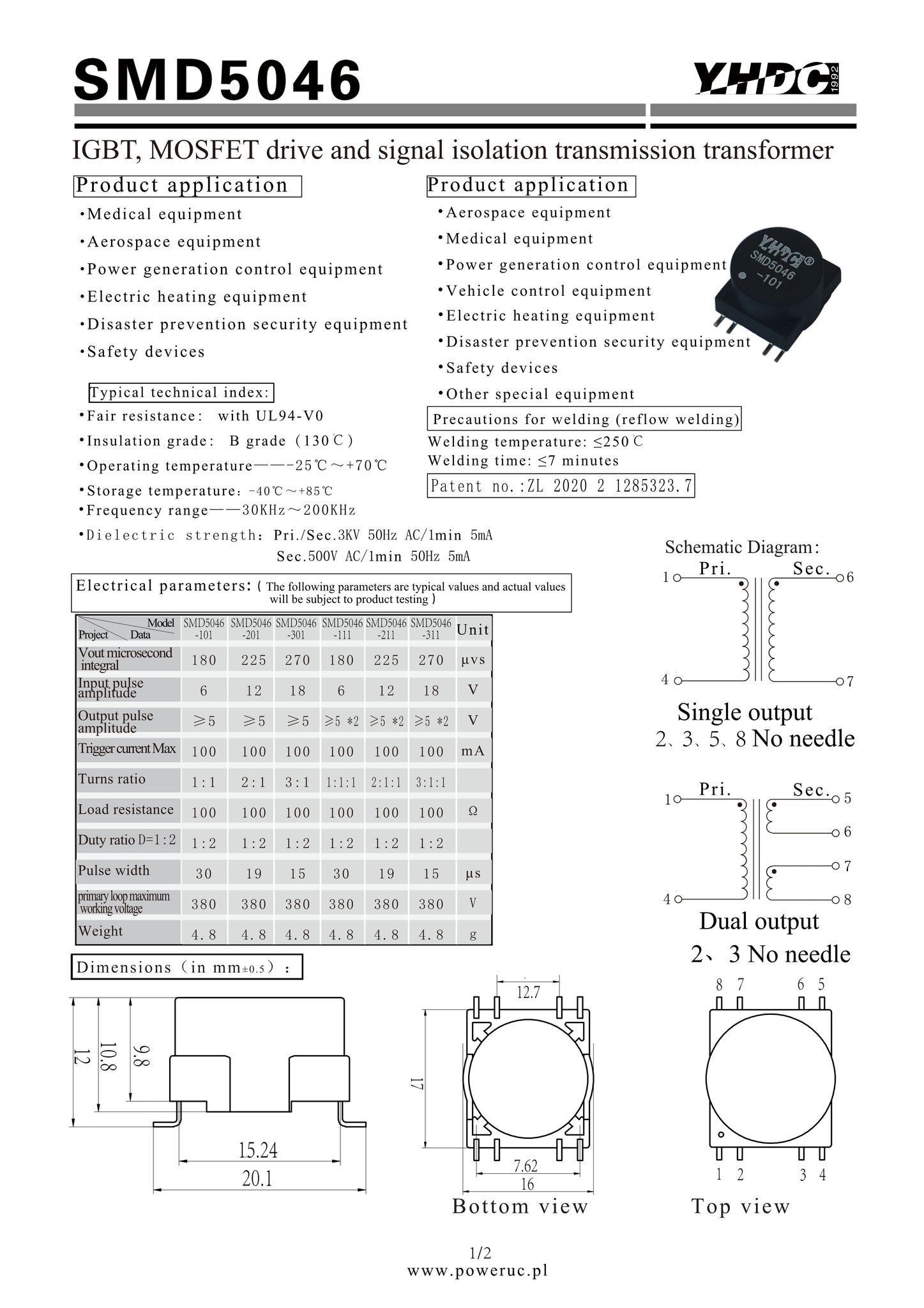

Typical technical index:

Material of core——Ferrite
Insulation grade： B grade（130℃）
Operating temperature——-25℃～+70℃
Frequency range——30KHz～200KHz
Fire resistance： with UL94-V0
Form test：Pri./Sec.3KV AC/1min 5mA （Multiple output：Sec.500V AC/1min 5mA）
(The samples for it is destructive experiment of samples, not recommended for normal use)
Factory test：Pri./Sec.3KV AC/1s 5mA，（Multiple output：Sec.500V AC/1s 5mA）
