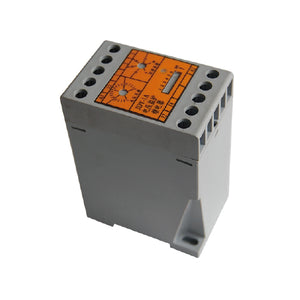

Monitoring relay JDY - PowerUC

Monitoring relay JDY

PowerUC

  • €0,00
    Unit price per
Shipping calculated at checkout.

Only 0 left!
Will be in stock after

Characteristics:
Alarm signal output by relay touching point is completely isolated from detection circuit, especially for high accuracy measured requirement and small error repeated occasions, bus-plate/din-rail mounting type.  For 10-300V AC or DC voltage monitoring alarm..

Safety Index:
Flame resistance: UL94-V0
Dielectric strength: Primary/secondaries/power > 2.5KV AC/1min

Operating Environment:
Environment temperature: -25°C ~ +55°C
Altitude: ≤1000m
Humidity: 85%

Technical Parameters:
Monitor range: 10-300V AC/DC voltage
Monitor signal frequency: 0-400Hz
Working voltage: 220V ±10% 50-60Hz or 24V DC (instructions when order)
Response time: <250mS
Relay touching point: 250V 4A 1 convert
