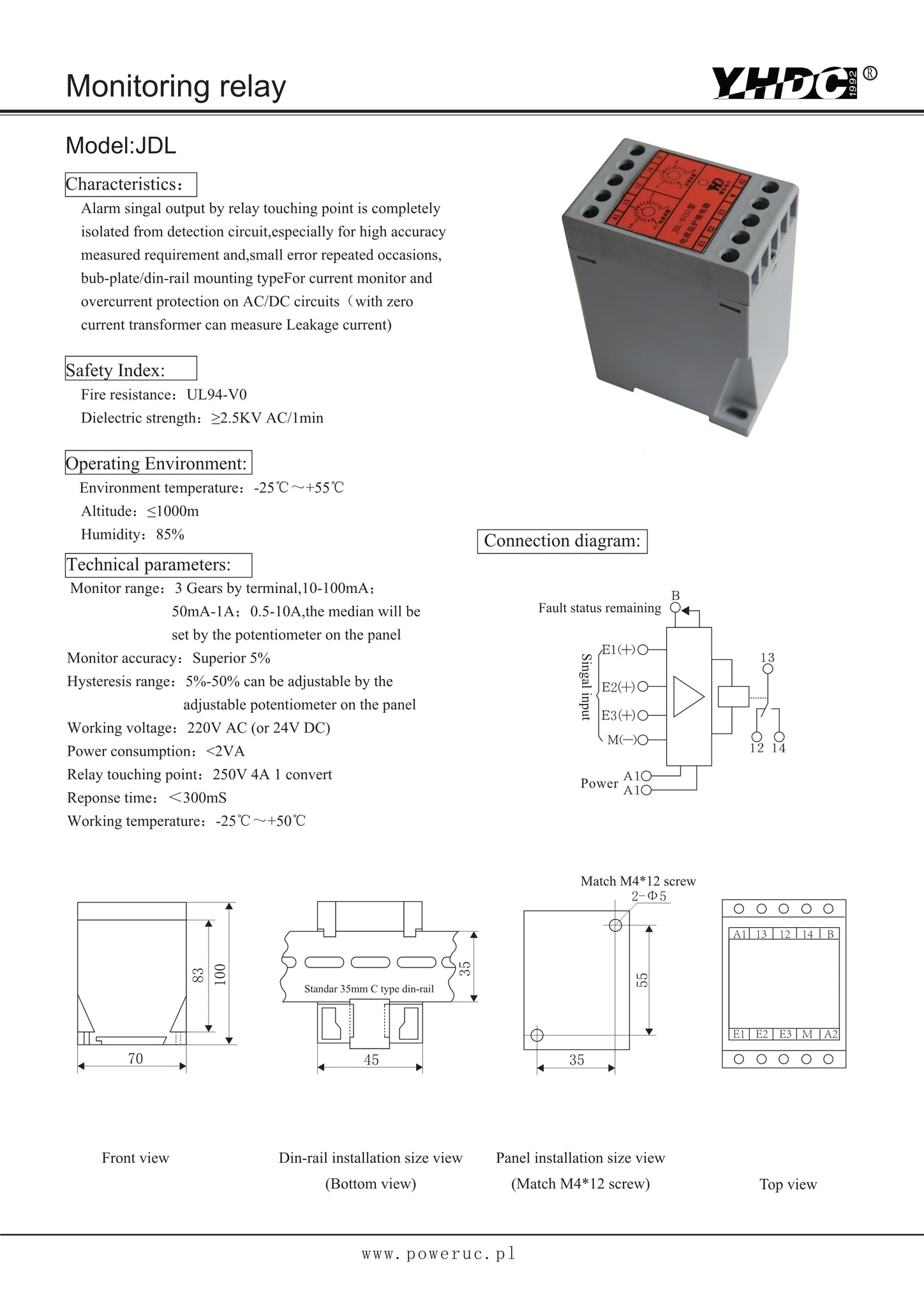

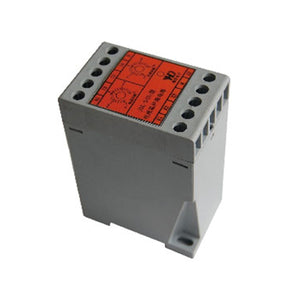

Monitoring relay JDL
Alarm signal output by relay touching point is complete isolated from detection circuit, especially for high accuracy measured requirement and small error repeated occasions, bus-plate/din-rail mounting type. For current monitor and overcurrent protection on AC/DC circuits (with zero current transformer can measure leakage current).
Flame resistance: UL94-V0
Dielectric strength: ≥ 2.5KV AC/1min
Environment temperature: -25°C ~ +55°C
