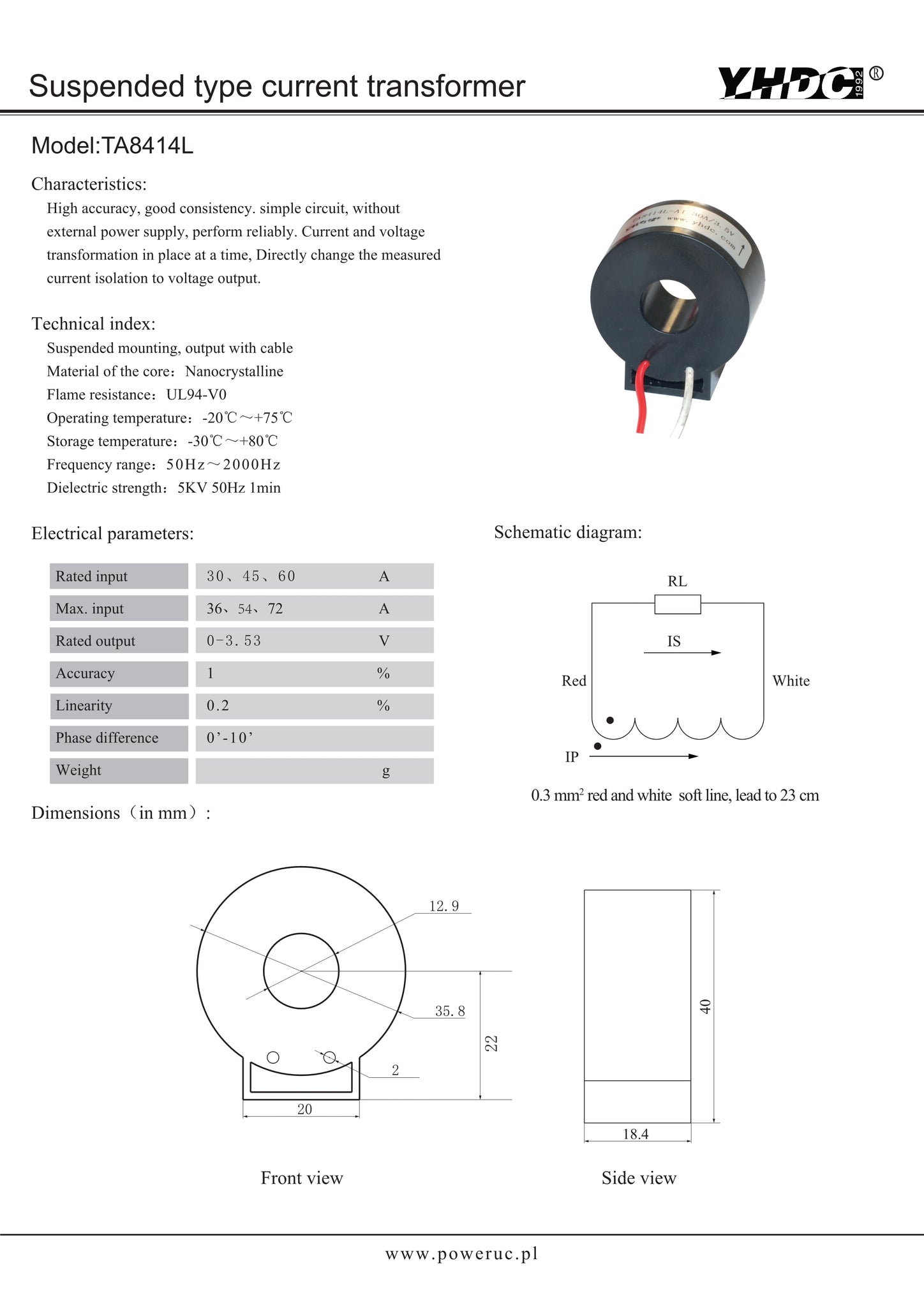

Power unit current transformer TA8414L Rated input 30A 45A 60A Rated output 3.53V - PowerUC

Power unit current transformer TA8414L Rated input 30A 45A 60A 100A Rated output 3.53V 100mA 50mA 33.3mA

PowerUC

  • €2,57
    Unit price per
Shipping calculated at checkout.

Only 0 left!
Will be in stock after

Characteristics:

Suspended mounting, high overload capacity. Electronics and electric power equipment current monitoring, electric control system current signal input, phase loss monitoring, monitoring the motor working status.

    Technical Index:
    Suspended mounting, output with cable
    Material of the core: Nanocrystalline
    Flame resistance: UL94-V0
    Operating temperature: -20°C ~ +70°C
    Storage temperature: -30°C ~ +80°C
    Frequency range: 20Hz ~ 20kHz
    Dielectric strength: 5KV 50Hz 1min

    Electrical Parameters:
