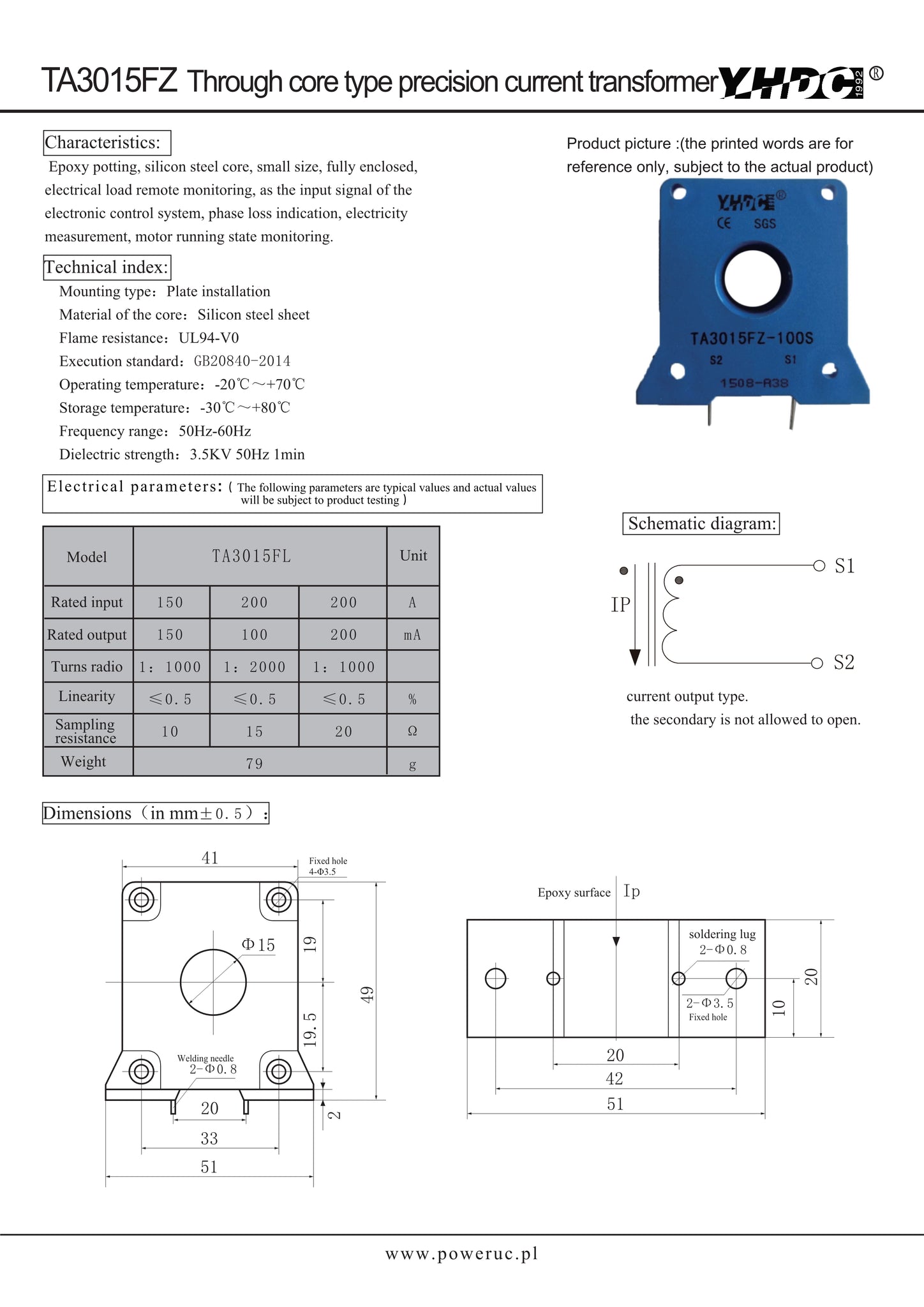

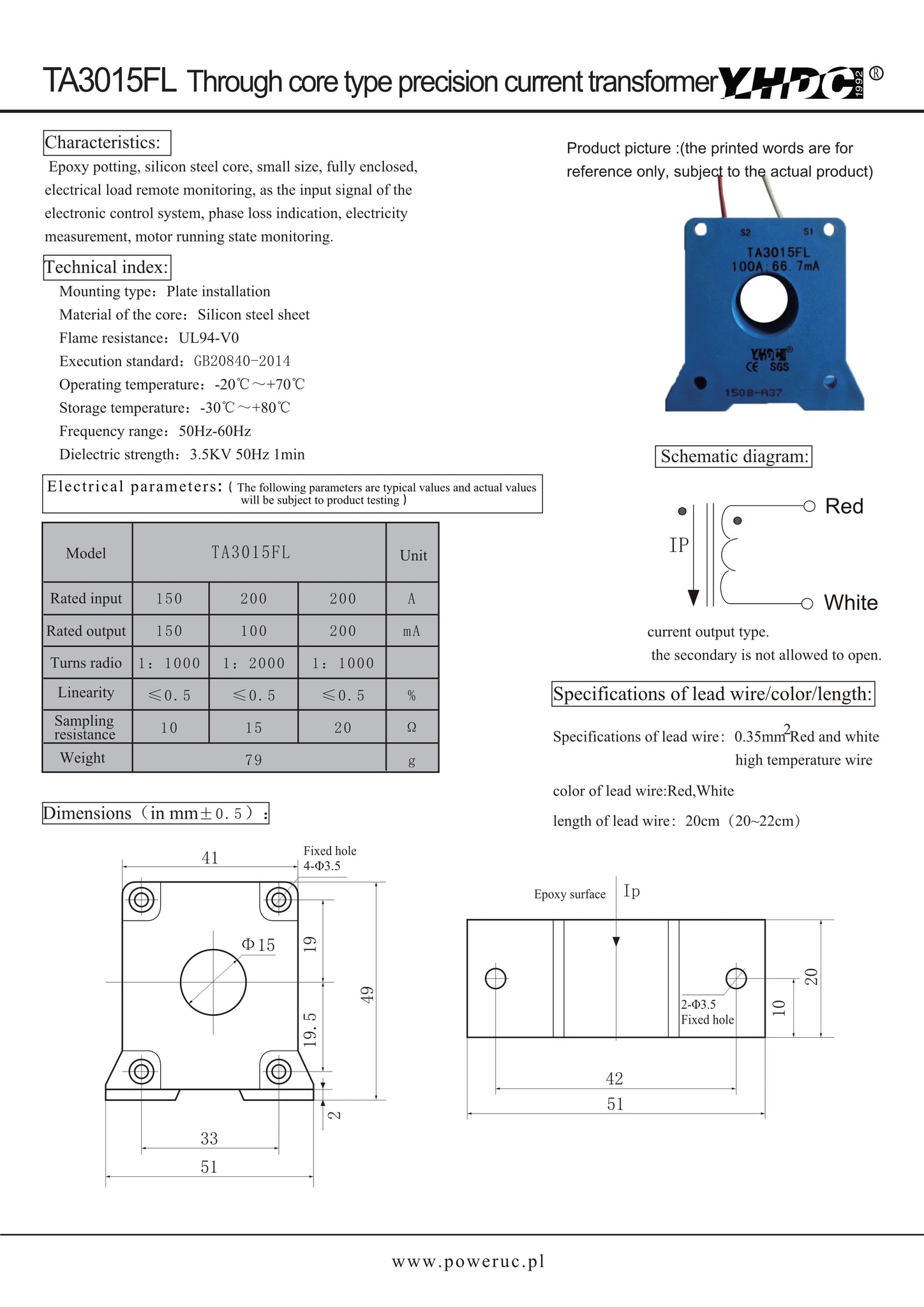

Electronic power general current transformer TA3015FP/FL/FZ - 150A/0.15A 200A/0.1A 300A/0.1A - PowerUC

Electronic power general current transformer TA3015FP/FL/FZ - 150A/0.15A 200A/0.1A 300A/0.1A

PowerUC

Shipping calculated at checkout.
Only 1 left!

Characteristics:
Vacuum epoxy resin encapsulated, silicon steel sheet core, high overload capacity.  Two kinds of mounting modes: horizontal mounting and vertical mounting.  Three types of connection: FP is top soldering piece output type, FL is top leading wire output type, FZ is bottom Ø0.8 welding needle leads that can be welded on the PCB directly.

Technical Index:
Mounting type: Plate type
Material of the core: Silicon steel sheet
Flame resistance: UL94-V0
Execution standard: GB1208-2006
Operating temperature: -35°C ~ +85°C
Storage temperature: -45°C ~ +95°C
Frequency range: 50Hz - 60Hz
Dielectric strength: ≥3.5KV 50Hz 1min

Electrical Parameters:
