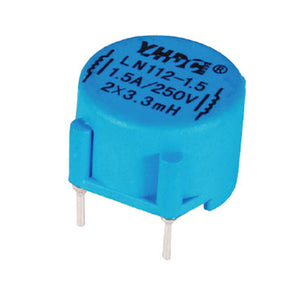

LN series common mode choke LN112 Rated current 0.4~4A 1460~27mΩ
Characteristics:
It is used for switching power supply, suppressing common node interference signal.
Technical Index:
Mounting type: PCB
Flame resistance: UL94-V0
Operating temperature: -20°C ~ +100°C
Storage temperature: -20°C ~ +100°C
Dielectric strength: 1.5KV/1min (between two coils) ; 4KV/1min (between coil & shell)

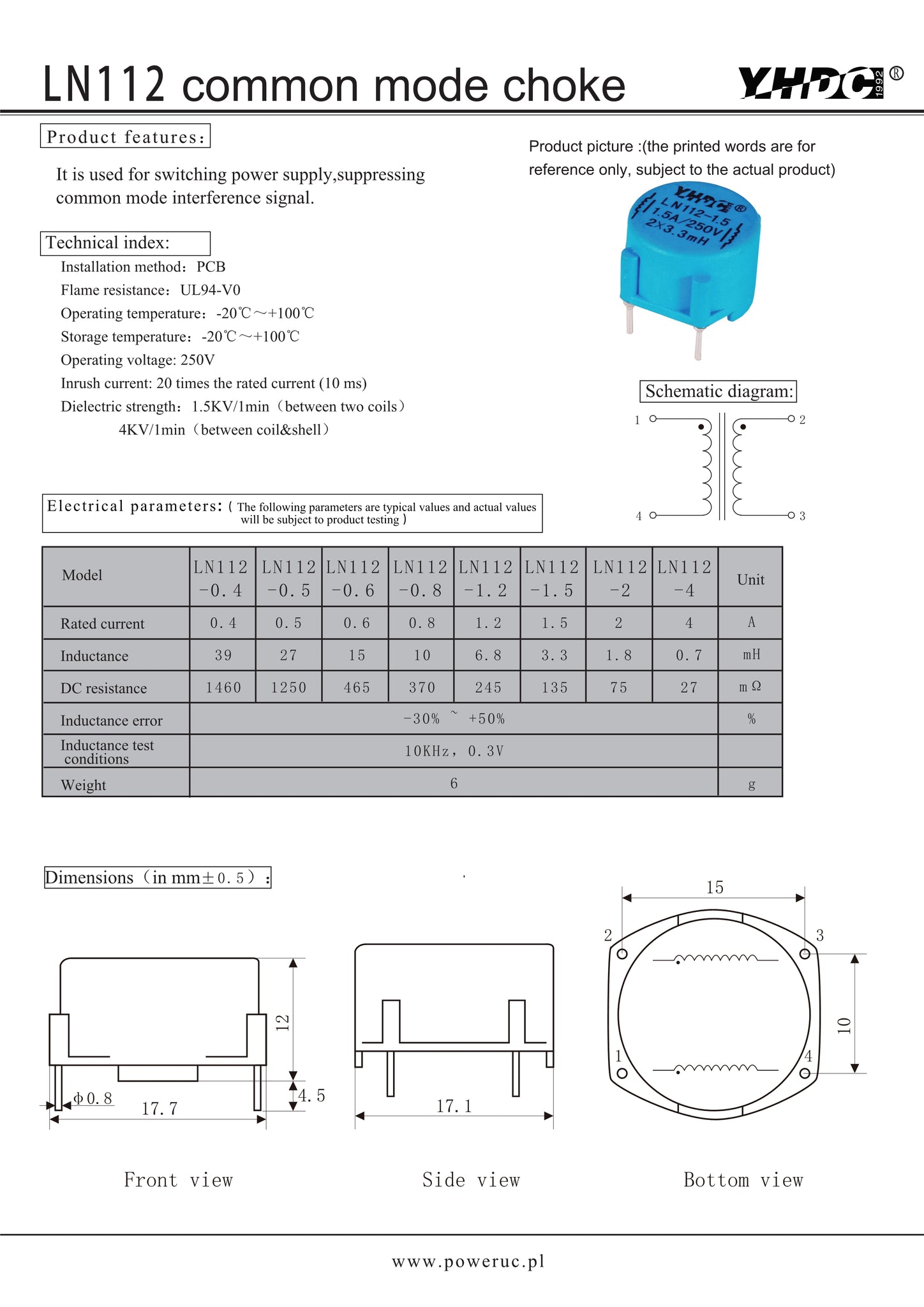

Electrical Parameters:
![](https://cdn.shopifycdn.net/s/files/1/2723/6858/files/LN112_1_1b0003b8-7cd6-4ca9-bfb6-572bd2c1311c_2048x2048.jpg?v=1627271178)
