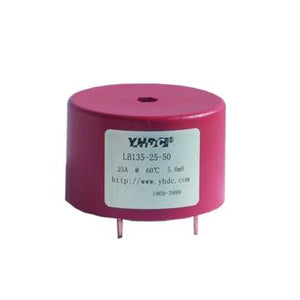

LB3 series common mode choke LB135-25-46W Rated current 25A

LB3 series common mode choke LB135-25-46W Rated current 25A

PowerUC

Shipping calculated at checkout.
Only 0 left!
Will be in stock after

Model:LB135-25-46W

Characteristics:
suppressing common mode interference signal.

Technical Index:

Mounting type：PCB

Fair resistance： with UL94-V0

Operation temperature：-20℃～+70℃

Storage temperature：-20℃～+70℃

Work frequency：50Hz~60Hz

Dielectric strength：2.5KV/1min（Coil）

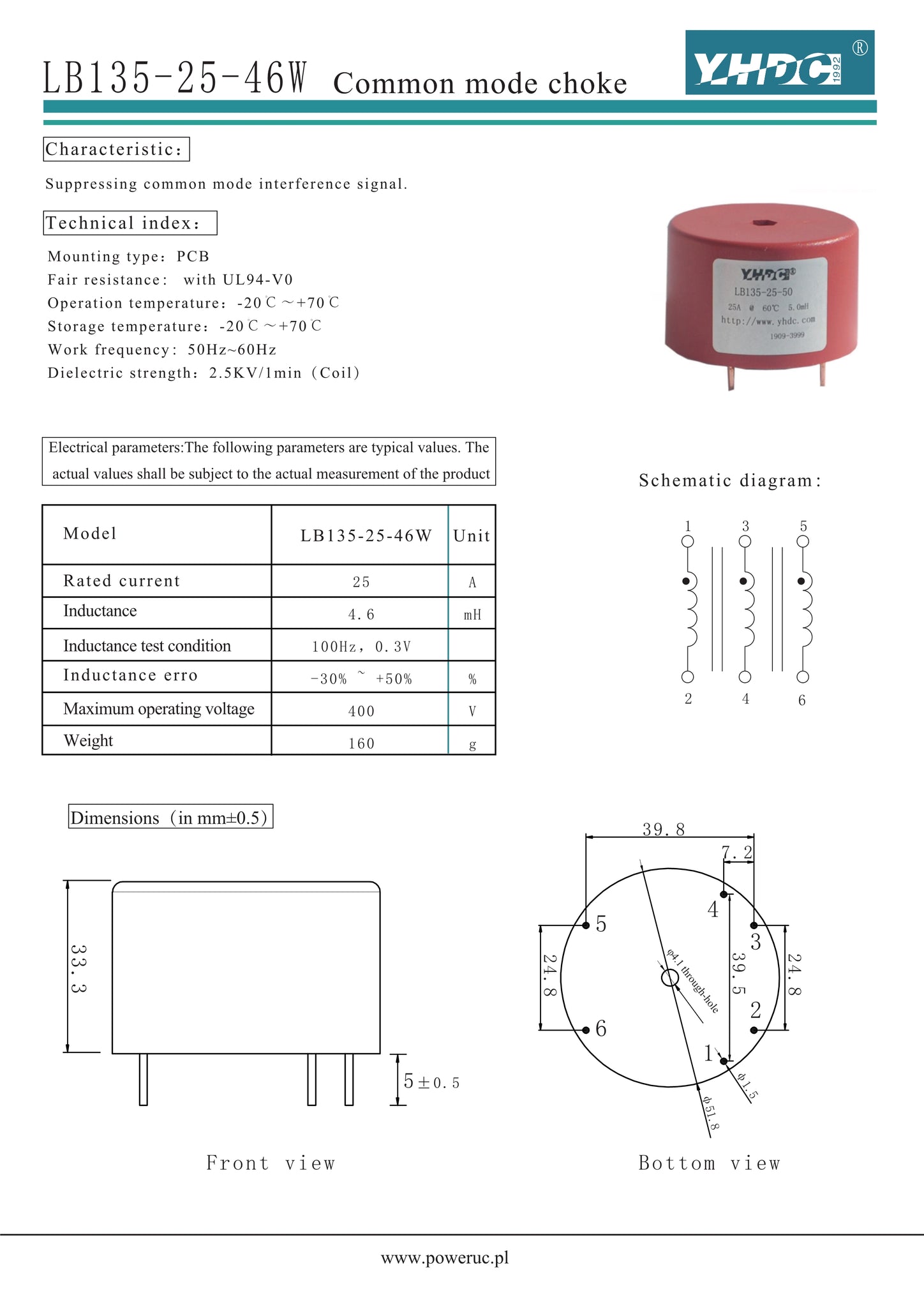

Electrical Parameters:

DOWNLOAD
